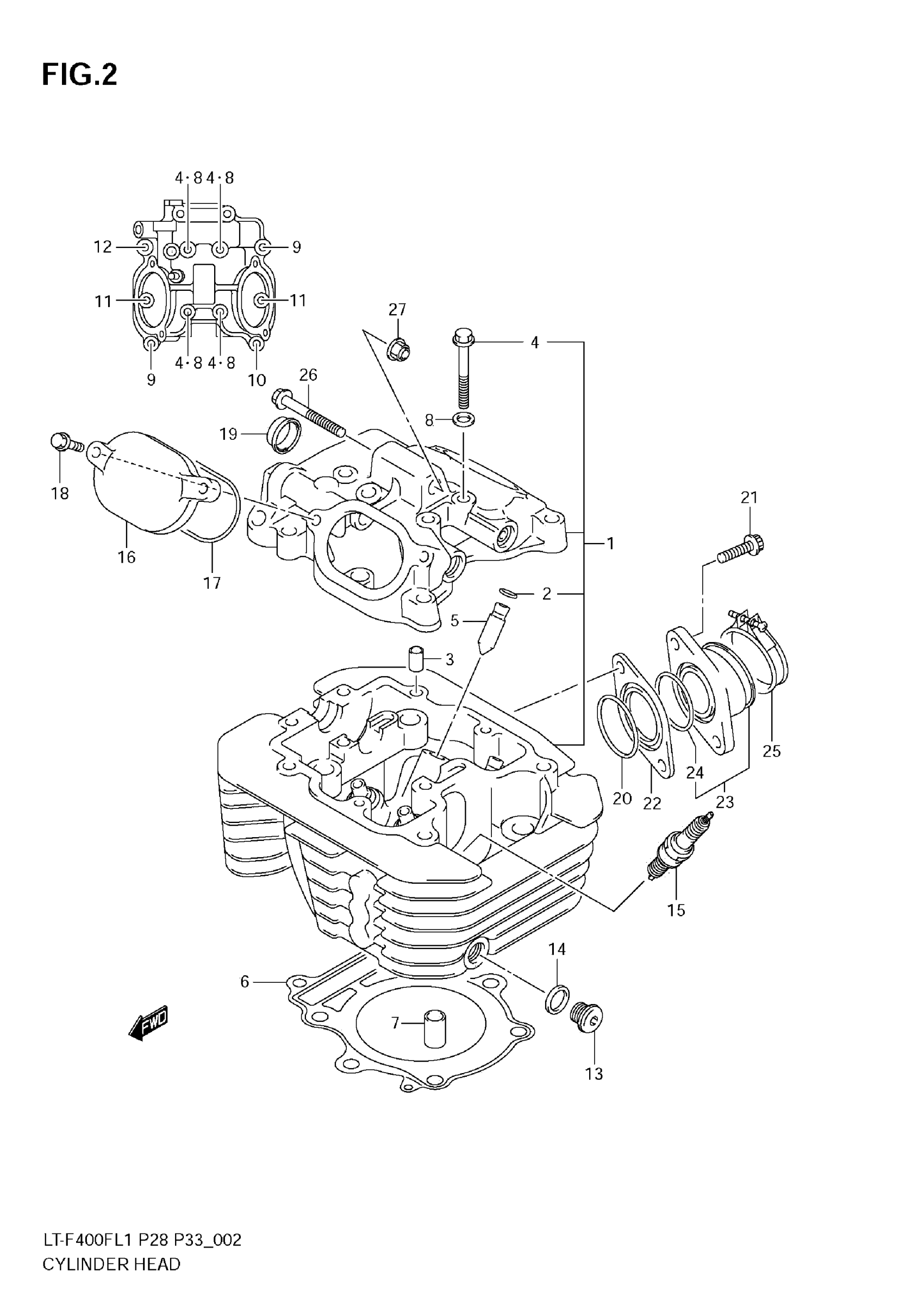

Suzuki LT-F400FL1 (2011) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-27H10

$1,243.93

2

.RING (10X85)

09381-10004

$1.50

3

PIN

09206-08001

$1.78

4

BOLT (6X55)

09103-06102

$2.10

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$39.23

6

GASKET, CYLINDER HEAD

11141-38F00

$35.76

7

PIN

09206-13004

$2.40

8

GASKET (5.8X13X1.2)

09168-06023

$2.35

9

BOLT (6X35)

09103-06108

$2.23

10

BOLT (6X39)

09103-06026

$1.98

11

BOLT

01550-0625A

$1.97

12

BOLT

01550-0630A

$2.32

13

PLUG

09248-12004

$7.95

14

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

15

SPARK PLUG (NGK,CR7E)

09482-00516

$6.47

15

SPARK PLUG (DENSO,U22ESR-N)

09482-00515

$5.97

15

SPARK PLUG (NGK,CR6E) | OPT

09482-00528

$6.47

15

SPARK PLUG (DENSO U20ESR-N) | OPT

09482-00529

$7.27

15

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

15

SPARK PLUG (DENSO U24ESR-N) | OPT

09482-00457

$6.09

16

CAP,INSPECTION

11175-47D00

$24.10

17

.O RING,INSPECTION CAP

11177-14D01

$4.60

18

BOLT

01550-0620A

$1.97

19

PLUG

09241-25007

$6.17

20

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

21

SCREW

07120-0625A

$2.50

22

INSULATOR, INTAKE PIPE This part replaces 13117-38F00.

13117-38F01

$9.24

23

PIPE ASSY,INTAKE This part replaces 13101-27H00.

13101-27H01

$53.92

24

O RING

13118-38F00

$5.67

25

CLAMP

09402-54208

$5.57

26

BOLT (8X60)

09103-08217

$3.72

27

NUT

08319-3108A

$2.32
