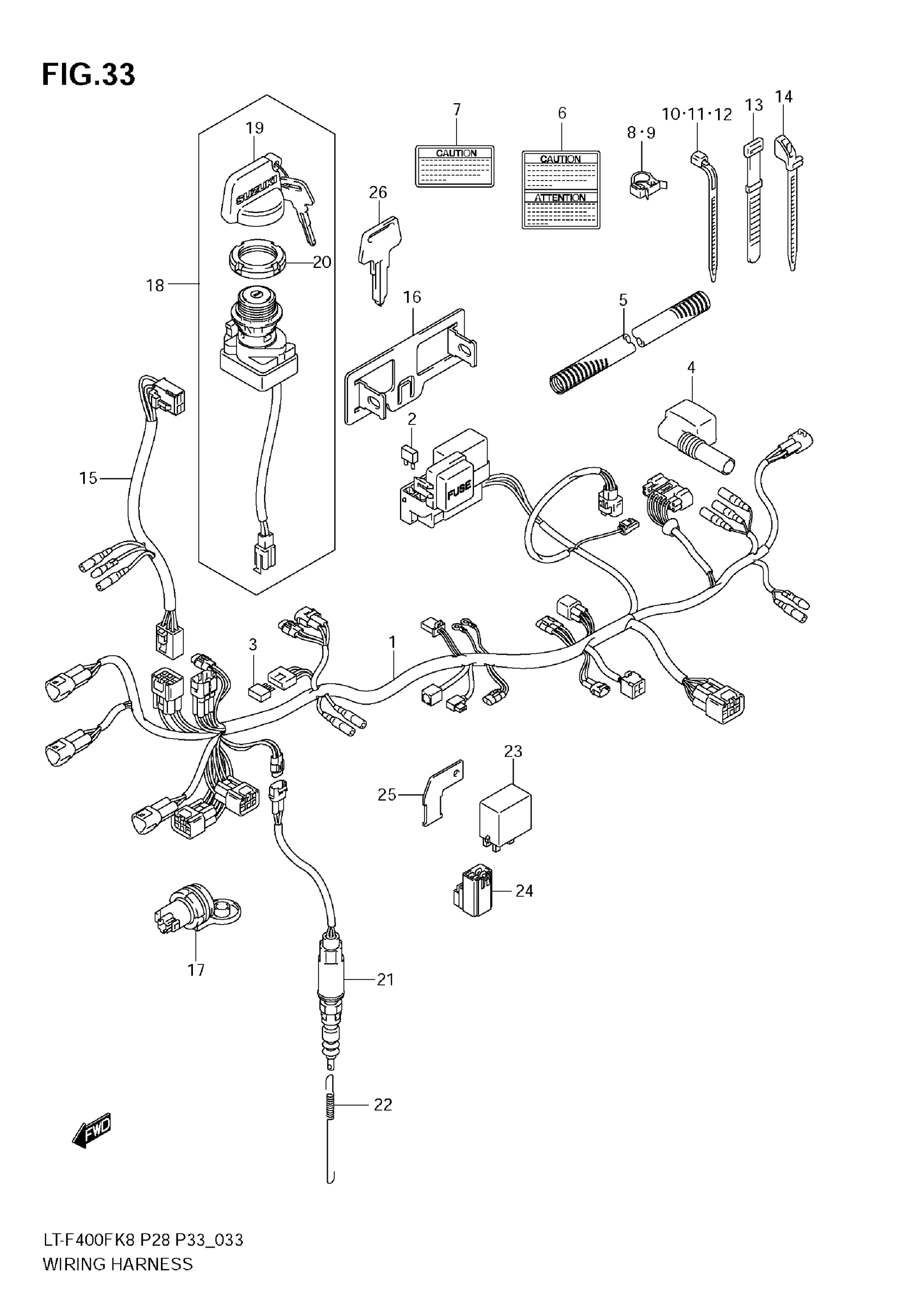

Suzuki LT-F400FK9 (2010) WIRING HARNESS (MODEL K8/K9) Diagram

#

Description
Price

1

HARNESS WIRING

36610-27H50

$409.48

2

FUSE (10A)

09481-10501

$2.06

3

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

4

BOOT, ECU COUPLER

36618-35F00

$10.07

5

GUIDE,WIRING HARNESS

36619-27H00

Unavailable

6

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

7

LABEL, CAUTION MAX AMP | E33

38852-09F30

Unavailable

8

CLAMP (D:20)

09403-20403

$3.58

9

CLAMP (D:25)

09403-25401

Unavailable

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:165)

09407-18402

$2.19

12

CLAMP (L:235)

09407-25401

$4.66

13

CLAMP (L:120)

09407-12402

$3.04

14

CLAMP

09407-12407

Unavailable

15

WIRE, FRONT BRAKE SW

36855-27H00

$49.22

16

BRACKET,FUSE BOX

36744-38F00

$11.37

17

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

18

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$82.20

19

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

20

.NUT,IGNITION SWITCH

37112-24500

$11.48

21

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

22

SPRING, STOP LAMP

09443-06016

$3.30

23

RELAY,NEUTRAL START

38730-09F00

$46.55

24

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

25

BRACKET, GEAR IN START

38741-09F00

Unavailable

26

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

26

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

26

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

26

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
