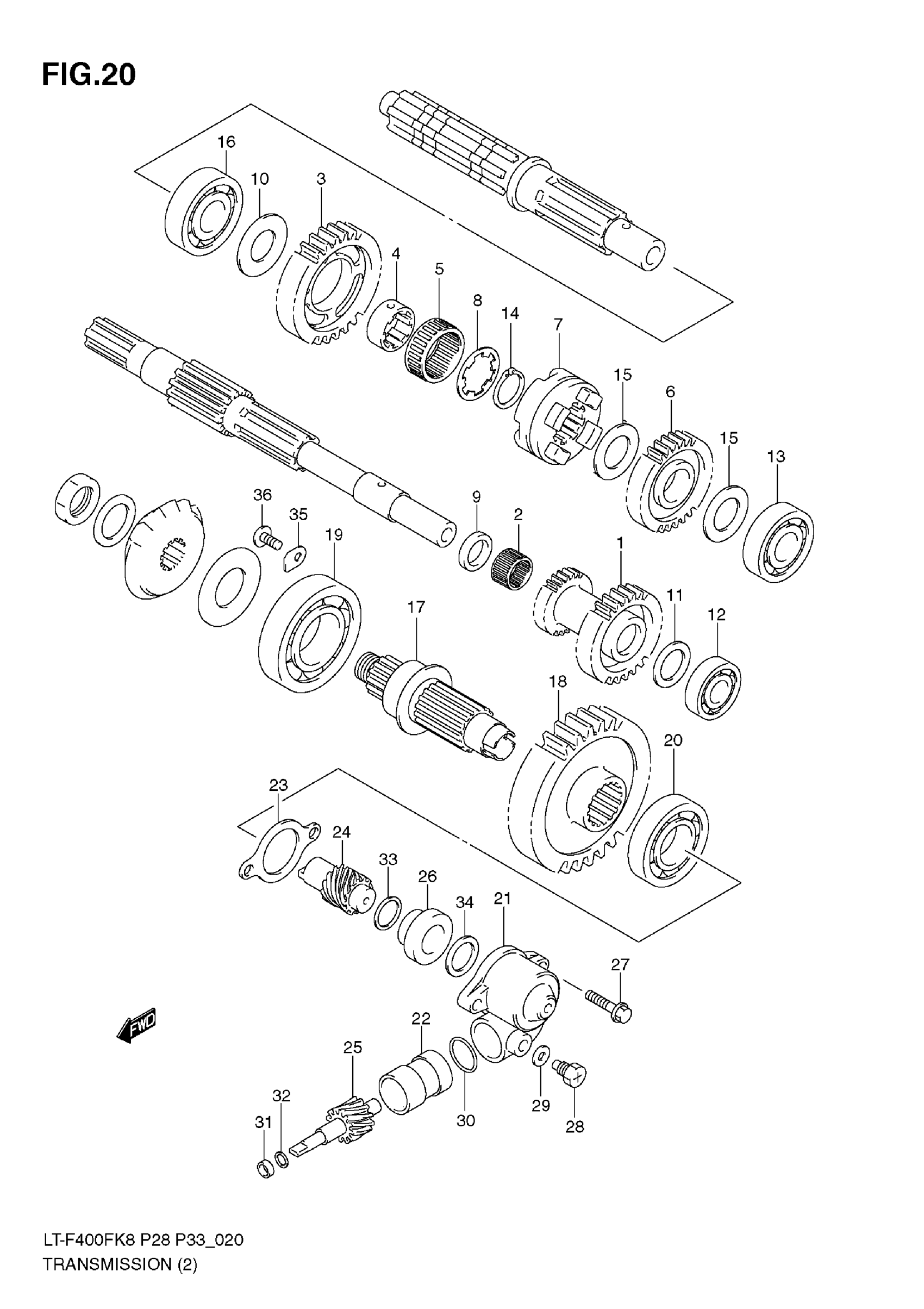

Suzuki LT-F400FK9 (2010) TRANSMISSION (2)(MODEL K8/K9) Diagram

#

Description
Price

1

GEAR, SUB T/M IDLE | NT:19/13

29150-38F80

$210.63

2

BEARING, SUB T/M IDLE GEAR, R | 17X21X12.8

09263-17001

$23.70

3

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-38F80

Unavailable

4

BUSH,SUB T/M DRIVE NO.1 GEAR

29215-38F80

$36.98

5

BEARING, SUB T/M DRIVE NO.1 GEAR | 30X35X16

09263-30056

$37.13

6

GEAR, SUB T/M DRIVE NO.2 | NT:21

29220-38F50

$145.27

7

DOG,SUB T/M SELECT SLIDING

29231-38F80

Unavailable

8

WASHER, SUB T/M DRIVE, L

09167-25017

$4.20

9

WASHER, SUB T/M IDLE, R | 17X24X4.5

09180-17076

$10.42

10

WASHER, SUB T/M DRIVE | 25X40X1

09181-25251

$1.26

11

WASHER, SUB T/M IDLE, LH | 15X26X1.0

09181-15195

$2.59

12

BEARING | 15X42X13.0 This part replaces 09262-15022.

09262-15062

$19.90

13

BEARING, DRIVE SHAFT, LH | 20X47X14.0

09262-20139

$48.87

14

SNAP RING

09380-25003

$2.80

15

WASHER, DR NO.2 RH/LH

08211-20301

$2.97

16

BEARING, MIDDLE (25X52X14)

09262-25124

$35.35

17

SHAFT, SUB T/M OUTPUT

29121-38F51

Unavailable

18

GEAR, SUB T/M DRIVEN | NT:35

29311-38F51

Unavailable

19

BEARING, SUB T/M, RH | 35X72X17.0

09262-35038

$42.19

20

BEARING, SUB T/M, LH | 20X52X15.0

09262-20073

$21.00

21

HOUSING, ODOMETER GEAR

26441-19B01

$71.65

22

SLEEVE

26442-19B00

$45.52

23

GASKET, ODOMETER

26451-19B12

$4.32

24

GEAR, ODOMETER DRIVE

26461-44D00

Unavailable

25

GEAR, ODOMETER DRIVEN

26471-44D00

Unavailable

26

SPACER, ODOMETER DRIVE GEAR

26481-19B00

Unavailable

27

BOLT, GEAR SLEEVE (6X20)

09103-06201

$2.54

28

BOLT, GEAR (6X10)

09135-06501

$2.80

29

WASHER (6.2X11X1.2)

09168-06004

$1.43

30

O RING (ID:16.6,DD:1.9)

09280-17004

$3.98

31

SEAL, ODOMETER (5X12X8)

09283-05001

$12.58

32

WASHER

08211-08151

$1.42

33

WASHER

08211-15201

$2.58

34

WASHER

08211-17241

$2.53

35

RETAINER, SEC DRIVE SFT

24741-21A00

$2.80

36

SCREW (6X12)

09125-06110

$2.13
