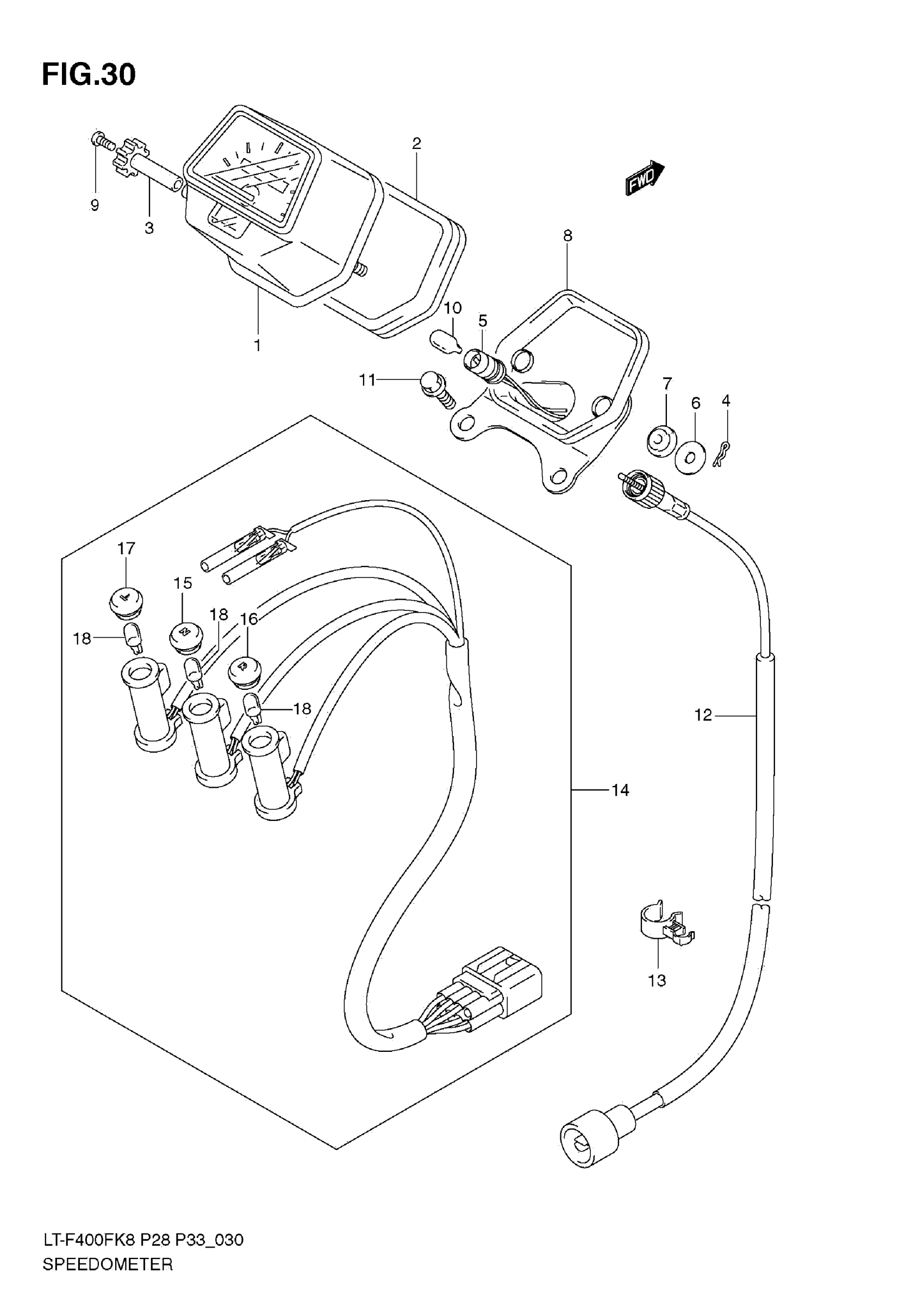

Suzuki LT-F400FK9 (2010) SPEEDOMETER (MODEL K8/K9) Diagram

#

Description
Price

1

SPEEDOMTR ASSY( This part replaces 34110-38F50.

34100-38F50

Unavailable

2

DAMPER

34114-38F40

$84.98

3

KNOB

34124-38F40

$9.03

4

SNAP PIN

34136-38F40

$62.72

5

CORD ASSY

34173-38F40

Unavailable

6

WASHER (5.2X18X1.2) This part replaces 34181-38F40.

34181-09F00

$2.87

7

DAMPER

34188-38F40

Unavailable

8

BRACKET ASSY

34950-38F40

$96.48

9

SCREW (2X6)

09139-02003

$1.65

10

BULB (12V,1.7W)

09471-12165

$3.51

11

BOLT, SPEEDOMETER

01550-0616A

$1.97

12

CABLE ASSY,SPEE This part replaces 34910-38F00.

34910-38F02

$50.35

13

CLIP

09408-00198

Unavailable

14

LAMP ASSY, PILOT

36380-27H00

$35.63

15

LENS, NEUTRAL (GREEN)

36321-45G00

$10.10

16

LENS, REVERSE (RED)

36329-27H00

$26.43

17

LENS, OIL TEMP (RED)

36361-27H00

$27.37

18

BULB (12V3.4W)

09471-12028

$1.99
