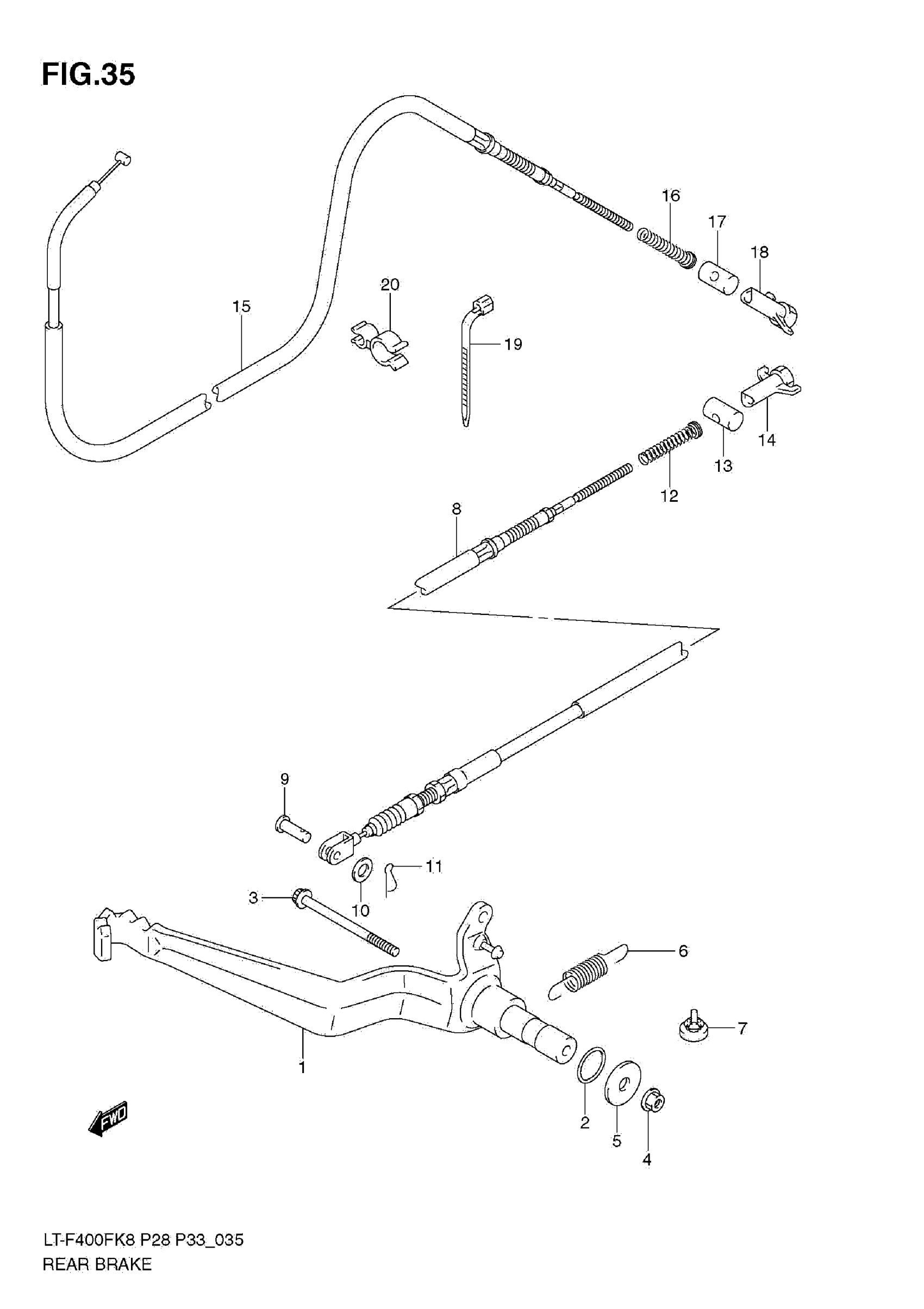

Suzuki LT-F400FK9 (2010) REAR BRAKE Diagram

#

Description
Price

1

PEDAL,BRAKE

43110-27H00

$65.80

2

O RING

09280-17002

$4.62

3

BOLT

01550-0685A

Unavailable

4

NUT

08319-3106A

$2.01

5

WASHER

09160-06136

$1.83

6

SPRING

09443-12019

$4.07

7

CUSHION This part replaces 09321-08022.

09321-08026

$0.74

8

CABLE, REAR BRAKE | LT-F400FK8/FK9/FUL0

58510-27H00

$55.78

8

CABLE, REAR BRAKE | LT-F400FL0

58510-27H00

$55.78

9

PIN

09200-05001

$1.52

10

WASHER

08322-0106B

$2.24

11

PIN, COTTER

09385-06012

$1.89

12

SPRING

09440-08042

$2.80

13

PIN, ADJUSTER

09209-13006

$4.73

14

NUT

09150-06015

$3.26

15

CABLE, PARKING BRAKE | LT-F400FK8/FK9/FUL0

58810-27H00

$92.13

15

CABLE,PARKING BRAKE | LT-F400FL0 This part replaces 58810-27H10.

58810-27H11

$65.23

16

SPRING

09440-08042

$2.80

17

PIN, ADJUSTER

09209-13006

$4.73

18

NUT

09150-06015

$3.26

19

CLAMP

09407-14403

$2.24

20

CLIP

09408-00056

$3.37
