2010 Suzuki LT-F400FK9 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2010 Suzuki LT-F400FK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

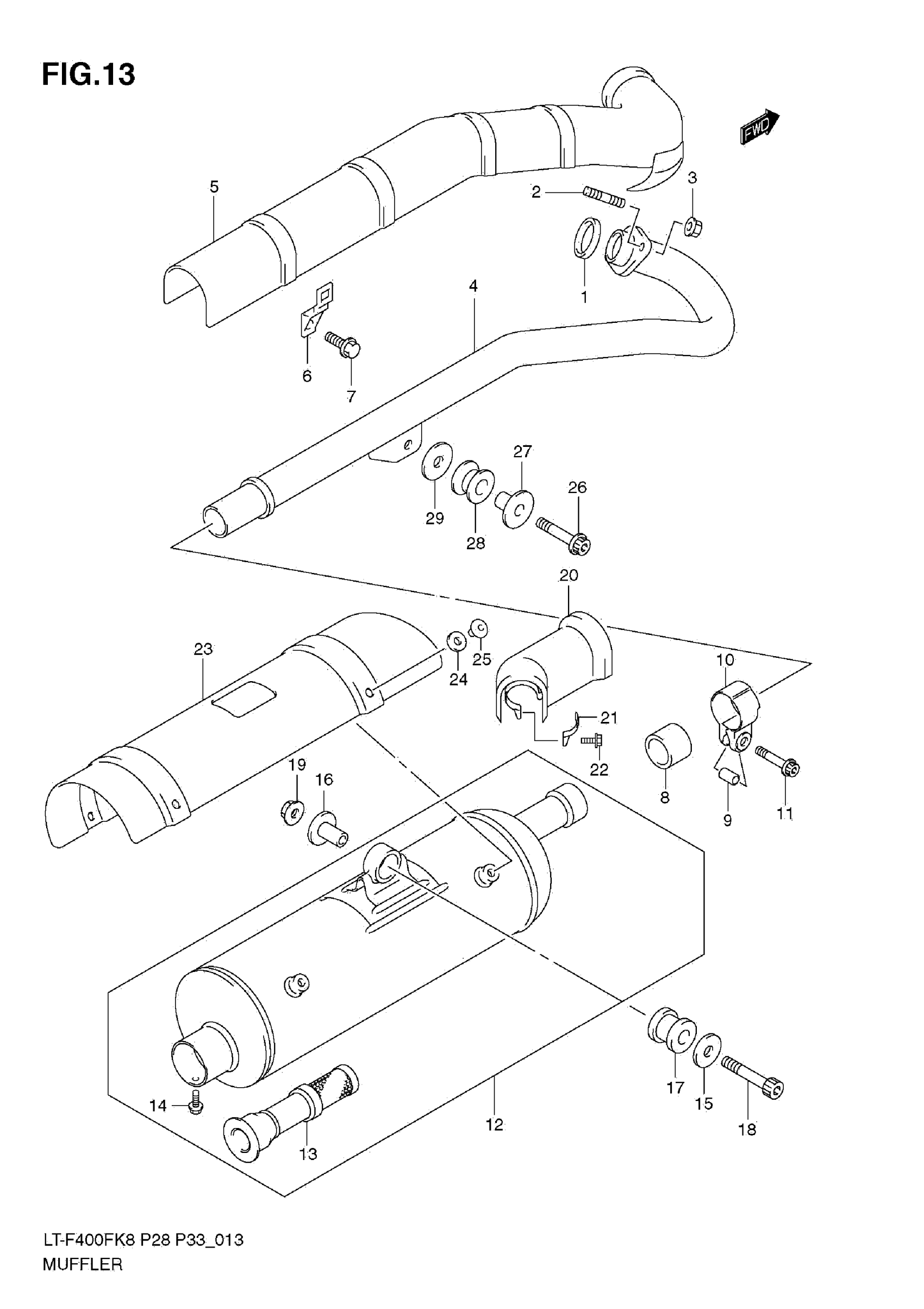

2010 Suzuki LT-F400FK9 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.GASKET,EXHAUST

14181-18C00

1
Out of stock

2

BOLT,STUD

01421-0825A

2
Out of stock

3

NUT

08319-3108A

2
Out of stock

4

PIPE, EXHAUST | LT-F400FK8/FK9/FUL0

14150-38F10

1
Out of stock

4

PIPE,EXH | LT-F400FL0

14150-27H00

1
Out of stock

5

COVER, EXHAUST PIPE, FRONT | LT-F400FK8/FK9/FUL0

14180-38F40

1
Out of stock

5

COVER, EXHAUST PIPE, FRONT | LT-F400FL0

14180-38F50

1
Out of stock

6

CLAMP,EXH PIPE COVER

14185-38F10

3
Out of stock

7

BOLT

01550-0612A

3
Out of stock

8

CONNECTOR, MUFFLER

14771-38F00

1
Out of stock

9

SPACER

14458-45G01

1
Out of stock

10

CLAMP, CONNECTOR

14459-38F10

1
Out of stock

11

BOLT

07120-0840B

1
Out of stock

12

BODY, MUFFLER | LT-F400FK8/FK9/FUL0 This part replaces 14310-38F21.

14310-38F30

1
Out of stock

12

BODY, MUFFLER | LT-F400FL0

14310-38F30

1
Out of stock

13

ARRESTER | LT-F400FK8/FK9/FUL0

14850-38F20

1
Out of stock

13

ARRESTER | LT-F400FL0

14850-38F30

1
Out of stock

14

.BOLT

07120-0508B

1
Out of stock

15

WASHER, MUFFLER SUPPORT

09160-08503

2
Out of stock

16

SPACER, MUFFLER SUPPORT

09180-08152

2
Out of stock

17

CUSHION, MUFFLER SUPPORT

09320-12082

2
Out of stock

18

BOLT, MUFFLER SUPPORT

07130-0845B

2
Out of stock

19

NUT, MUFFLER SUPPORT

08319-3108A

2
Out of stock

20

COVER,MUF FR

14790-27H00

1
Out of stock

21

CLAMP,EXH PIPE COVER

14185-38F10

1
Out of stock

22

BOLT, CLAMP

01550-0612A

2
Out of stock

23

COVER,MUF RR

14880-38F10

1
Out of stock

24

GASKET, MUFFLER COVER

09168-06120

4
Out of stock

25

SCREW, MUFFLER COVER

09139-06076

4
Out of stock

26

BOLT, EXHAUST SUPPORT

09106-08133

1
Out of stock

27

SPACER, EXHAUST SUPPORT

09180-08151

1
Out of stock

28

CUSHION, EXHAUST SUPPORT

09320-12043

1
Out of stock

29

WASHER, EXHAUST SUPPORT

09160-08135

1
Out of stock
