2010 Suzuki LT-F400FK9 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2010 Suzuki LT-F400FK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

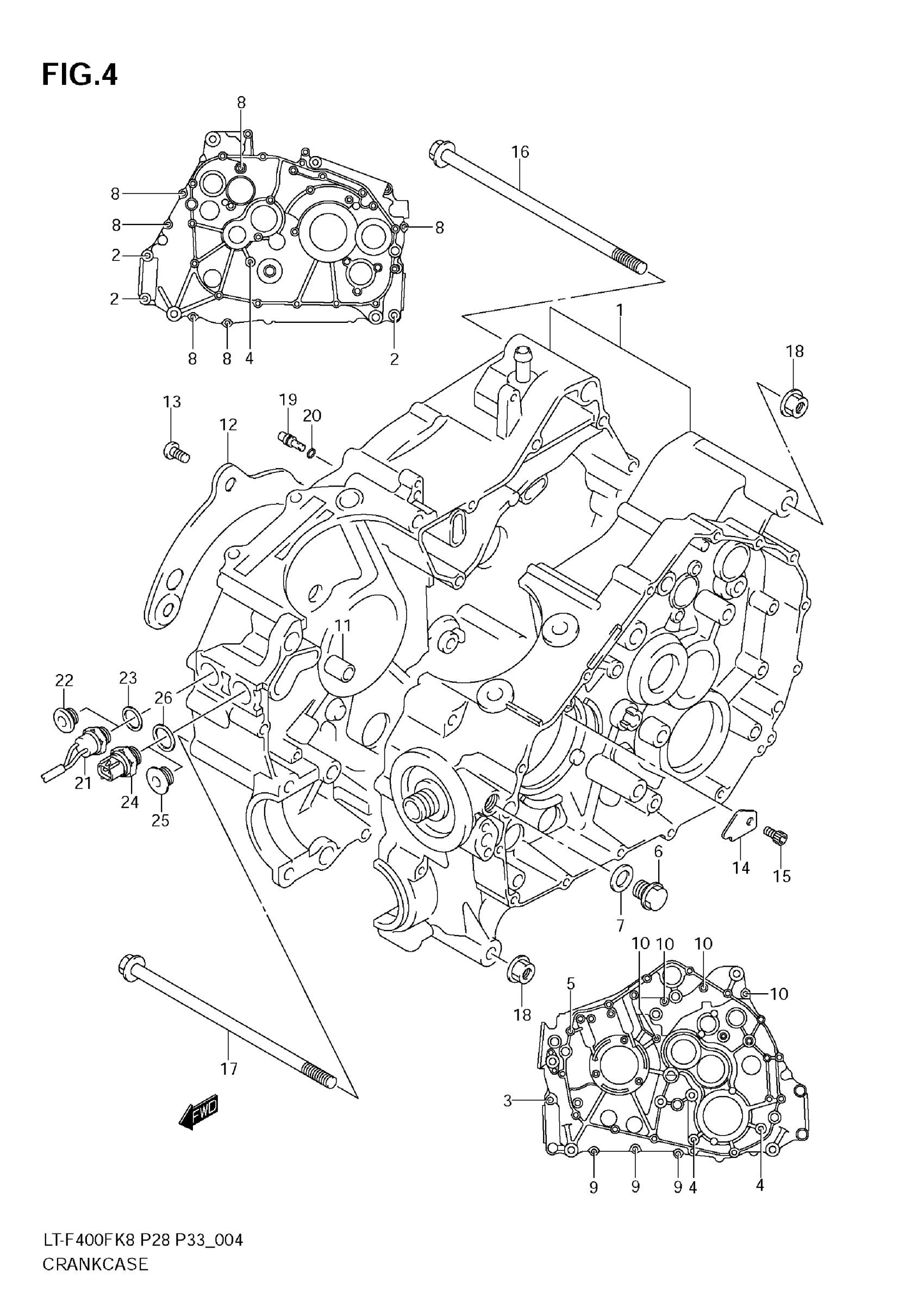

2010 Suzuki LT-F400FK9 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11302-38852

1
Out of stock

2

BOLT (8X50)

09103-08081

3
Out of stock

3

BOLT (8X50)

09103-08081

1
Out of stock

4

BOLT (8X85)

09103-08300

3
Out of stock

5

BOLT (8X60)

09103-08217

1
Out of stock

6

PLUG, OIL PRESSURE

09247-14015

1
Out of stock

7

GASKET, OIL PRESSURE PLUG

09168-14002

1
Out of stock

8

BOLT

01547-0645B

5
Out of stock

9

BOLT

01547-0645B

3
Out of stock

10

BOLT

01547-0670B

4
Out of stock

11

PIN, CRANKCASE

04211-13189

2
Out of stock

12

PLATE,OIL GUIDE

11317-38F10

1
Out of stock

13

SCREW, OIL GUIDE PLATE

02112-0612B

3
Out of stock

14

PLATE,OIL GUIDE,L

11323-38F00

1
Out of stock

15

BOLT, OIL GUIDE PLATE LH

02112-0612B

1
Out of stock

16

BOLT (10X195)

09103-10118

1
Out of stock

17

BOLT (10X180)

11611-03G00

2
Out of stock

18

NUT

09159-10115

3
Out of stock

19

JET, OIL GALLERY MISSION

09493-32006

1
Out of stock

20

O RING, OIL GALLERY MISSION JET

09280-04004

1
Out of stock

21

SWITCH, COOLING FAN | LT-F400FK8/FK9/FUL0

17680-19B70

1
Out of stock

22

PLUG (16X8) | LT-F400FL0

09248-16012

1
Out of stock

23

GASKET

09168-16002

1
Out of stock

24

SWITCH,OIL LAMP | LT-F400FK8/FK9/FUL0 This part replaces 17680-39D10.

17680-39D11

1
Out of stock

25

PLUG (18X8) | LT-F400FL0

09248-18011

1
Out of stock

26

GASKET

09168-18009

1
Out of stock
