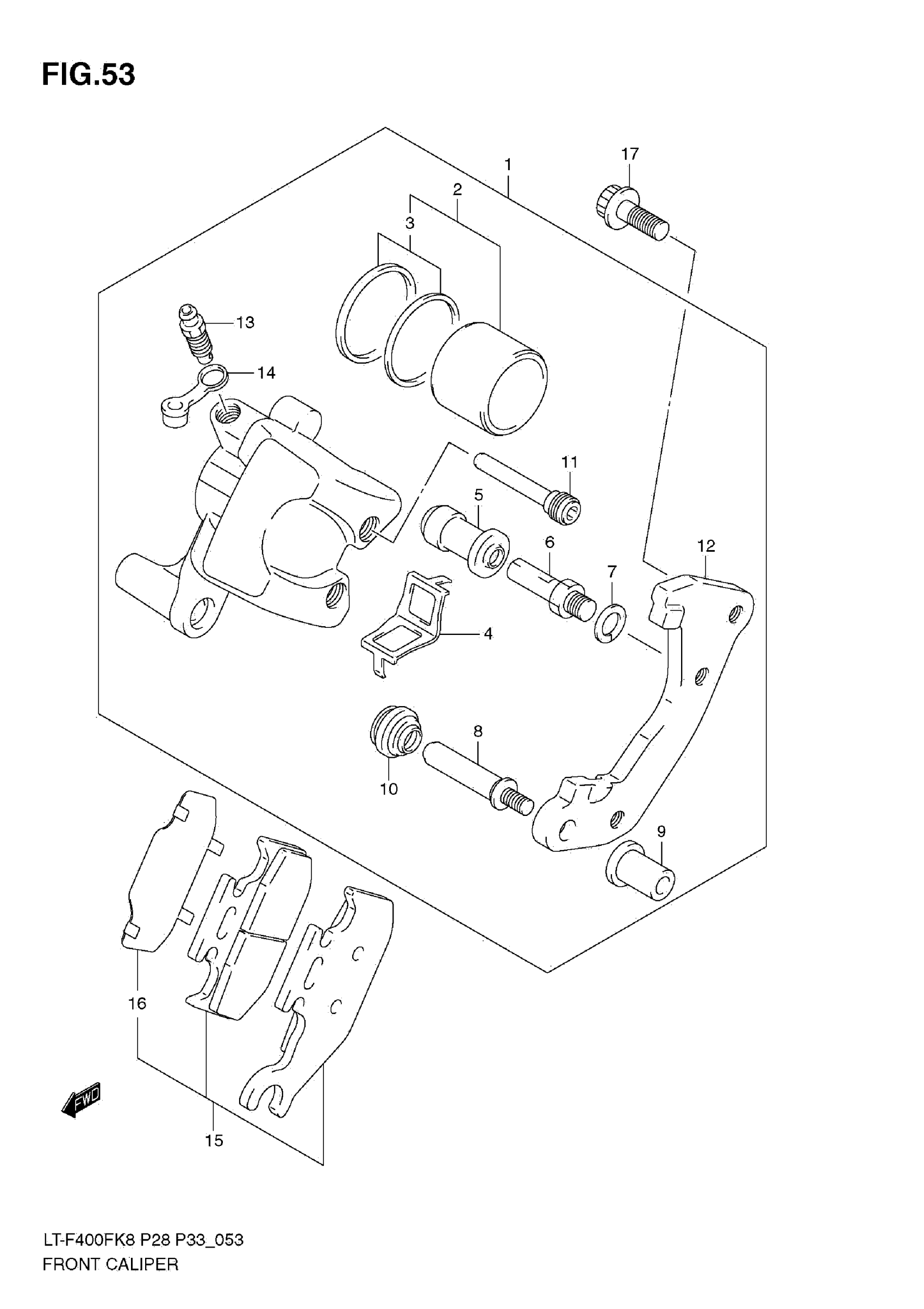

Suzuki LT-F400FK9 (2010) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-31G00-999

$326.55

1

CALIPER ASSY,FRONT,L

59300-31G01-999

$326.55

2

PISTON SET

59300-13810

$37.72

3

..SEAL SET,PISTON

69100-13820

$8.52

4

SPRING, PAD

59315-27C00

$14.02

5

BOOT

59386-13A00

$7.95

6

PIN

59382-13A00

$7.69

7

WASHER

59314-13A00

$2.02

8

PIN

59387-00B20

$18.55

9

NUT

59388-00B20

$15.16

10

BOOT

59303-14500

$5.52

11

.PIN,HANGER

59145-39D00

$21.57

12

BRACKET, RH

59151-31G00

$53.50

12

BRACKET, LH

59351-31G00

$53.50

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

PAD & SHIM SET,R

59100-31870

$58.55

15

PAD & SHIM SET,L

59100-31880

$58.55

16

SHIM

69132-28C00

$9.47

17

BOLT (8X20)

09106-08174

$3.37
