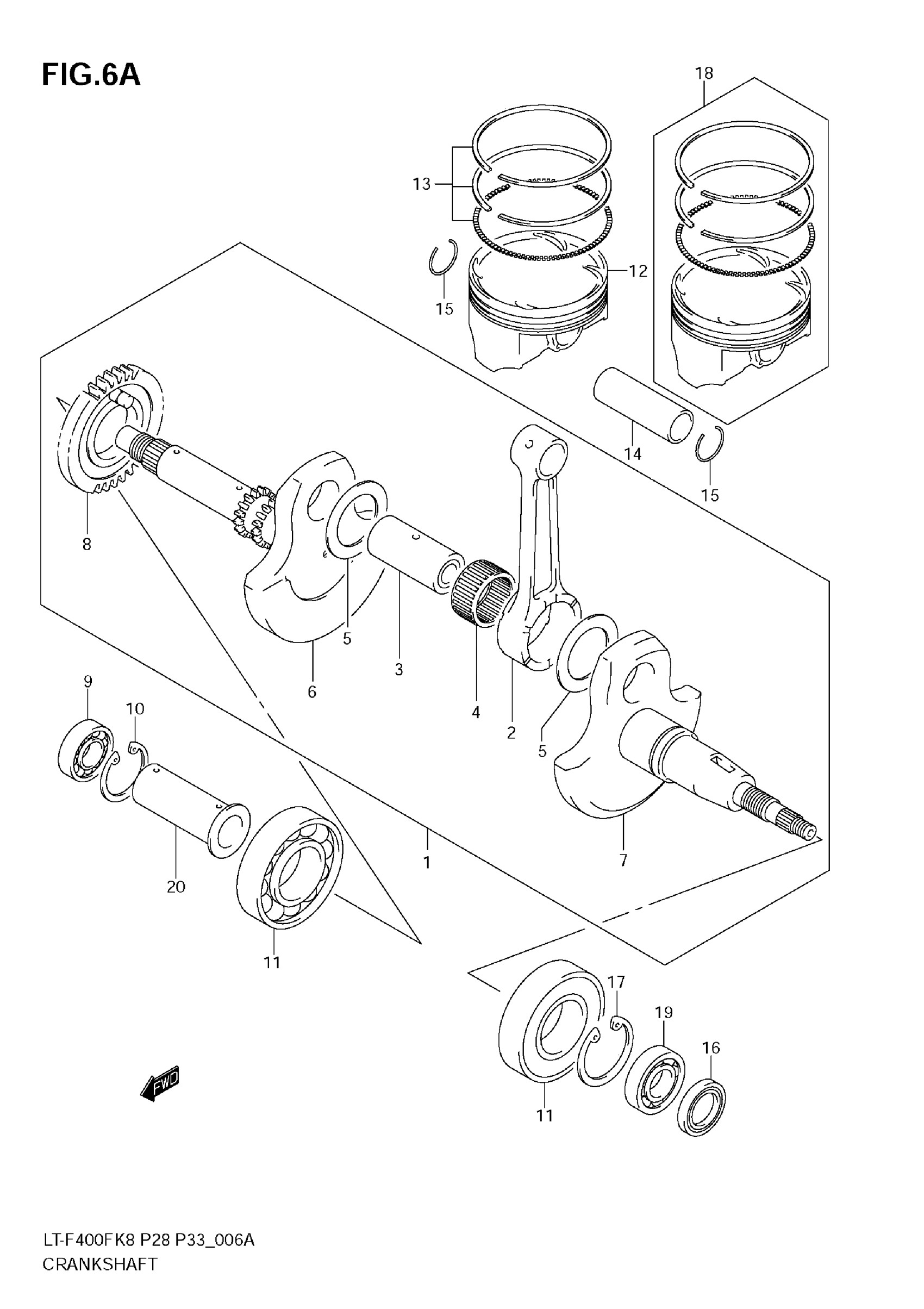

Suzuki LT-F400FK9 (2010) CRANKSHAFT (LT-F400FL0) Diagram

#

Description
Price

1

CRANKSHAFT SET

12200-38861

$1,092.02

2

ROD, CONNECTING

12161-14D00

$150.35

3

PIN, CRANK

12210-14D03

$86.13

4

BEARING (34X43X22)

09263-34005

$80.87

5

WASHER

09160-34003

$8.62

6

CRANKSHAFT, RH

12220-38F61

Unavailable

7

CRANKSHAFT, LH

12261-38F60

Unavailable

8

GEAR, CRANK BALANCER DRIVE

12661-38F01

Unavailable

9

BEARING, RH (15X35X11)

09262-15014

$26.60

10

CIRCLIP, CRANKSHAFT BEARING, RH

08331-41359

$2.26

11

BEARING

09262-35038

$46.10

12

PISTON

12111-38F21-0F0

$108.93

13

RING SET, PISTON (STD)

12140-38F10

$51.49

14

PIN,PISTON

12151-24A00

$22.03

15

CIRCLIP

09381-20004

$1.65

16

OIL SEAL (25X42X6)

09283-25095

$26.72

17

CIRCLIP

08331-41479

$2.31

18

PISTON SET,OS0.5 (OS:0.5) | OPT

12100-38F21-050

$149.82

19

BEARING, RECOIL STARTER CUP

09262-25006

$25.54

20

SPACER,CRANKSHAFT,R

12222-38F50

Unavailable
