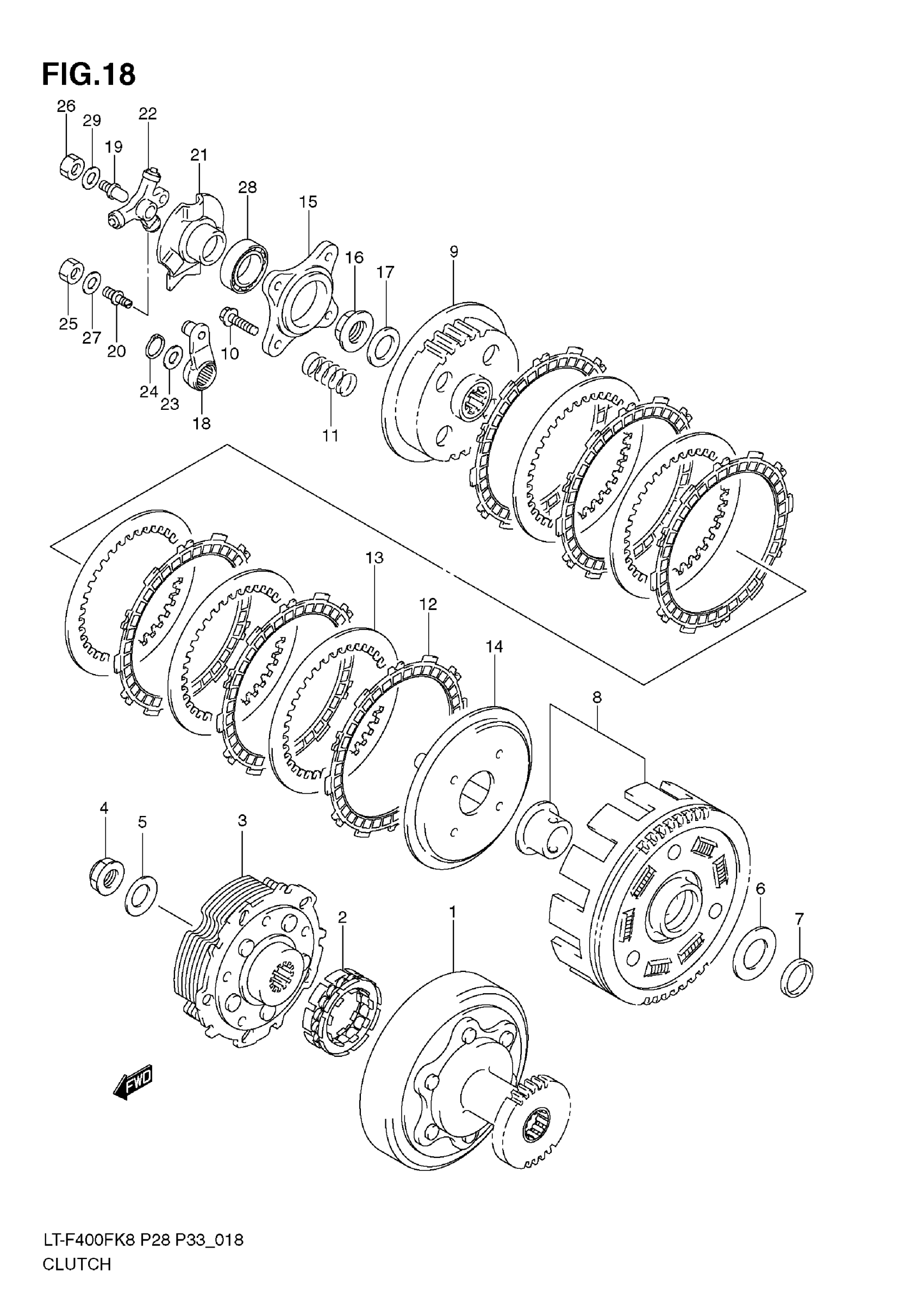

Suzuki LT-F400FK9 (2010) CLUTCH Diagram

#

Description
Price

1

HOUSING, STARTER CLUTCH

21120-27H50

$319.20

2

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$138.71

3

SHOE,STARTER CLUTCH

21500-27H50

$409.02

4

NUT,STARTER CLUTCH SHOE

21518-44D00

$13.74

5

WASHER, STARTER CLUTCH

09164-20007

$4.60

6

WASHER, PRIMARY DRIVEN THR | 22X28X3.5

09180-22045

Unavailable

7

WASHER, PRIMARY DRIVEN

08211-22423

$4.00

8

GEAR ASSY, PRIMARY DRIVEN

21200-38850

$312.80

9

HUB, CLUTCH SLEEVE

21411-44D00

$141.12

10

BOLT, CLUTCH SPRING (6X25)

09103-06099

$2.23

11

SPRING,CLUTCH

21413-38F50

$8.12

12

PLATE, CLUTCH DRIVE

21441-44D00

$27.87

13

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$11.28

14

DISK,CLUTCH PRESSURE

21462-44D00

$61.93

15

PLATE, CLUTCH RELEASE

21465-44D00

$20.09

16

NUT,CLUTCH SLEEVE HUB

21414-44D00

$15.08

17

WASHER, CL SLEEVE HUB

09164-20007

$4.60

18

ARM,CLUTCH RELEASE

23220-03G50

Unavailable

19

BOLT, CLUTCH RLSE NO.1

23223-44D11

$8.28

20

BOLT, CLUTCH RLSE NO.2

23224-44D00

$6.70

21

GUIDE,CL RELEASE ROLLER

23230-03G50

$59.87

22

ROLLER ASSY,CLUTCH RELEASE

23250-03G50

Unavailable

23

WASHER, CL RLSE ARM

08211-10242

$3.70

24

CIRCLIP, CL RLSE ARM

08331-3114A

$1.91

25

NUT, CLUTCH RELEASE NO.2

09140-06023

$2.06

26

NUT, CLUTCH RELEASE NO.1

09140-08017

$2.27

27

WASHER, CLUTCH RLSE NO.2 | 6.5X16X1.2 This part replaces 09160-06079.

09160-06052

$1.49

28

BEARING

08113-69050

$35.66

29

WASHER, CLUTCH RLSE NO.1 | 8X20X1

09160-08103

$3.48
