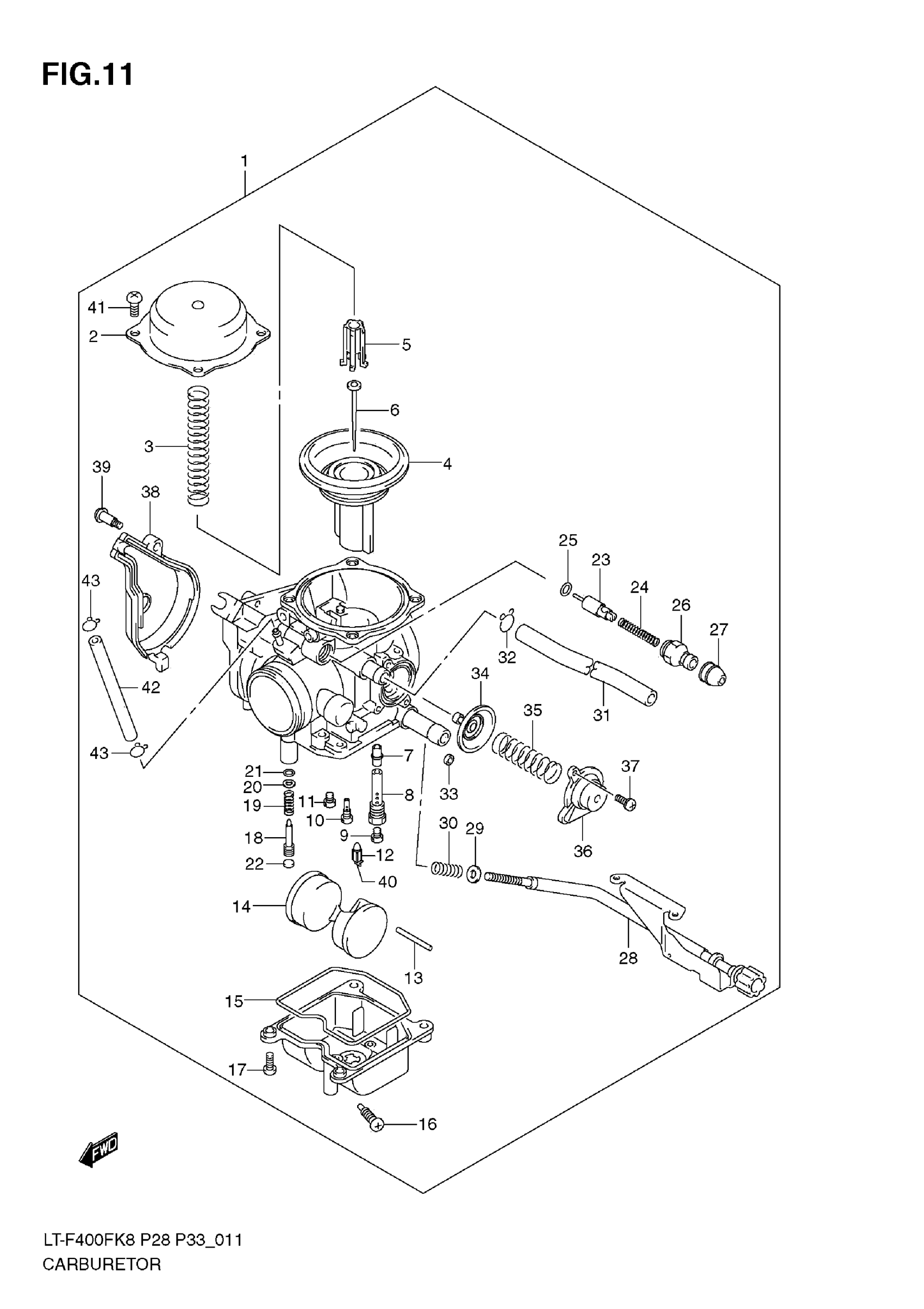

Suzuki LT-F400FK9 (2010) CARBURETOR (LT-F400FK8/FK9/FUL0) Diagram

#

Description
Price

1

CARBURETOR ASSY | LT-F400FK8 LT-F400FK9/FUL0 This part replaces 13200-27H00.

13200-27H0V

$765.75

2

DIAPHRAGM COVER

13502-38F00

Unavailable

3

SPRING

13503-38F00

$12.80

4

DIAPHRAGM

13501-27H00

$148.73

5

SEAT, SPRING

13382-26E00

$15.35

6

NEEDLE, JET (NLVM)

13383-27H00

$20.45

7

JET, NEEDLE

09494-00869

$33.45

8

HOLDER, NEEDLE JET

13342-38F00

$26.33

9

JET, MAIN (#125)

09491-25022

$18.42

10

JET, PILOT (#38)

09492-38005

$16.70

11

JET, MAIN (#55)

09491-55009

$16.78

12

VALVE ASSY, NEEDLE

13370-38F00

$17.86

13

FLOAT PIN

13254-26E00

$4.43

14

FLOAT ASSY

13250-26E00

$55.41

15

O RING

13258-26E00

$8.91

16

DRAIN SCREW

13247-43E00

$6.52

17

SCREW

13602-26E10

$4.62

18

SCREW, ADJUST

13279-03FA0

$11.38

19

SPRING

13268-26E00

$5.20

20

WASHER

13291-26E00

$2.93

21

O RING

13295-26E00

$4.34

22

CAP | LT-F400FK8 LT-F400FK9/FUL0

13281-26E00

$5.52

23

VALVE ASSY, STARTER

13410-27H00

$58.13

24

SPRING

13417-03G00

$5.95

25

O RING

13686-03G00

$4.34

26

HOLDER

13418-03G00

$5.44

27

CAP

13681-28E00

$8.07

28

SCREW, STOP

13270-27H00

$99.63

29

WASHER

13273-03G00

$3.58

30

SPRING

13268-35F00

$4.57

31

HOSE

13683-27H00

$37.25

32

CLIP

13693-24F00

$3.22

33

U RING This part replaces 13486-15F00.

13486-15F01

$2.46

34

DIAPHRAGM This part replaces 13480-38F00.

13480-38F01

$36.61

35

SPRING

13481-15F00

$4.28

36

COVER

13484-15F00

$32.27

37

SCREW

13601-15F10

$3.70

38

COVER

13578-03G00

$37.52

39

SCREW

13601-11F00

$2.93

40

CLIP

13375-26E00

$5.44

41

SCREW

13602-43E00

$3.05

42

HOSE

13698-27H00

Unavailable

43

CLIP

13671-26E00

Unavailable
