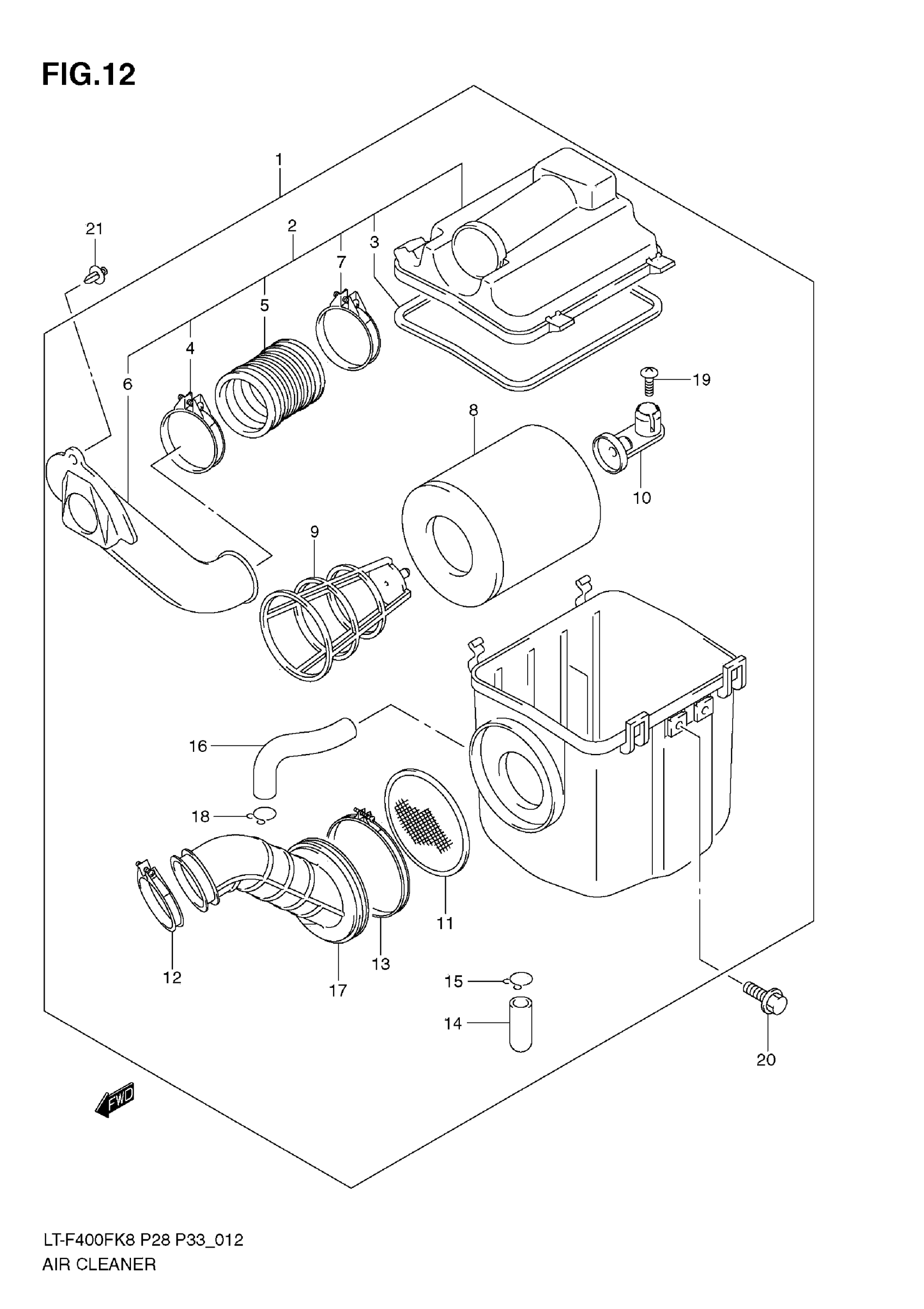

Suzuki LT-F400FK9 (2010) AIR CLEANER (LT-F400FK8/FK9/FUL0) Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-27H00

$161.13

2

INLET, AIR CLEANER

13890-27H00

$74.83

3

GASKET

13746-03G00

$4.72

4

CLAMP

13826-38F20

$9.46

5

..JOINT,INLET This part replaces 13891-03G00.

13891-03G01

$13.43

6

DUCT, INLET

13896-27H00

$31.95

7

..CLAMP

09402-60208

$5.11

8

FILTER

13780-07G00

$32.07

9

HOLDER

13791-03G00

$8.73

10

STOPPER, HOLDER

13792-03G00

$7.19

11

.TRAP, FLAME

13810-03G00

$11.87

12

CLAMP

13826-38F00

$9.53

13

CLAMP, OUTLET TUBE

13826-38F10

$14.17

14

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

15

CLIP

09401-14301

$2.35

16

TUBE, BREATHER

13853-38F10

$11.38

17

TUBE,OUTLET This part replaces 13881-38F00.

13881-38F01

$50.50

18

CLIP

09401-14301

$2.35

19

SCREW

02142-0616A

$1.49

20

BOLT (6X12)

09103-06285

$1.97

21

CLIP

09409-07333

$2.31
