Description

Price

1

SWINGINGARM SET,REAR

61101-27850

$285.82

2

.BUSH, PIVOT

61230-27H00

$62.88

3

HOUSING,RR AXLE This part replaces 61300-27H00.

61300-27H10

$370.01

4

HOUSING,RR AXLE LH

61400-27H00

$233.67

5

BOLT (10X20)

09103-10216

$4.17

6

NUT

09159-10115

$3.55

7

BOLT (12X80)

09113-12002

$17.15

8

NUT

09159-12054

$7.44

9

O RING (D:3.1,ID:69.4)

09280-70005

$6.23

10

OIL SEAL (38X55X9)

09283-38022

$13.01

11

BOLT (10X30)

09103-10421

$4.25

12

CIRCLIP

08331-41559

$3.70

13

BEARING

08123-60067

$29.13

14

ABSORBER ASSY, REAR SHOCK

62100-27H10-019

$199.17

14

(BLACK)

62100-27H10-019

$199.17

15

BOLT (10X48)

09103-10126

$4.50

16

WASHER (10.5X30X2.3)

09160-10501

$2.33

17

NUT

08319-3110B

$3.87

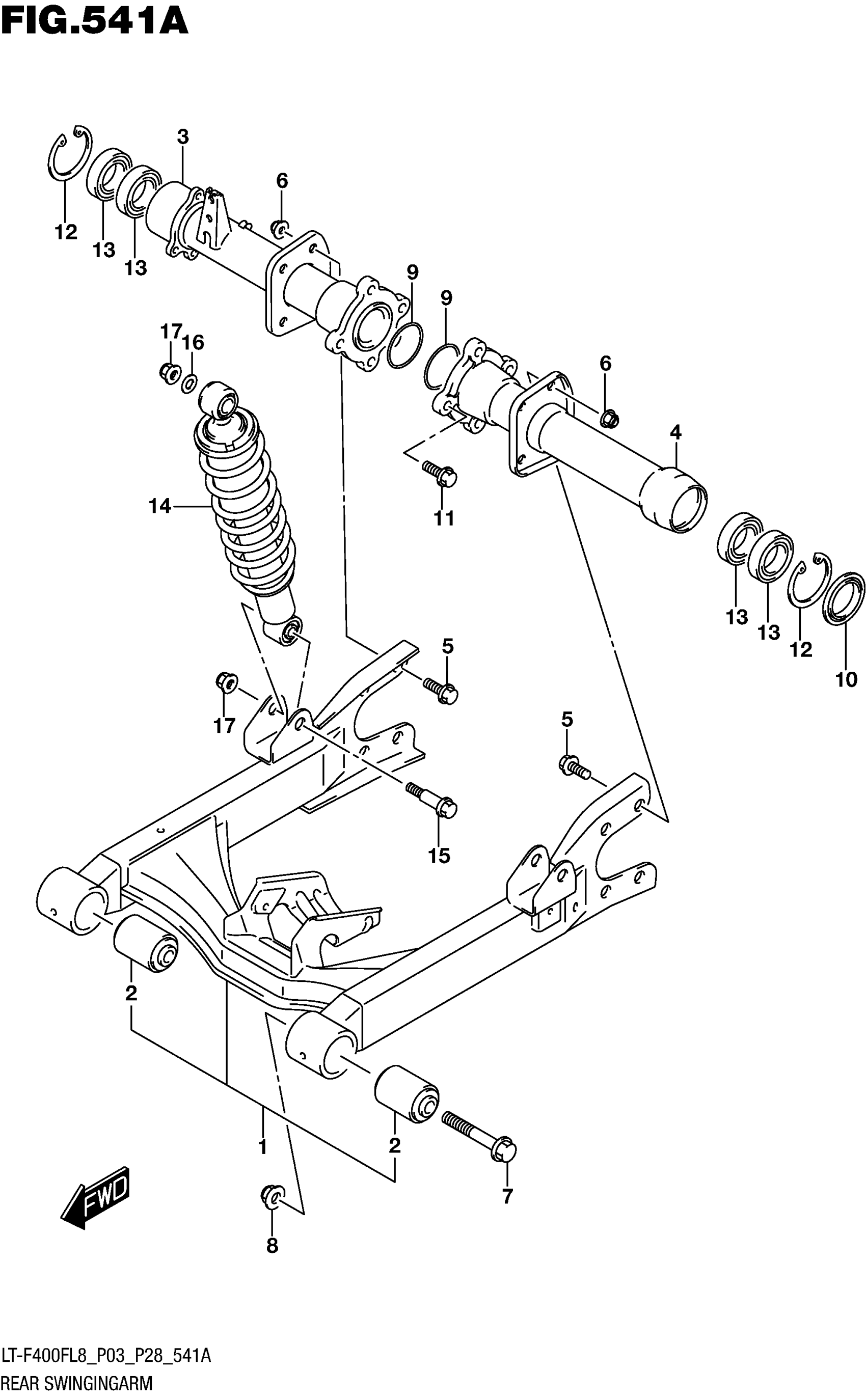

Suzuki LT-F400F FSI L8 (2018) REAR SWINGINGARM Diagram
