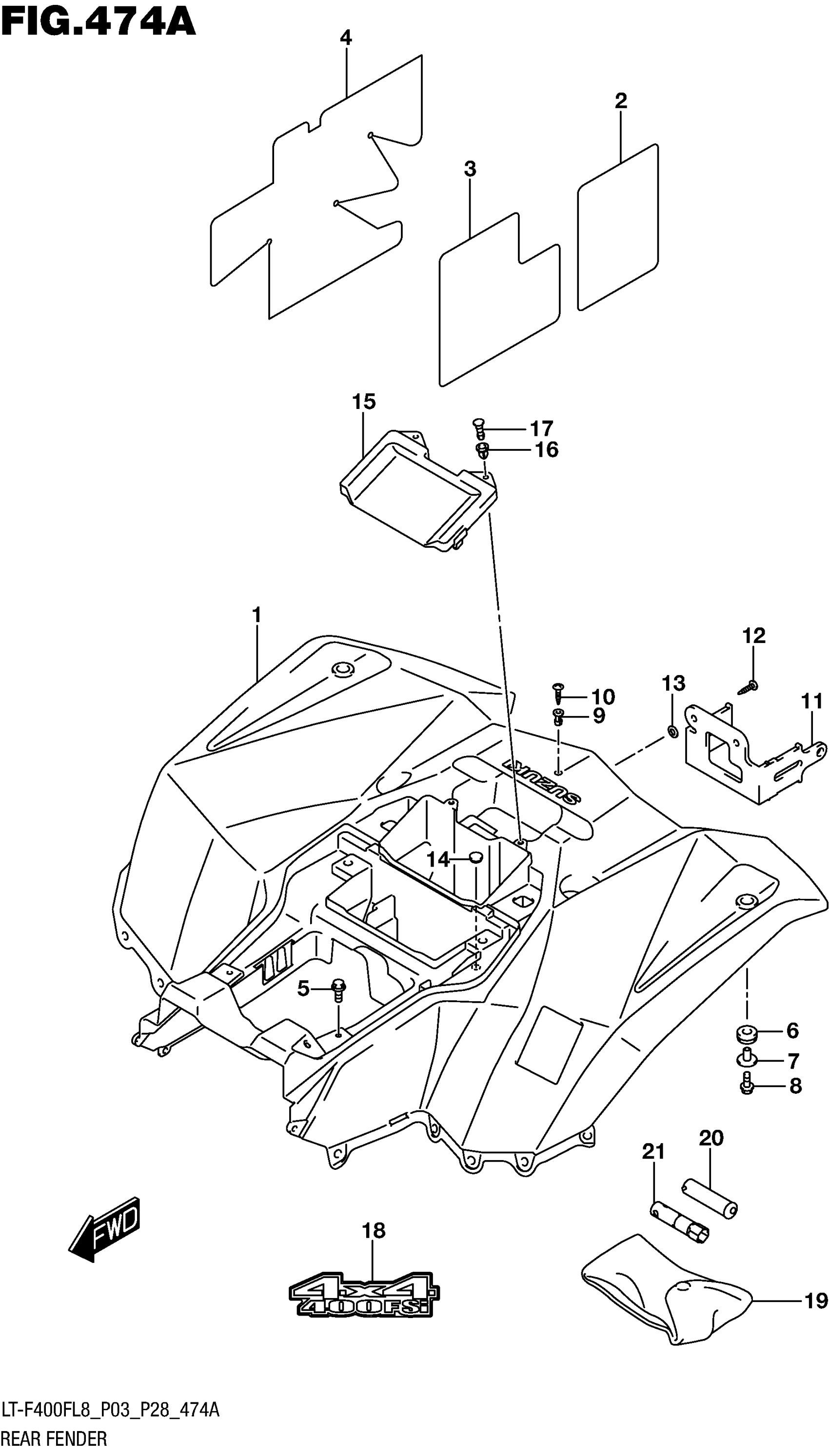

Suzuki LT-F400F FSI L8 (2018) REAR FENDER Diagram

#

Description
Price

1-1

FENDER,REAR (RED) This part replaces 63111-27H02-YT9.

63111-27H03-YT9

$340.22

1-2

FENDER,REAR (GREEN) This part replaces 63111-27H02-YLG.

63111-27H03-YLG

$328.27

2

SHIELD, REAR FENDER This part replaces 63122-27H20.

63122-27H10

$14.47

3

SHIELD, REAR FENDER

63123-27H20

$15.82

4

SHIELD, REAR FENDER This part replaces 63124-27H20.

63124-27H10

$14.22

5

BOLT (6X16)

09116-06006

$1.86

6

CUSHION (11.5X32X12.2)

09320-11021

$4.17

7

WASHER

09169-06074

$7.95

8

BOLT

01550-0625A

$1.97

9

NUT

09159-05019

$7.14

10

SCREW

02142-0520B

$1.78

11

PLATE,CDI UNIT

47413-27H00

$10.96

12

RIVET

09229-04020

$2.66

13

WASHER

08322-0104A

$1.91

14

CAP (OD:16)

09250-08018

$3.34

15

COVER,REAR FENDER

63112-27H00

$35.80

16

GROMMET

09409-08329

$2.40

17

PLUNGER

09409-08330

$2.38

18

EMBLEM

68171-27HG0-JLJ

$19.73

19

TOOL ASSY

09800-21057

$11.57

20

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

21

SPANNER,BOX (16)

09816-00168

$15.10
