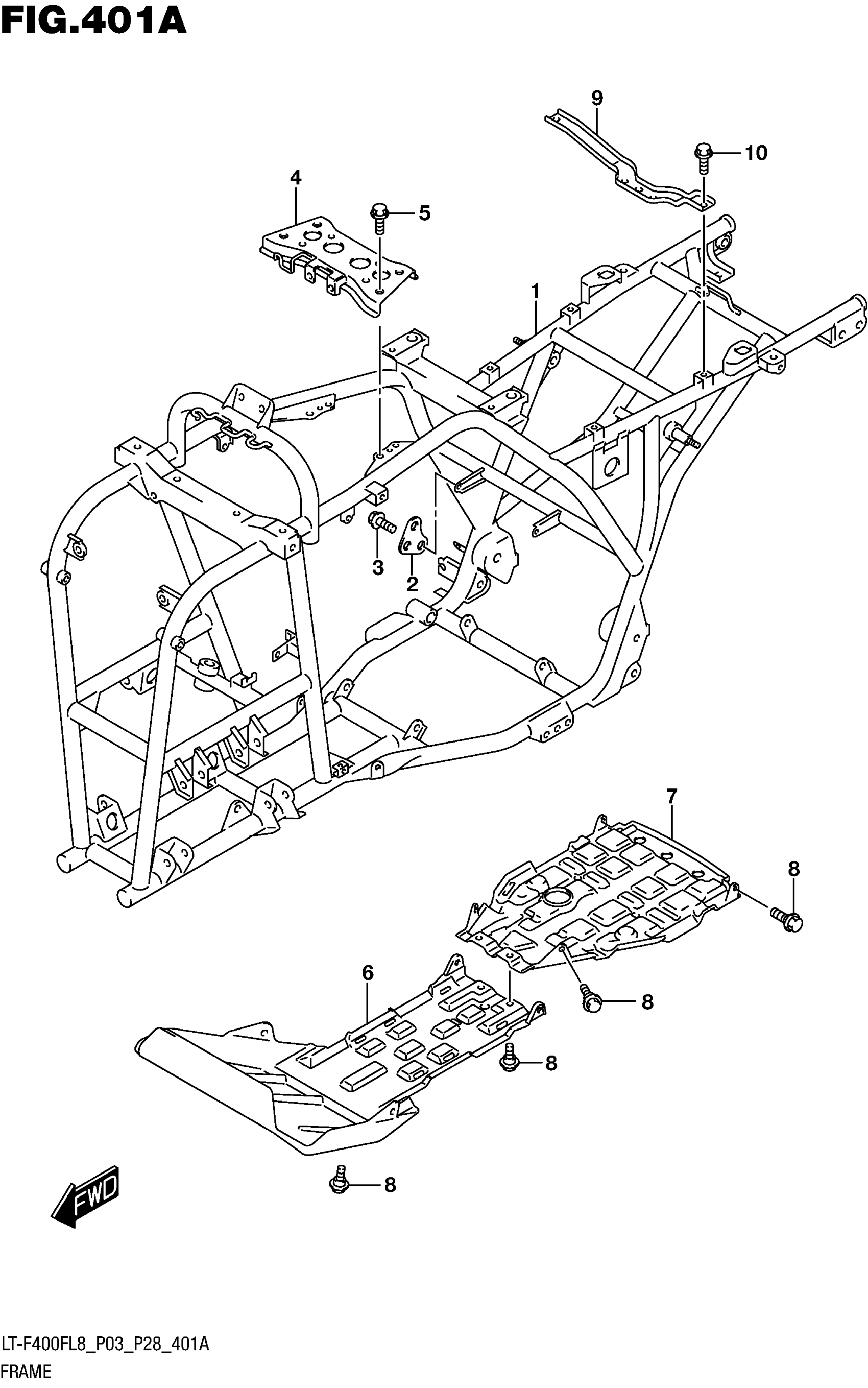

Suzuki LT-F400F FSI L8 (2018) FRAME Diagram

#

Description

Price

1

FRAME (BLACK)

41100-27H11-019

$1,381.97

2

PLATE, ENG MTG REAR RH

41981-38FA0

$3.93

3

BOLT (8X16)

09103-08441

$1.58

4

PLATE, ENG MTG UPPER

41990-27H10

$38.45

5

BOLT (8X16)

09103-08441

$1.58

6

PROTECTOR,FRONT This part replaces 42521-27H00.

42521-27H00-291

$118.60

7

PROTECTOR,ENGINE This part replaces 42511-38F02.

42511-38F04

$28.32

8

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

9

PLATE,BATTERY

41561-27H00

$20.02

10

BOLT

01550-0616A

$1.97
