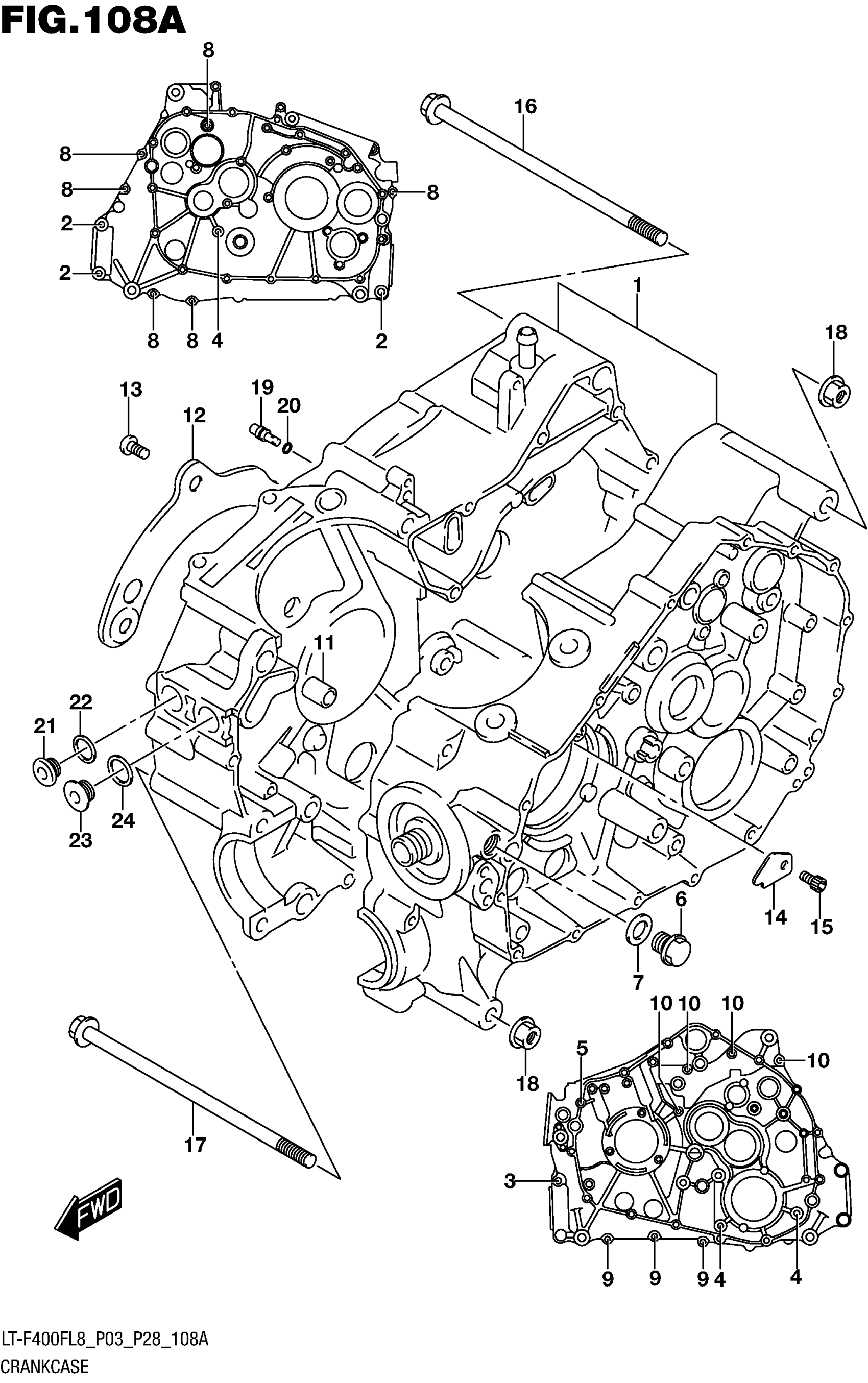

Suzuki LT-F400F FSI L8 (2018) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-38852

Unavailable

2

BOLT (8X50)

09103-08081

$3.72

3

BOLT (8X50)

09103-08081

$3.72

4

.BOLT (8X85)

09103-08300

Unavailable

5

.BOLT (8X60)

09103-08217

$3.72

6

.PLUG (14X12)

09247-14015

$4.45

7

.GASKET (13.8X18.8X4.8)

09168-14002

$2.26

8

BOLT

01547-0645A

$2.42

9

BOLT

01547-0645A

$2.42

10

.BOLT

01547-0670A

$2.92

11

.PIN

04211-13189

$2.19

12

PLATE,OIL GUIDE

11317-38F10

Unavailable

13

SCREW

02112-0612A

$1.49

14

PLATE,OIL GUIDE,L

11323-38F00

Unavailable

15

SCREW

02112-0612A

$1.49

16

BOLT (10X195)

09103-10118

$11.56

17

BOLT, ENGINE MOUNTING

11611-03G00

$21.98

18

NUT

09159-10115

$3.55

19

JET, OIL GALLERY

09493-32006

$16.87

20

O RING (D:1.2,ID:4)

09280-04004

$1.91

21

PLUG (16X8)

09248-16012

$4.64

22

GASKET (16X22X2)

09168-16002

$1.91

23

PLUG (18X8)

09248-18011

$7.35

24

GASKET (18X24X2)

09168-18009

$3.87
