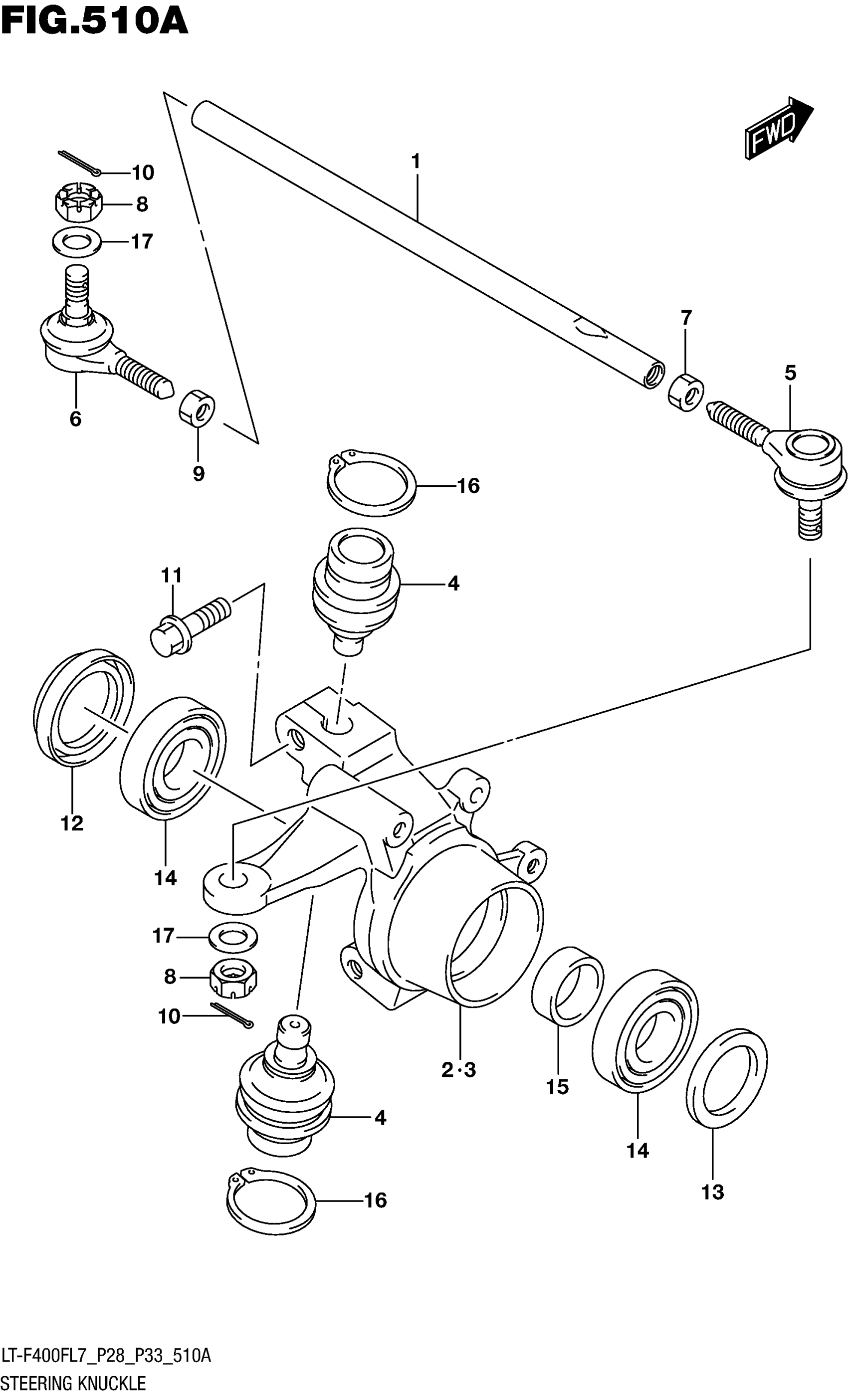

Suzuki LT-F400F FSI L7 (2017) STEERING KNUCKLE (LT-F400FL7 P28) Diagram

#

Description
Price

1

TIE-ROD,STEERING

51281-27H00

$47.48

2

KNUCKLE,STEERING,R This part replaces 51231-27H00.

51231-27H10

$139.46

3

KNUCKLE,STEERING,L This part replaces 51241-27H00.

51241-27H10

$164.07

4

END,KNUCKLE STEERING

51210-38F00

$65.76

5

ROD, END RH

51260-21G00

$66.46

6

ROD, END LH

51270-21G00

$66.46

7

NUT, TIE-ROD RH

51283-21G00

$4.17

8

NUT

08314-4010B

$2.50

9

NUT

09140-10027

$1.49

10

COTTER PIN

04111-2020A

$1.49

11

BOLT, KNUCKLE (10X30)

51233-09F00

$5.62

12

OIL SEAL (38X55X8)

09283-38012

$14.74

13

OIL SEAL (38X55X9)

09283-38022

$13.01

14

BEARING

08123-60067

$29.13

15

SPACER,HUB BEARING

54731-03G00

$11.64

16

CIRCLIP

08331-31309

$2.57

17

WASHER (10.5X19X2)

09160-10082

$1.61
