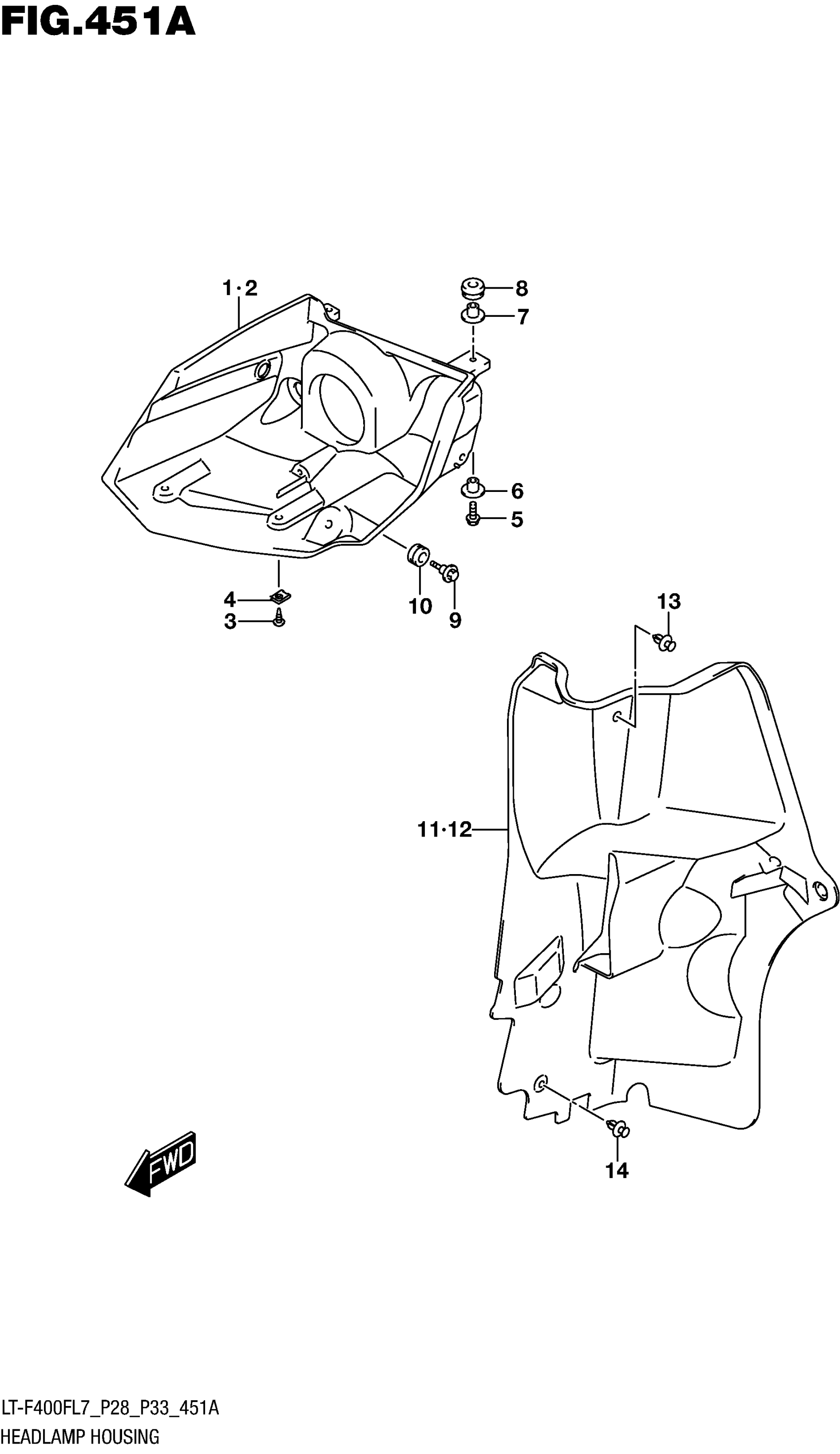

Suzuki LT-F400F FSI L7 (2017) HEADLAMP HOUSING Diagram

#

Description

Price

1

HOUSING,FRONT LAMP,R (BLACK) This part replaces 53281-27H01-291.

53281-27H02-291

$36.23

2

HOUSING,FRONT LAMP,L (BLACK) This part replaces 53284-27H01-291.

53284-27H02-291

$35.90

3

SCREW

03541-0516A

$1.37

4

NUT

09148-05038

$1.97

5

BOLT

01550-0630A

$2.31

6

WASHER

09169-06073

$3.08

7

WASHER

09169-06074

$7.49

8

CUSHION (11.5X32X12.2)

09320-11021

$3.77

9

SCREW (6X22.5)

09139-06118

$3.05

10

CUSHION

09320-10501

$4.85

11

MUDFLAP,FENDER INNER,R This part replaces 53411-27H00.

53411-27H01

$105.80

12

MUDFLAP,FENDER INNER,L This part replaces 53421-27H00.

53421-27H01

$105.80

13

CLIP

09409-07333

$2.29

14

CLIP

09409-08335

$2.44
