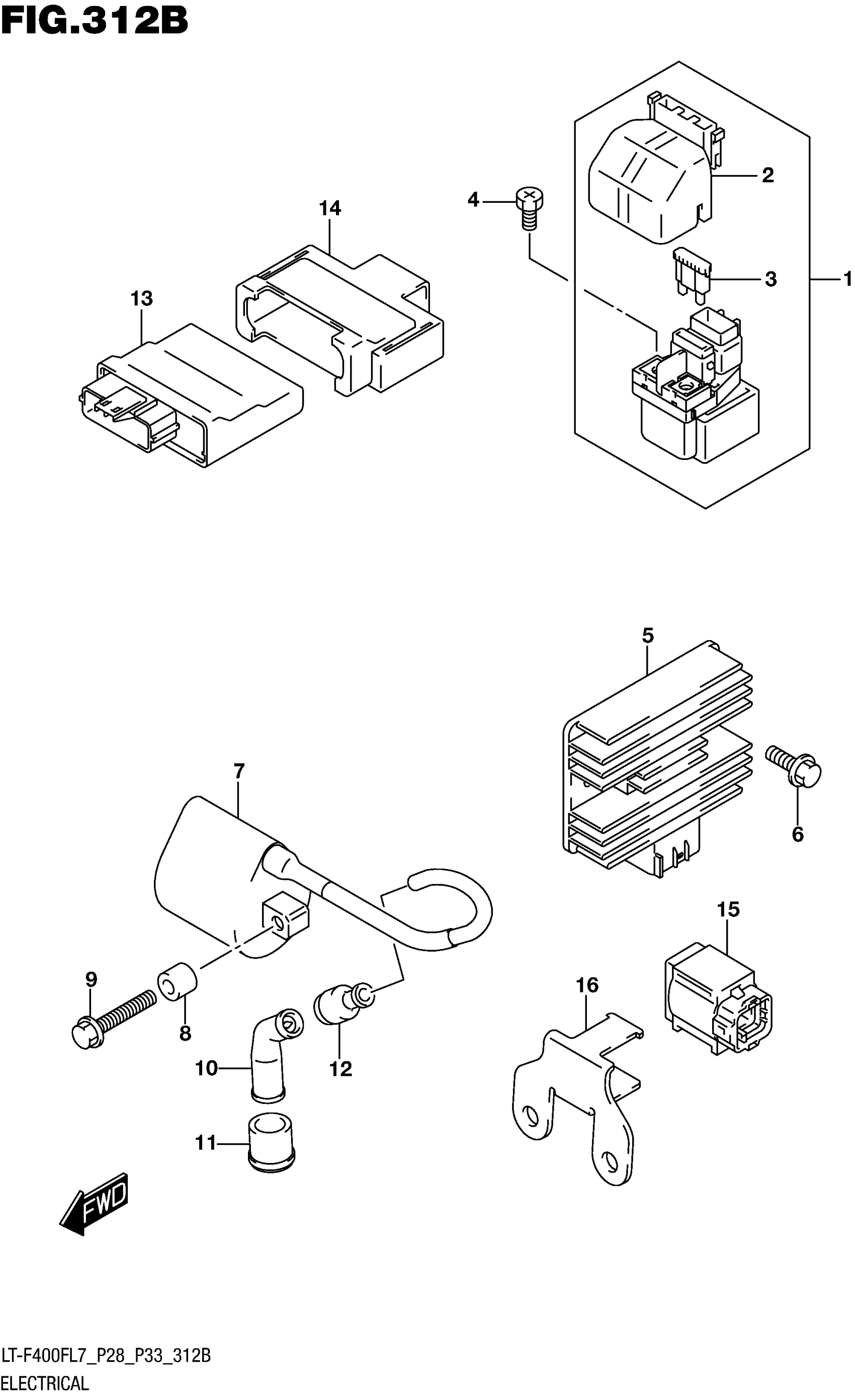

Suzuki LT-F400F FSI L7 (2017) ELECTRICAL (LT-F400FL7 P33) Diagram

RELAY ASSY,STARTING MOTOR

31800-38G10

$89.07

.COVER

31861-38G00

$5.52

.FUSE (30A)

09481-30501

$2.34

SCREW (6X8)

09128-06013

$1.24

RECTIFIER ASSY

32800-42F10

$218.51

BOLT

01550-0620A

$1.97

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

$134.47

SPACER (6X12X10)

09180-06095

$4.28

BOLT

01547-0630B

$2.73

CAP, SPARK PLUG

33510-43010

$22.88

SEAL, SPARK PLUG

33541-44D00

$4.85

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

CONTROL UNIT,FI This part replaces 32920-27HA1.

32920-27HA2

$581.53

HOLDER, FI CONTROL UNIT

32981-27H00

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

BRACKET,FUEL CUT SENSOR

33961-27H00

Unavailable
