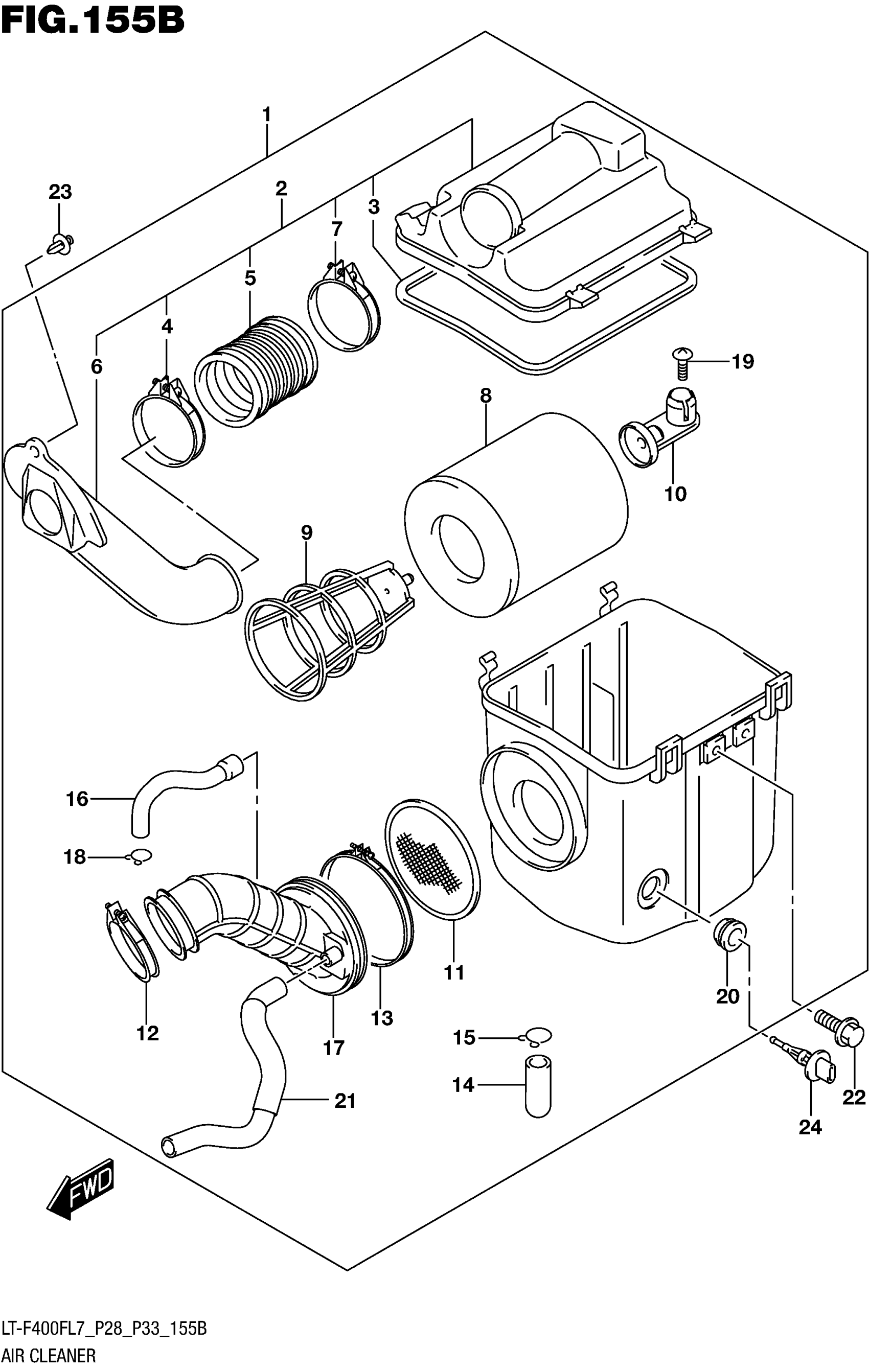

Suzuki LT-F400F FSI L7 (2017) AIR CLEANER (LT-F400FL7 P33) Diagram

#

Description
Price

1

CLEANER ASSY,AIR This part replaces 13700-27H40.

13700-27H41

$203.32

2

.INLET, AIR CLEANER

13890-27H00

$74.83

3

..GASKET

13746-03G00

$4.72

4

..CLAMP

13826-38F20

$9.46

5

..JOINT,INLET This part replaces 13891-03G00.

13891-03G01

$13.43

6

..DUCT, INLET

13896-27H00

$31.95

7

..CLAMP

09402-60208

$5.11

8

.FILTER

13780-07G00

$32.07

9

.HOLDER

13791-03G00

$8.73

10

.STOPPER, HOLDER

13792-03G00

$7.19

11

.TRAP, FLAME

13810-03G00

$11.87

12

.CLAMP

13826-27H20

$5.15

13

.CLAMP, OUTLET TUBE

13826-38F10

$14.17

14

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

15

.CLIP

09401-14101

$2.34

16

.TUBE, BREATHER

13853-27H20

$10.92

17

.TUBE, OUTLET

13881-27H40

Unavailable

18

.CLIP

09401-14101

$2.34

19

.SCREW

02142-0616A

$1.49

20

.GROMMET,AIR TEMP SENSOR This part replaces 13655-77E00.

13655-77E10

$3.85

21

.TUBE, 2ND AIR

13857-27H40

Unavailable

22

BOLT (6X12)

09103-06285

$1.97

23

CLIP

09409-07333

$2.31

24

SENSOR, AIR TEMP

13650-52G00

$107.20
