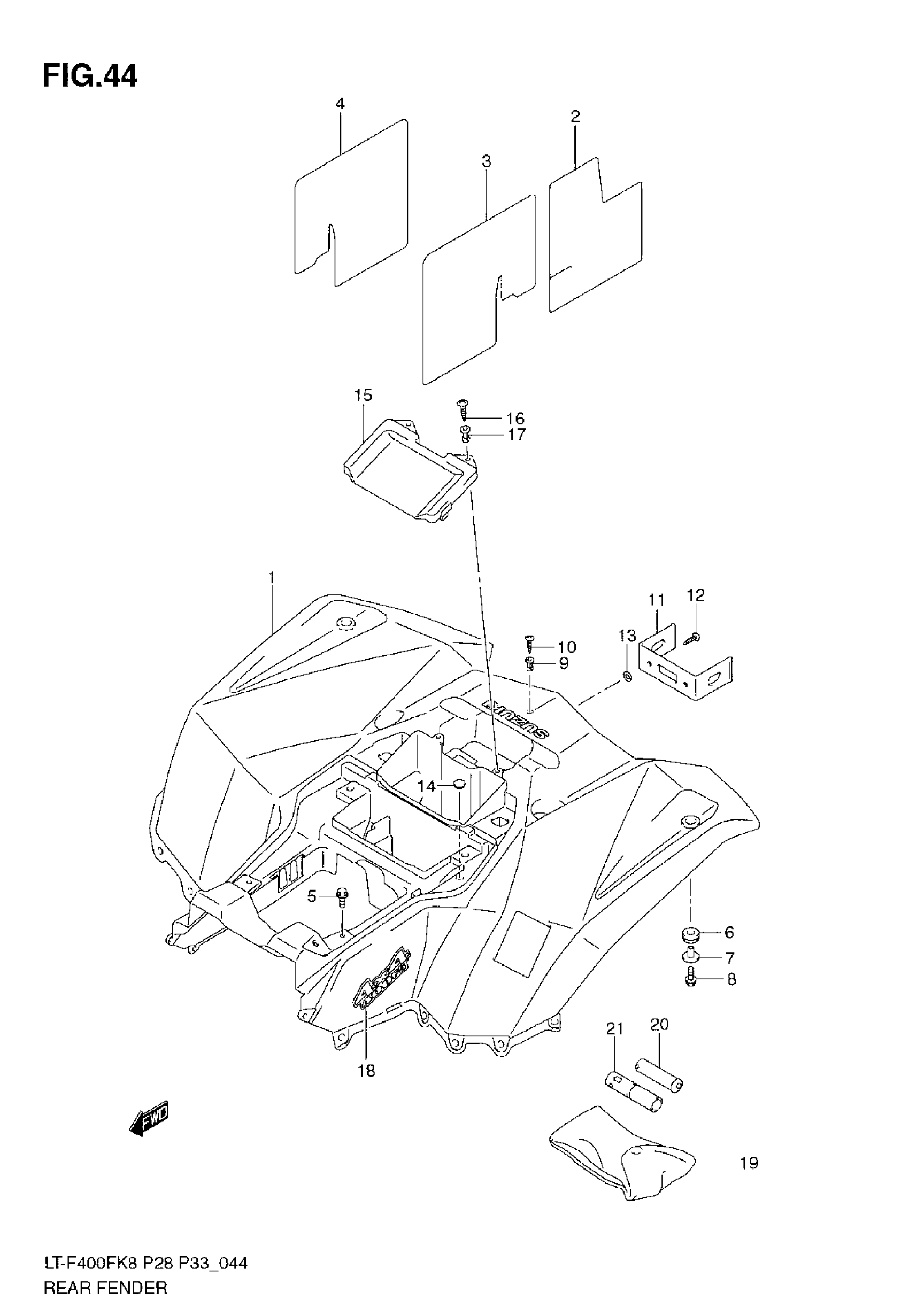

Suzuki LT-F400F (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR (RED) This part replaces 63111-27H00-YT9.

63111-27H03-YT9

$340.22

1

FENDER,REAR (GREEN) This part replaces 63111-27H00-YLG.

63111-27H03-YLG

$328.27

1

FENDER, REAR (BLACK) This part replaces 63111-27H00-YLZ.

63111-27H01-YLZ

$335.70

1

FENDER, REAR (CAMOUFLAGE) This part replaces 63111-27H10-YKL.

63111-27H12-YVA

$796.57

1

FENDER, REAR (CAMOUFLAGE) | MODEL K9 This part replaces 63111-27H10-YVA.

63111-27H12-YVA

$796.57

2

SHIELD, REAR FENDER

63122-27H00

Unavailable

3

SHIELD, REAR FENDER

63123-27H00

Unavailable

4

SHIELD, REAR FENDER

63124-27H00

Unavailable

5

BOLT, FRONT

09116-06006

$1.86

6

CUSHION (11.5X32X12.2)

09320-11021

$4.17

7

SPACER

09169-06074

$7.95

8

BOLT

01550-0625A

$1.97

9

NUT

09159-05019

$7.14

10

SCREW, REAR

02142-0520B

$1.78

11

PLATE, CDI UNIT

47413-38F01

Unavailable

12

RIVET

09229-04020

$2.66

13

WASHER

08322-0104A

$1.91

14

CAP(OD:16) This part replaces 09250-08007.

09250-08020

$1.67

15

COVER,REAR FENDER

63112-27H00

$35.80

16

CLIP

09409-08329

$2.40

17

GROMMET

09409-08330

$2.38

18

EMBLEM,REAR FEN | MODEL K8 This part replaces 68171-27H20-ETA.

68171-27HC0-EFG

Unavailable

18

EMBLEM | MODEL K9

68171-27H20-FSC

Unavailable

19

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

20

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

21

SPANNER, BOX 16

09816-00173

Unavailable
