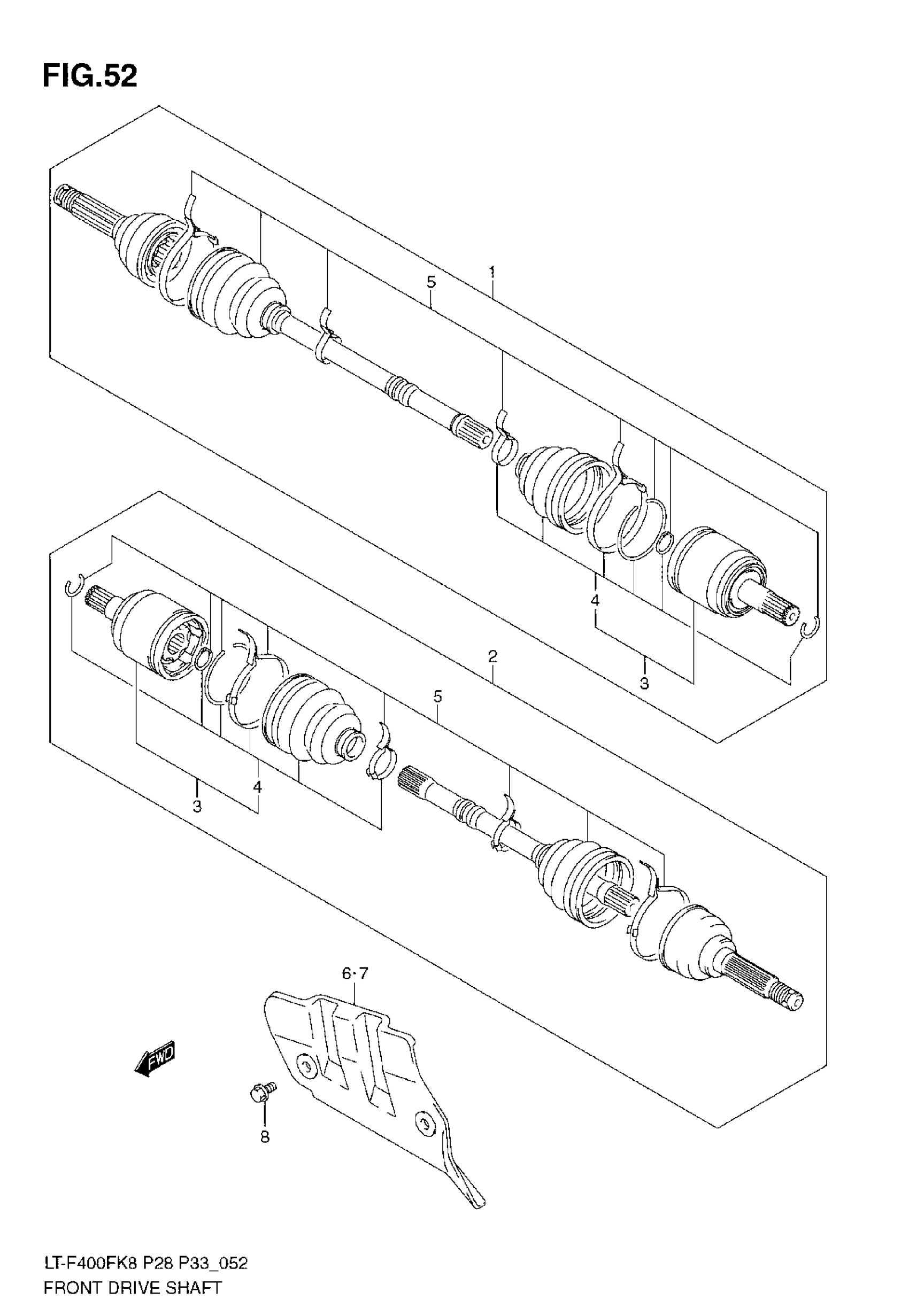

Suzuki LT-F400F (2009) FRONT DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, FRONT DRIVE RH This part replaces 54901-27H00.

54901-27H01

$427.70

2

SHAFT ASSY, FRONT DRIVE LH | Includes Item(s) 3 - 5 This part replaces 54902-27H00.

54902-27H01

$405.78

3

.JOINT SET This part replaces 54933-38F13.

54933-38F14

$203.32

4

..BOOT SET, INNER This part replaces 54931-38F13.

54931-38F14

$104.35

5

.BOOT SET, OUTER This part replaces 54930-27H00.

54930-27H01

$142.67

6

PROTECTOR,FRONT DRIVE SHAFT,R This part replaces 54903-27H00.

54903-27H01

$14.05

7

PROTECTOR,FR D/ This part replaces 54904-27H00.

54904-27H00-291

$16.05

8

BOLT

09111-06085

$4.54
