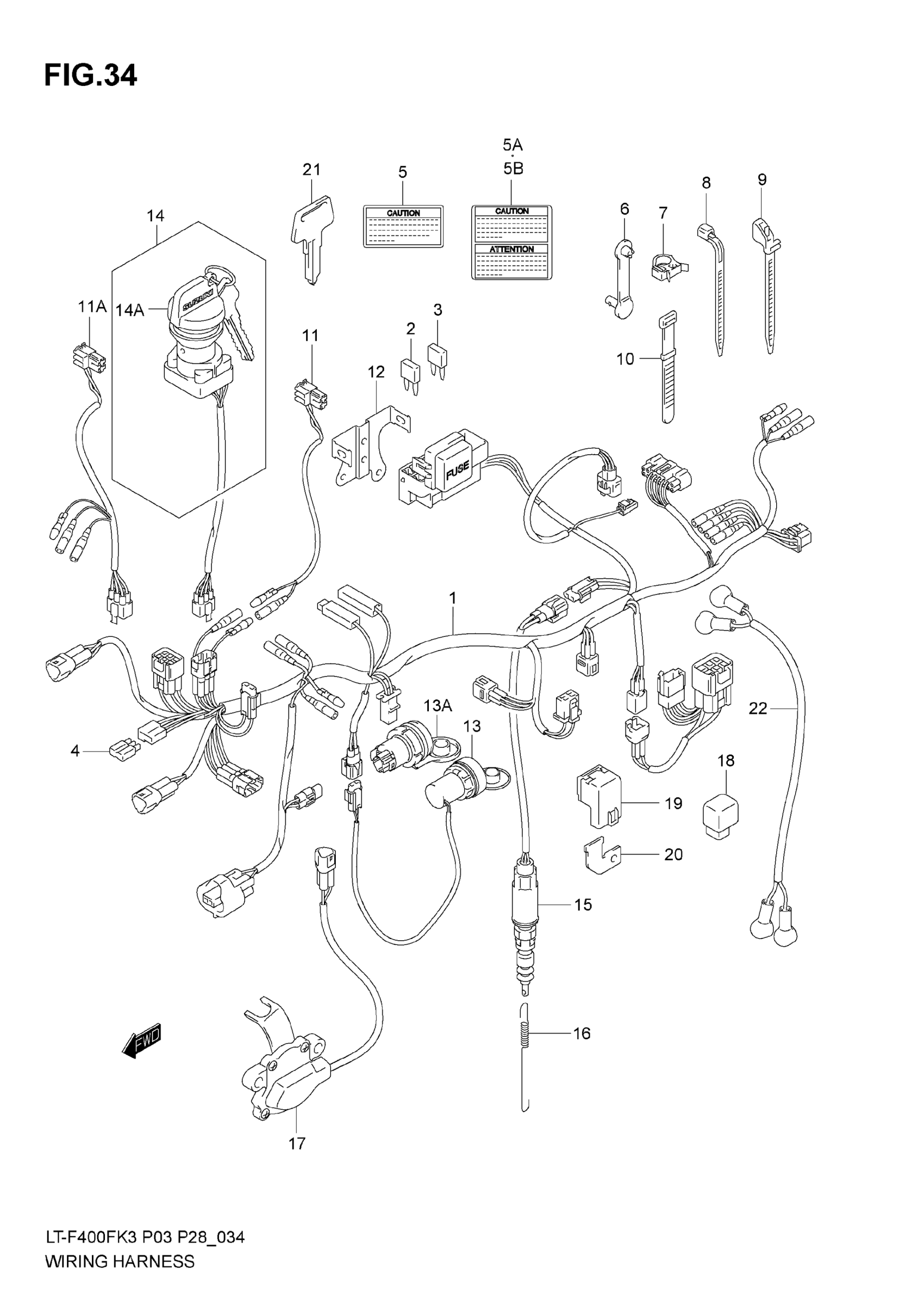

Suzuki LT-F400F (2007) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS WIRING | MODEL K3 %F.NO.5SAAK46A3X102000

36610-38F20

Unavailable

1

HARNESS WIRING | MODEL K3 F.NO.5SAAK46A3X102001%

36610-38F61

$220.17

1

HARNESS WIRING | MODEL K4/K5/K6/K7; Includes Item(s) 2 - 4

36610-38FB1

Unavailable

2

.FUSE (5A) | FOR 36610-38F20

09481-05501

Unavailable

3

FUSE (10A) | FOR 36610-38F20

09481-10501

$2.06

3

FUSE (10A) | FOR 36610-38F61,36610-38FB1

09481-10501

$2.06

4

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

5

LABEL, CAUTION MAX AMP | %F.NO.5SAAK46A3X102000

38852-09F21

$7.53

5

LABEL, CAUTION MAX AMP | F.NO.5SAAK46A3X102001%

38852-09F30

Unavailable

5A

LABEL, CAUTION MAX AMP | %F.NO.5SAAK46A3X102000 P28

38852-03G00

Unavailable

5B

LABEL, CAUTION MAX AMP | F.NO.5SAAK46A3X102001% P28

38852-03G10

Unavailable

6

CLAMP, WIRING HARNESS

36651-48E00

$3.25

7

CLAMP

09403-20403

$3.58

7

CLAMP

09403-25401

Unavailable

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

9

CLAMP

09407-12407

Unavailable

10

CLAMP

09407-12402

$3.04

11

WIRE,BRAKE SW L | MODEL K3 This part replaces 36856-35B00.

36856-35B01

$8.60

11A

WIRE, FRONT BRAKE SW LEAD | MODEL K4/K5/K6/K7

36855-38F10

Unavailable

12

BRACKET,FUSE BOX

36744-38F00

$11.37

13

TERMINAL, POWER SOURCE | 12V,60W %F.NO.5SAAK46A3X102000

38850-09F00

Unavailable

13A

TERMINAL, POWER SOURCE | 12V/120W F.NO.5SAAK46A3X102001%

38850-03G00

$75.08

14

SWITCH ASSY,IGNITION | Includes Item(s) 14A This part replaces 37110-38F00.

37110-38F01

$82.20

14A

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

15

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

16

SPRING, STOP LAMP

09443-06016

$3.30

17

SWITCH ASSY, REVERSE | %F.NO.5SAAK46A3X102000

37600-38F00

$109.85

17

SWITCH ASSY, REVERSE | F.NO.5SAAK46A3X102001%

37600-38F10

$109.85

18

RELAY,NEUTRAL START

38730-09F00

$46.55

19

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

20

BRACKET, GEAR IN START

38741-09F00

Unavailable

21

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

21

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

21

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

21

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

22

WIRE, WINCH | MODEL K4/K5/K6/K7

33870-38F00

Unavailable
