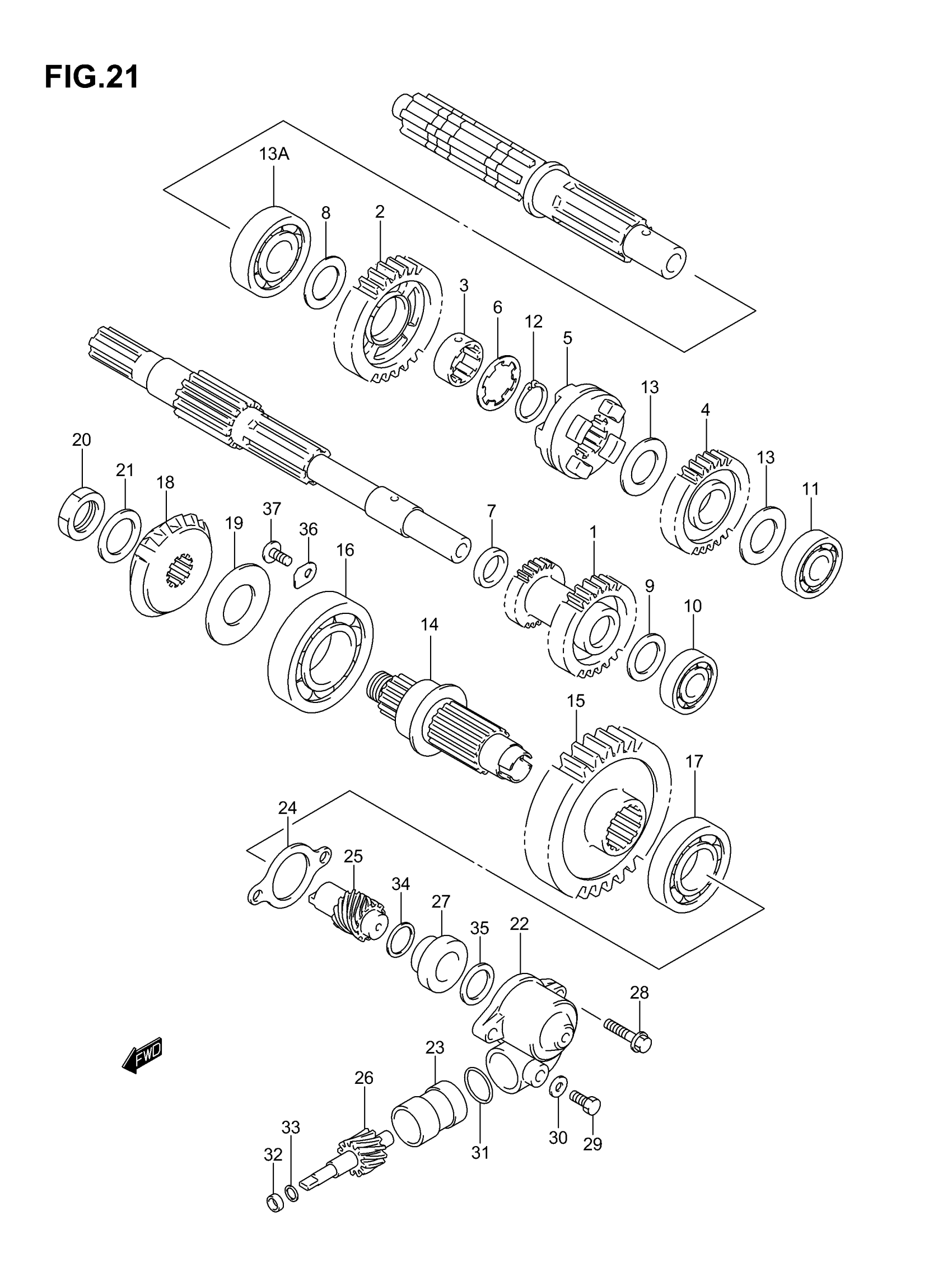

Suzuki LT-F400F (2007) TRANSMISSION (2) Diagram

#

Description
Price

1

GEAR, SUB T/M IDLE | NT:19/13

29150-38F50

Unavailable

2

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-38F50

Unavailable

3

BUSH, SUB DRIVE NO.1

29215-38F50

$30.92

4

GEAR, SUB T/M DRIVE NO.2 | NT:21

29220-38F50

$145.27

5

DOG, SUB T/M SLIDING

29231-44D50

Unavailable

6

WASHER

09167-25016

$4.03

7

SPACER, SUB T/M IDLE | 17X24X4.5

09180-17076

$10.42

8

SPACER, SUB T/M DRIVE

08211-25345

$5.75

9

WASHER, SUB T/M IDLE, LH | 15X26X1.0

09181-15195

$2.59

10

BEARING | 15X42X13.0 This part replaces 09262-15022.

09262-15062

$19.90

11

BEARING, DRIVE SHAFT, LH | 20X47X14.0 This part replaces 09262-20081.

09262-20139

$48.87

12

SNAP RING

09380-25003

$2.80

13

WASHER, DR NO.2 RH/LH

08211-20301

$2.97

13A

BEARING, MIDDLE (25X52X14)

09262-25124

$35.35

14

SHAFT, SUB T/M OUTPUT | MODEL K3/K4 This part replaces 29121-38F50.

29121-38F51

Unavailable

14

SHAFT, SUB T/M OUTPUT | MODEL K5/K6/K7

29121-38F51

Unavailable

15

GEAR, SUB T/M DRIVEN | NT:35

29311-38F51

Unavailable

16

BEARING (35X72X17) | 35X72X17.0 This part replaces 09262-35039.

09262-35038

$42.19

17

BEARING, SUB T/M, LH | 20X52X15.0

09262-20073

$21.00

18

GEAR, SEC DRIVE BEVEL GR | NT:15

24911-44D11

$248.41

19

SHIM SET,SEC DRIVE BEVEL | MODEL K3/K4/K5 T:0.25/0.30/0.35/0.90/0.95/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

$150.17

19

SHIM SET,SEC DRIVE BEVEL | MODEL K6/K7 T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.08/1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1.28/1.30

24935-03811

$150.17

20

NUT, SEC DRIVE BEVEL

09140-20012

$4.70

21

WASHER, SEC DRIVE BEVEL | 20.1X32X1.0

09181-20223

$2.80

22

HOUSING, ODOMETER GEAR

26441-19B01

$71.65

23

SLEEVE

26442-19B00

$45.52

24

GASKET, ODOMETER

26451-19B12

$4.32

25

GEAR, ODOMETER DRIVE

26461-44D00

Unavailable

26

GEAR, ODOMETER DRIVEN

26471-44D00

Unavailable

27

SPACER, ODOMETER DRIVE GEAR

26481-19B00

Unavailable

28

BOLT, GEAR SLEEVE

09103-06201

$2.54

29

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$2.80

30

WASHER (6.2X11X1.2)

09168-06004

$1.43

31

O RING (ID:16.6,DD:1.9)

09280-17004

$3.98

32

SEAL, ODOMETER (5X12X8) | %F.NO.5SAAK46A3X102000

09289-05002

$7.61

32

SEAL, ODOMETER (5X12X8) | F.NO.5SAAK46A3X102001%

09283-05001

$12.58

33

WASHER

08211-08151

$1.42

34

WASHER

08211-15201

$2.58

35

WASHER

08211-17241

$2.53

36

RETAINER, SEC DRIVE SFT

24741-21A00

$2.80

37

SCREW (6X12)

09125-06110

$2.13
