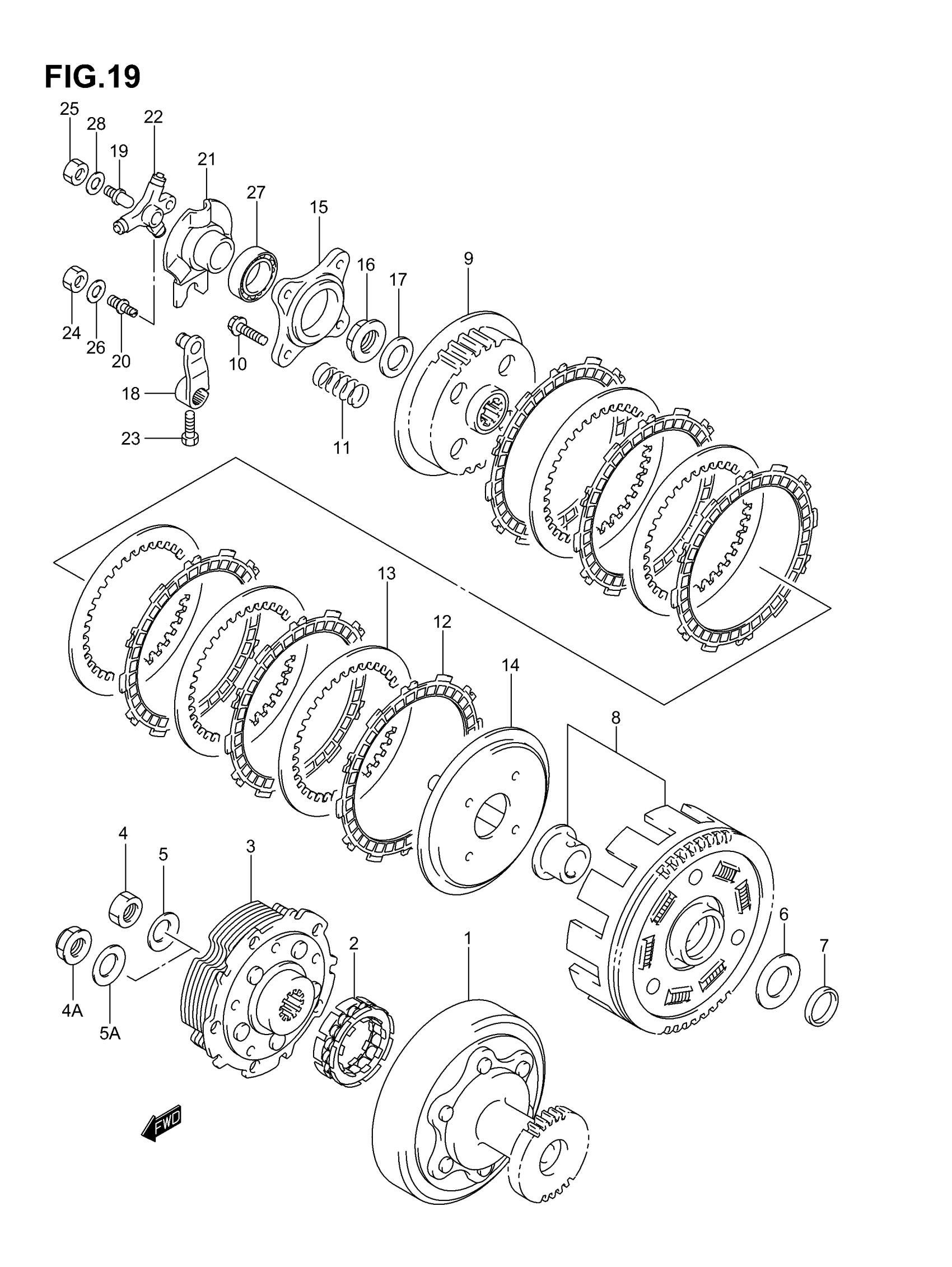

Suzuki LT-F400F (2007) CLUTCH (MODEL K3) Diagram

#

Description
Price

1

HOUSING, STARTER CLUTCH

21120-38F60

$337.40

2

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$126.97

3

SHOE, STARTER CLUTCH | %F.NO.5SAAK46A3X102000

21500-38F50

$467.95

3

SHOE, STARTER CLUTCH | F.NO.5SAAK46A3X102001%

21500-38F60

$436.02

4

NUT, STARTER CLUTCH SHOE | %F.NO.5SAAK46A3X102000

09140-18004

$2.95

4A

NUT,STARTER CLUTCH SHOE | F.NO.5SAAK46A3X102001%

21518-44D00

$12.94

5

LOCK WASHER (ID:18.3) | %F.NO.5SAAK46A3X102000 This part replaces 09164-18007.

09164-18001

$2.97

5A

WASHER, STARTER CLUTCH | F.NO.5SAAK46A3X102001%

09164-20007

$5.00

6

WASHER, PRIMARY DRIVEN THR

09180-22045

Unavailable

7

WASHER, PRIMARY DRIVEN

08211-22423

$4.35

8

GEAR ASSY, PRIMARY DRIVEN

21200-38850

$225.23

9

HUB, CLUTCH SLEEVE

21411-44D00

$159.27

10

BOLT, CLUTCH SPRING (6X25)

09103-06099

$2.43

11

SPRING,CLUTCH

21413-38F50

$9.17

12

PLATE, CLUTCH DRIVE

21441-44D00

$31.45

13

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$10.33

14

DISK,CLUTCH PRESSURE

21462-44D00

Unavailable

15

PLATE, CLUTCH RELEASE

21465-44D00

$26.67

16

NUT,CLUTCH SLEEVE HUB

21414-44D00

$17.02

17

WASHER, CL SLEEVE HUB

09164-20007

$5.00

18

ARM, CLUTCH RELEASE

23220-38F50

Unavailable

19

BOLT, CLUTCH RLSE NO.1

23223-44D11

$9.35

20

BOLT, CLUTCH RLSE NO.2

23224-44D00

$7.57

21

GUIDE, CL RELEASE ROLLER

23230-38F50

Unavailable

22

ROLLER ASSY, CLUTCH RELEASE

23250-38F50

Unavailable

23

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

24

NUT, CLUTCH RELEASE NO.2

09140-06023

$2.07

25

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.12

26

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.45

27

BEARING

08113-69050

$32.64

28

WASHER, CLUTCH RLSE NO.1 | 8X20X1

09160-08103

$1.34
