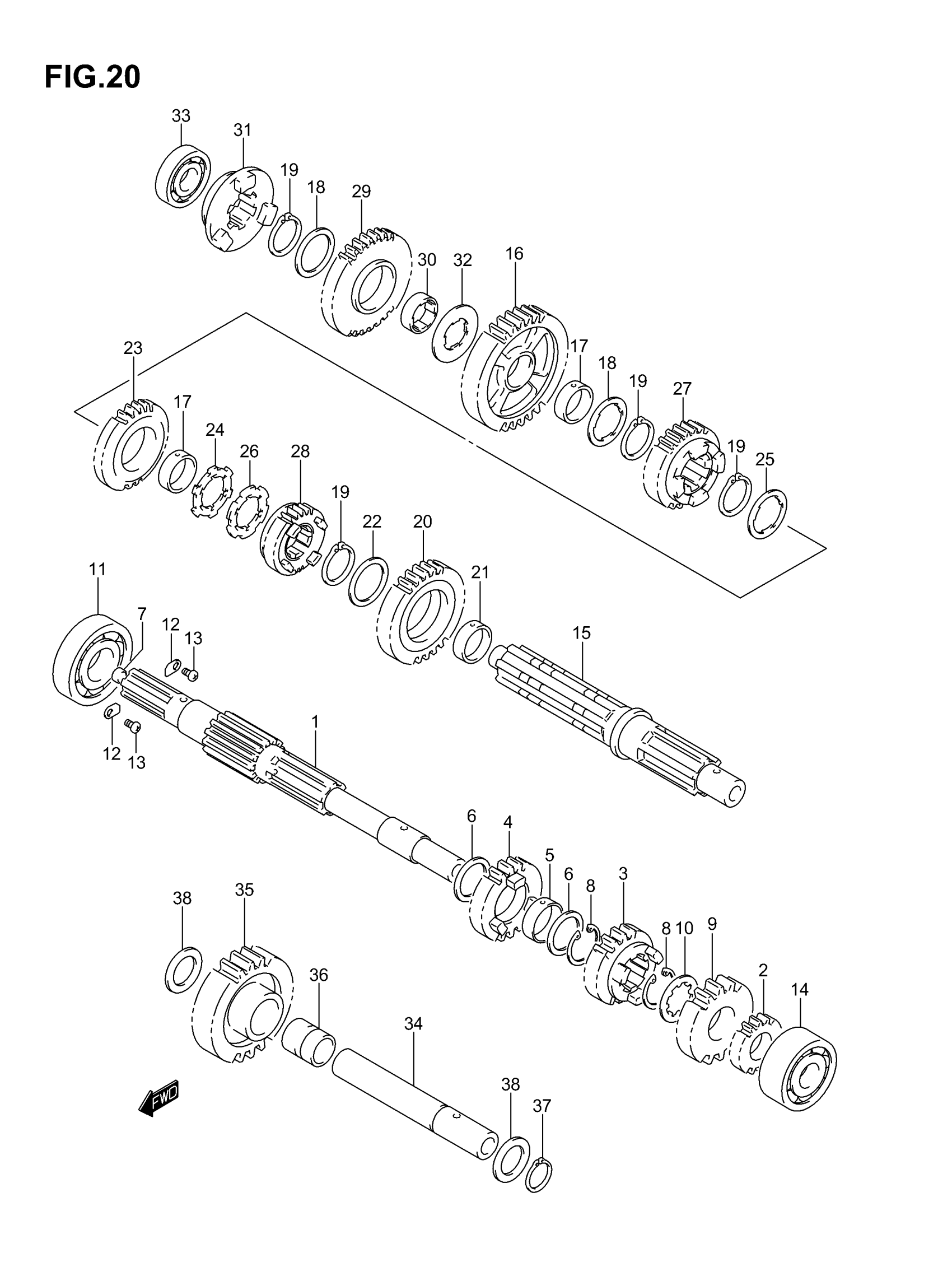

Suzuki LT-F400F (2007) TRANSMISSION (1) Diagram

COUNTERSHAFT (NT:12) This part replaces 24121-38F50.

24121-38F51

$283.10

GEAR, 2ND DRIVE (NT:15)

24221-18A00

$115.77

GEAR,3RD DRIVE This part replaces 24231-18A02.

24231-18A03

$119.97

GEAR, 4TH DRIVE (NT:21)

24241-18A01

$81.80

BUSH

09300-22008

$14.82

WASHER (22X30X1.0)

09181-22167

$2.96

PLUG, COUNTER SHAFT

09241-10003

$2.47

CIRCLIP

09380-22006

$3.10

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-18A02.

24251-18A03

$108.15

WASHER (22.1X27X0.5) | MODEL K3/K4/K5

09167-22013

Unavailable

WASHER (22.1X27X0.5) | MODEL K6/K7

09167-22011

$3.23

BEARING, RH (22X50X14)

09262-22018

$25.60

RETAINER, CNTR SHAFT BRG

24741-21A00

$2.81

SCREW (6X12)

09125-06110

$2.12

BEARING, MIDDLE (17X40X17.5)

09267-17002

$90.35

DRIVE SHAFT

24131-38F50

Unavailable

GEAR, 1ST DRIVEN (NT:37)

24311-18A02

Unavailable

BUSH

24332-24510

$18.67

LOCK WASHER

09167-25016

$3.72

SNAP RING

09380-25003

$3.04

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

$113.25

BUSH

09300-25020

$16.87

WASHER

08211-25351

$3.72

GEAR, 3RD DRIVEN (NT:25)

24331-19B01

$108.65

LOCK WASHER

09169-25001

$2.70

LOCK WASHER, RH

09167-25016

$3.72

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

GEAR, 4TH DRIVEN (NT:23)

24341-18A02

$110.67

GEAR, 5TH DRIVEN (NT:21)

24351-18A02

$110.67

GEAR, REVERSE DRIVEN (NT:34) | MODEL K3

24571-38F50

Unavailable

GEAR, REVERSE DRIVEN (NT:34) | MODEL K4/K5/K6/K7

24571-38F60

Unavailable

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

DOG, REVERSE | MODEL K3

24581-38F50

Unavailable

DOG,REVERSE | MODEL K4/K5/K6/K7

24581-38F60

Unavailable

WASHER (25.1X40X1.5)

09167-25017

$3.87

BEARING, RH (17X35X10)

09262-17026

$36.97

SHAFT, REVERSE IDLE

24551-38F50

Unavailable

GEAR, REVERSE IDLE (NT:29)

24561-19B00

Unavailable

BUSH

09300-17010

Unavailable

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.90

WASHER (17X28X1.0)

09181-17195

$3.07
