2007 Suzuki LT-F400F Suspension Arm Diagram

← All diagrams

Find the part on the Suspension Arm diagram for your 2007 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

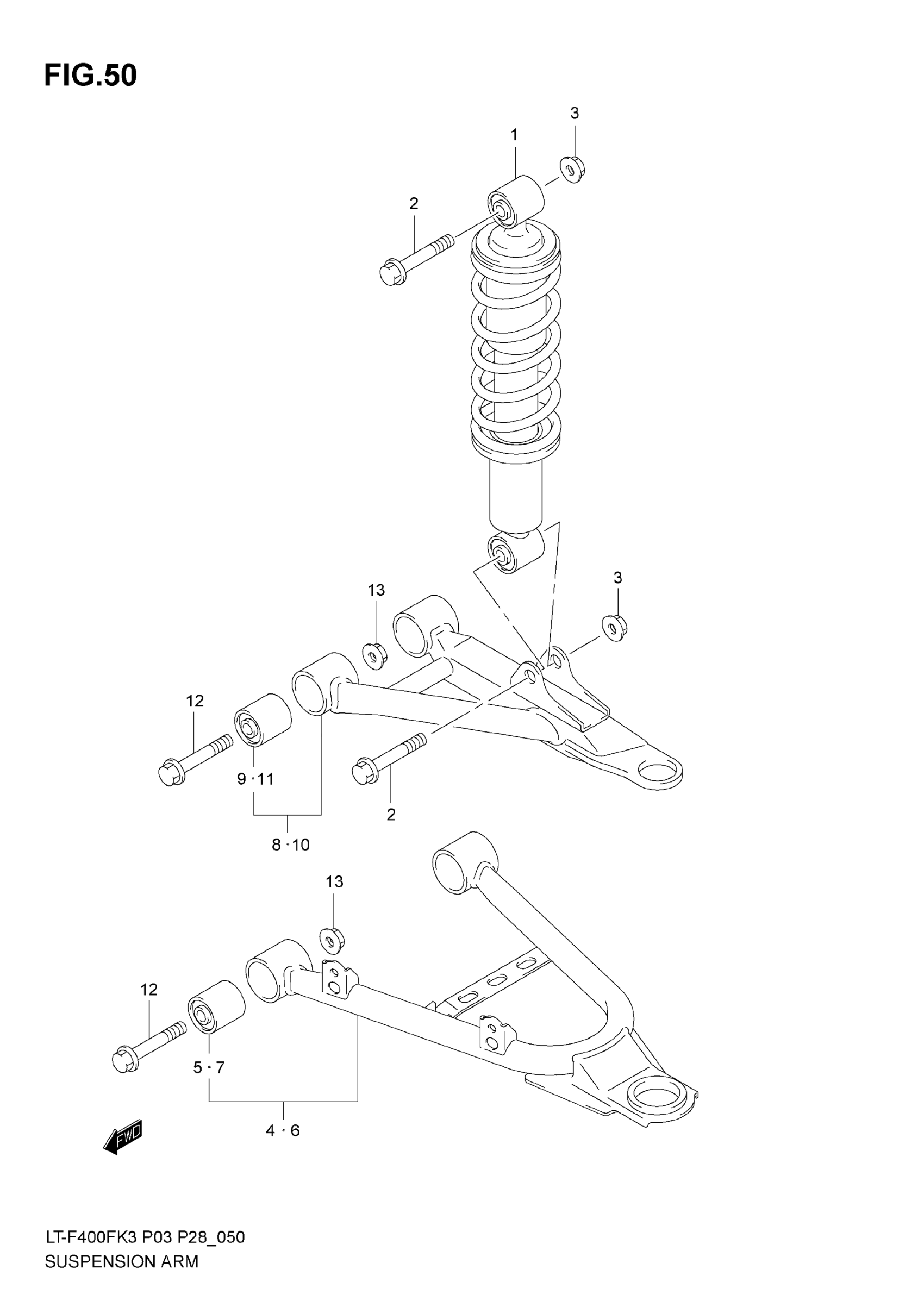

2007 Suzuki LT-F400F Suspension Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | %F.NO.5SAAK46A3X102000

52100-38F10-019

2
Out of stock

1

ABSORBER ASSY, | F.NO.5SAAK46A3X102001% This part replaces 52100-38F60-019.

52100-38F61-019

2
Out of stock

1

ABSORBER ASSY, FRONT SHOCK (BLACK) | MODEL K5

52100-38F80-019

2
Out of stock

1

2

$198.33

In stock

2

BOLT (10X48)

09103-10126

4
Out of stock

3

NUT

08319-31107

2

$2.92

In stock

4

ARM SET, SUSPENSION LOWER RH | %F.NO.5SAAK46A3X102000 This part replaces 52410-38820.

52410-38840

1
Out of stock

4

ARM SET, SUSPENSION LOWER RH | F.NO.5SAAK46A3X102001%; Includes Item(s) 5

52410-38840

1
Out of stock

5

BUSH (10X35.1X38)

09319-10055

2
Out of stock

6

ARM SET, SUSPENSION LOWER LH | %F.NO.5SAAK46A3X102000 This part replaces 52420-38820.

52420-38840

1
Out of stock

6

ARM SET, SUSPENSION LOWER LH | F.NO.5SAAK46A3X102001%; Includes Item(s) 7

52420-38840

1
Out of stock

7

BUSH (10X35.1X38)

09319-10055

2
Out of stock

8

ARM SET, SUSPENSION UPPER RH | %F.NO.5SAAK46A3X102000 This part replaces 52430-38820.

52430-38830

1
Out of stock

8

ARM SET, SUSPENSION UPPER RH | F.NO.5SAAK46A3X102001%; Includes Item(s) 9

52430-38830

1
Out of stock

9

BUSH (10X35.1X38)

09319-10055

2
Out of stock

11

BUSH (10X35.1X38)

09319-10055

2
Out of stock

12

BOLT (10X60)

09103-10301

8

$6.52

In stock

13

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

8
Out of stock
