Partiron

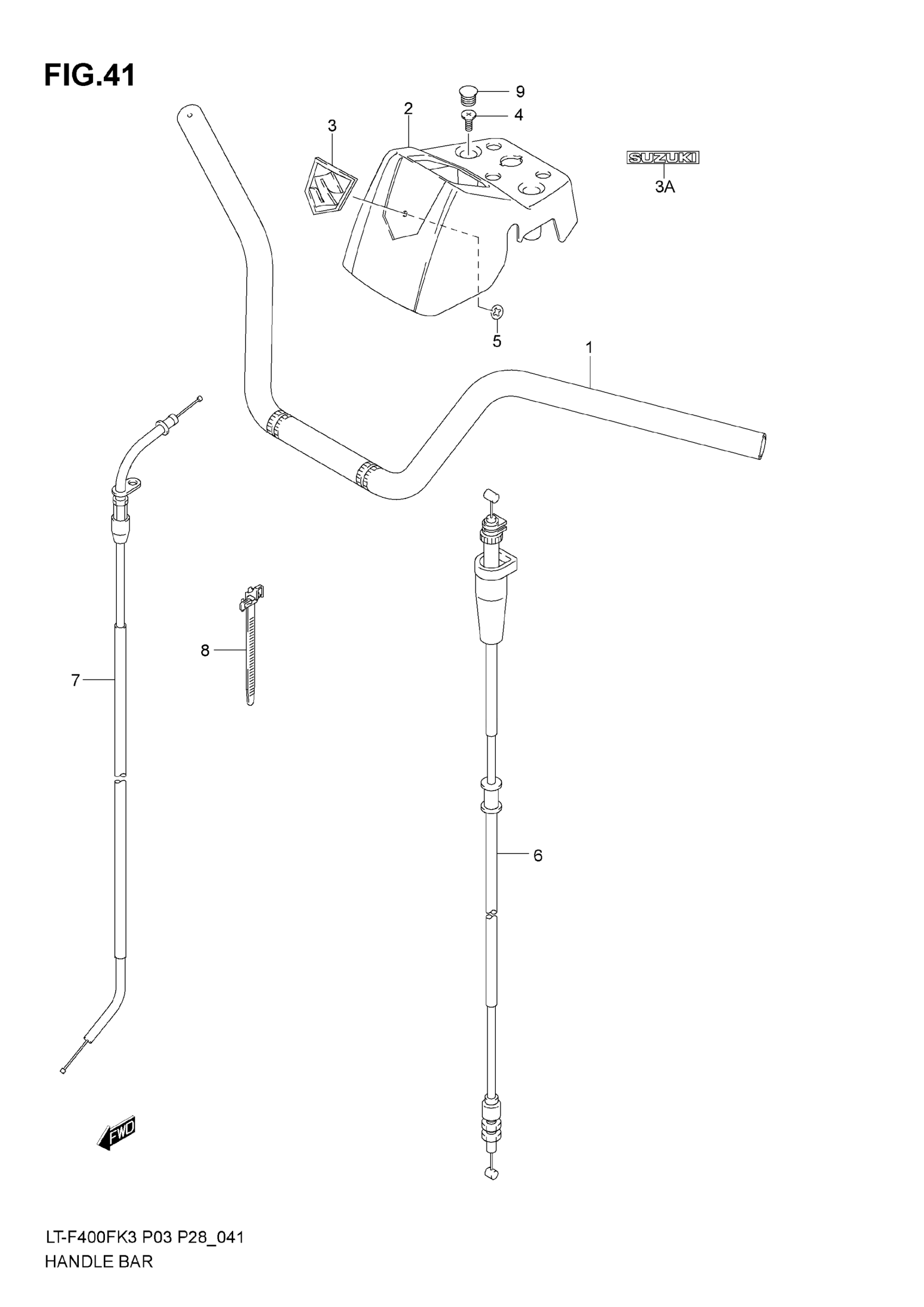

Suzuki LT-F400F (2007) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR | %F.NO.5SAAK46A3X102000

56111-38F00

Unavailable

1

HANDLE BAR | F.NO.5SAAK46A3X102001% This part replaces 56111-38F10.

56111-38F21

$42.16

1

HANDLE BAR | MODEL K4 This part replaces 56111-38F20.

56111-38F21

$42.16

1

HANDLE BAR | MODEL K5/K6/K7

56111-38F21

$42.16

2

COVER, STEERING | MODEL K3/K4 This part replaces 56171-38F00.

56171-38FB0

$17.82

2

COVER, STEERING | MODEL K5/K6/K7 This part replaces 56171-38FA0.

56171-38FB0

$17.82

3

EMBLEM | MODEL K3/K4

68151-38F00

$40.32

3A

EMBLEM,SUZUKI | MODEL K5/K6/K7 This part replaces 68721-05D00-8YM.

68721-05D01-8YM

$10.52

4

SCREW, COVER

09139-06072

$3.02

5

NUT This part replaces 09148-05006.

09148-05012

$1.77

6

CABLE ASSY, THROTTLE | MODEL K3

58300-38F00

$49.63

6

CABLE ASSY, THROTTLE | MODEL K4

58300-38F10

$33.55

6

CABLE ASSY, THROTTLE | MODEL K5/K6/K7

58300-38F20

$51.20

7

CABLE, STARTER | MODEL K3/K4

58410-38F00

$55.32

7

CABLE, STARTER | MODEL K5/K6/K7

58410-38F10

$52.92

8

CLAMP

09407-14403

$2.24

9

PLUG, HEAD COVER

09250-22002

$2.00
