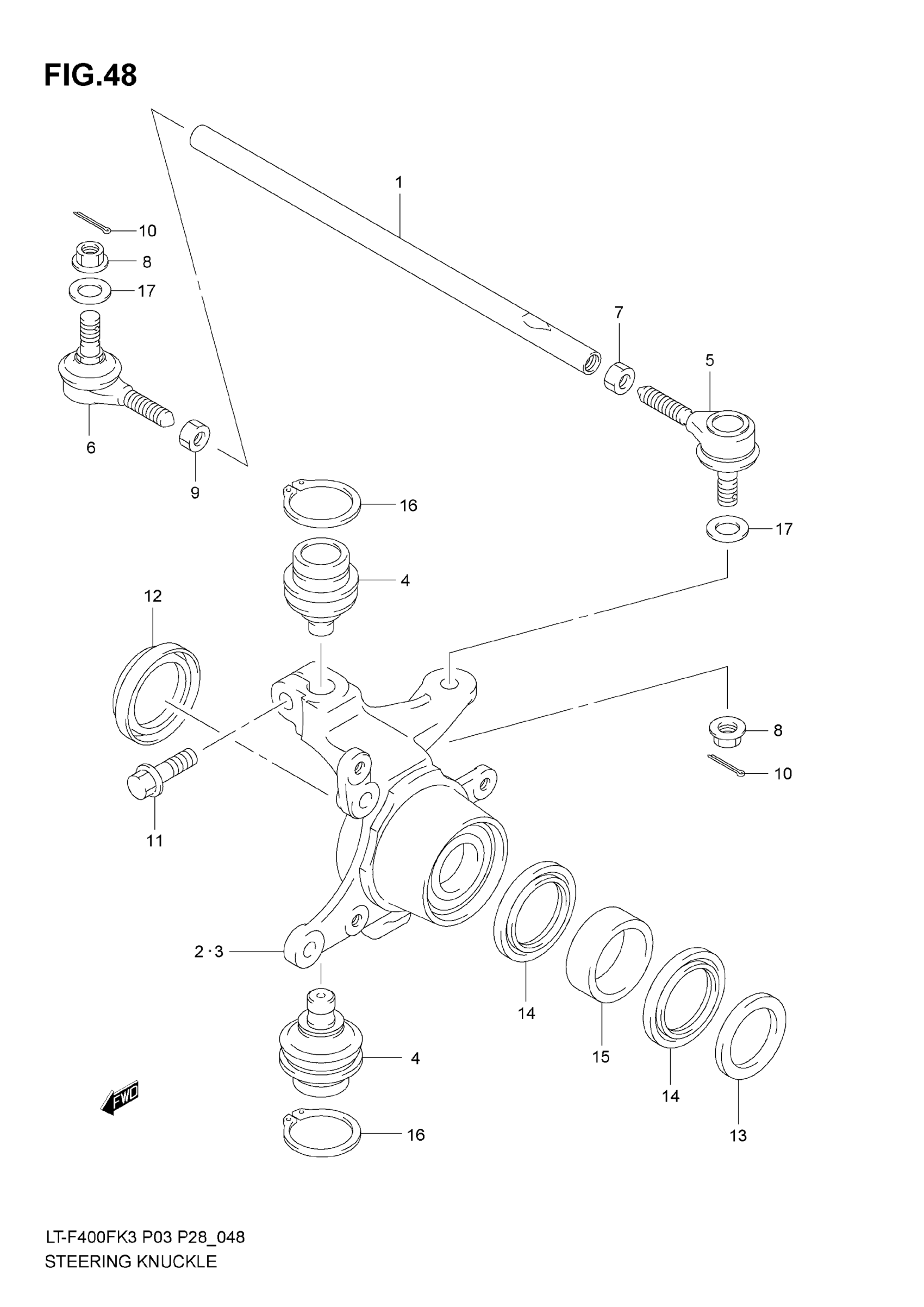

Suzuki LT-F400F (2007) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-38F00

$32.00

2

KNUCKLE, STEERING RH | MODEL K3/K4

51231-03G10

Unavailable

2

KNUCKLE, STEERING RH | MODEL K5/K6/K7

51231-38F50

Unavailable

3

KNUCKLE, STEERING LH | MODEL K3/K4

51241-03G10

$81.57

3

KNUCKLE, STEERING LH | MODEL K5/K6/K7

51241-38F50

Unavailable

4

END,KNUCKLE STEERING

51210-38F00

$65.76

5

ROD, END RH | MODEL K3/K4

51260-38F10

$81.22

5

ROD, END RH | MODEL K5/K6/K7

51260-21G00

$66.46

6

ROD, END LH | MODEL K3/K4

51270-38F10

$81.22

6

ROD, END LH | MODEL K5/K6/K7

51270-21G00

$66.46

7

NUT, TIE ROD RH | MODEL K3/K4

09140-10043

$2.68

7

NUT, TIE-ROD RH | MODEL K6/K7

51283-21G00

$4.17

8

NUT, REAR SWGARM BRACKET | MODEL K3/K4 This part replaces 09159-10058.

09159-10115

$3.55

8

NUT | MODEL K5/K6/K7 This part replaces 08314-40103.

08314-4010B

$2.50

9

NUT, TIE ROD LH

09140-10027

$1.49

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

BOLT, KNUCKLE (10X30)

51233-09F00

$5.62

12

DUST SEAL, INNER (38X55X8)

09283-38012

$14.74

13

DUST SEAL, OUTER (38X55X7.5)

09283-38022

$13.01

14

BEARING

08123-60067

$29.13

15

SPACER,HUB BEARING

54731-03G00

$11.64

16

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.57

17

WASHER, ROD END | MODEL K3/K4

09181-11001

$4.90

17

WASHER, ROD END | MODEL K5/K6/K7

09162-10010

$3.72
