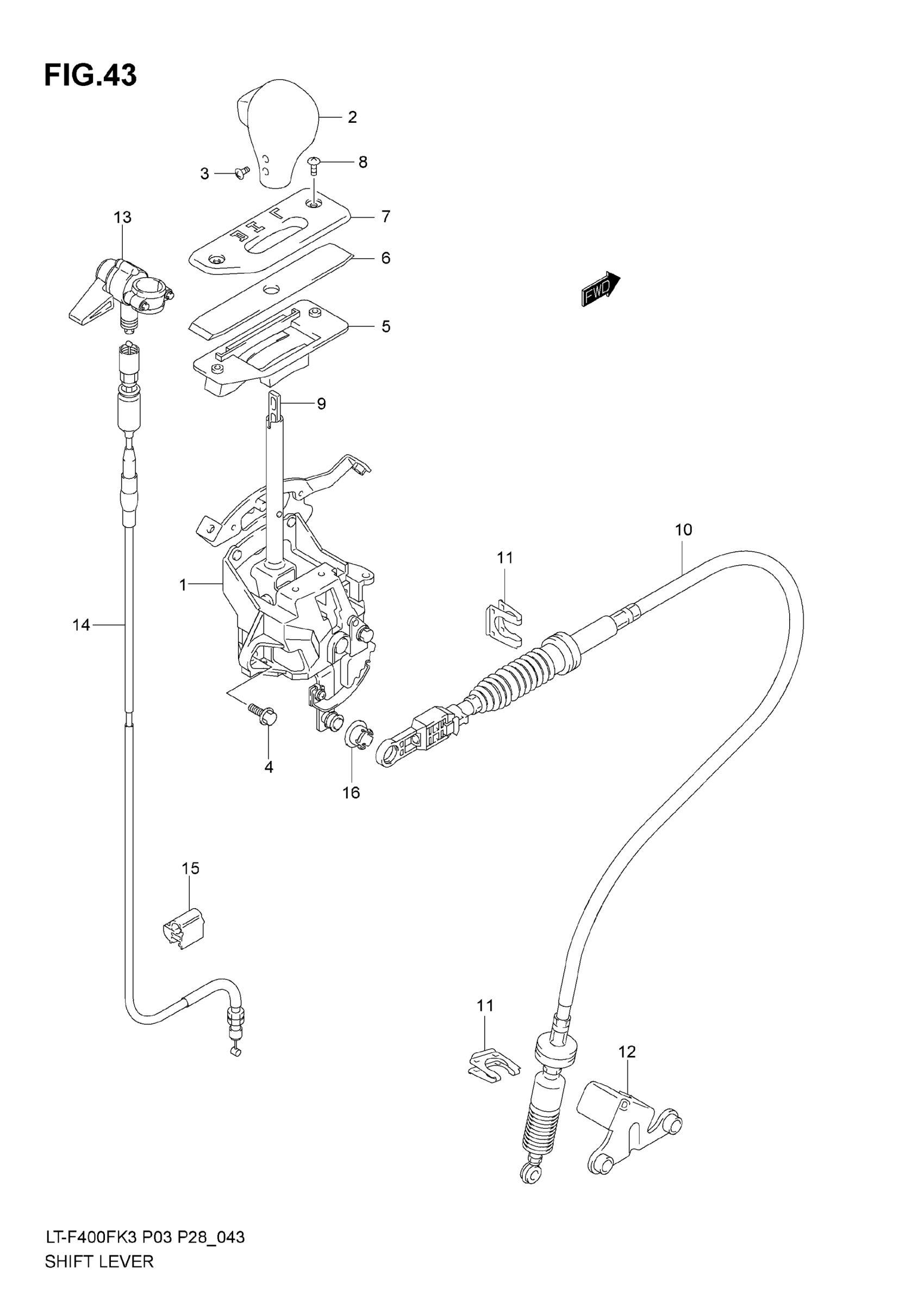

Suzuki LT-F400F (2007) SHIFT LEVER Diagram

#

Description
Price

1

LEVER ASSY, TRANSMISSION | MODEL K3 This part replaces 57800-38F50.

57800-38F51

Unavailable

1

LEVER ASSY, TRANSMISSION | MODEL K4/K5/K6/K7

57800-38F51

Unavailable

2

KNOB, T/M LEVER | MODEL K3 This part replaces 57830-38F10.

57830-38F11

$47.20

2

KNOB, T/M LEVER | MODEL K4/K5/K6/K7

57830-38F11

$47.20

3

SCREW,4X6 | MODEL K3 This part replaces 09125-04035.

09125-04035-XC0

$2.30

3

SCREW | MODEL K4/K5/K6/K7

09139-04007

$2.50

4

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

5

HOLDER, LEVER

57981-38F50

$26.27

6

SLIDER, LEVER

57971-38F00

Unavailable

7

COVER, LEVER

57962-38F50

$13.82

8

SCREW

09132-05050

$1.92

9

ROD, DETENT

57863-38F00

$8.65

10

CABLE,T/M GEAR | %F.NO.5SAAK46A3X102000 This part replaces 58680-38F10.

58680-38F11

$87.82

10

CABLE, T/M GEAR SHIFT | F.NO.5SAAK46A3X102001%

58680-38F50

$121.98

10

CABLE, T/M GEAR SHIFT | MODEL K4/K5/K6/K7

58680-38F70

$119.72

11

CLIP

28375-78A00

$5.17

12

PLATE,T/M CABLE | %F.NO.5SAAK46A3X102000 This part replaces 58620-38F11.

58620-38F1V

Unavailable

12

BRACKET, T/M CABLE | F.NO.5SAAK46A3X102001%

58620-38F50

Unavailable

13

LEVER, TRANSFER | %F.NO.5SAAK46A3X102000 This part replaces 57920-38F00.

57920-38F11

$222.47

13

LEVER, TRANSFER | F.NO.5SAAK46A3X102001% This part replaces 57920-38F10.

57920-38F11

$222.47

13

LEVER, TRANSFER | MODEL K6/K7

57920-38F11

$222.47

14

CABLE, TRANSFER SHIFT

58690-38F00

$70.49

15

CLAMP

09403-05406

$2.53

16

BUSH, T/M CABLE

58821-03G00

$4.03
