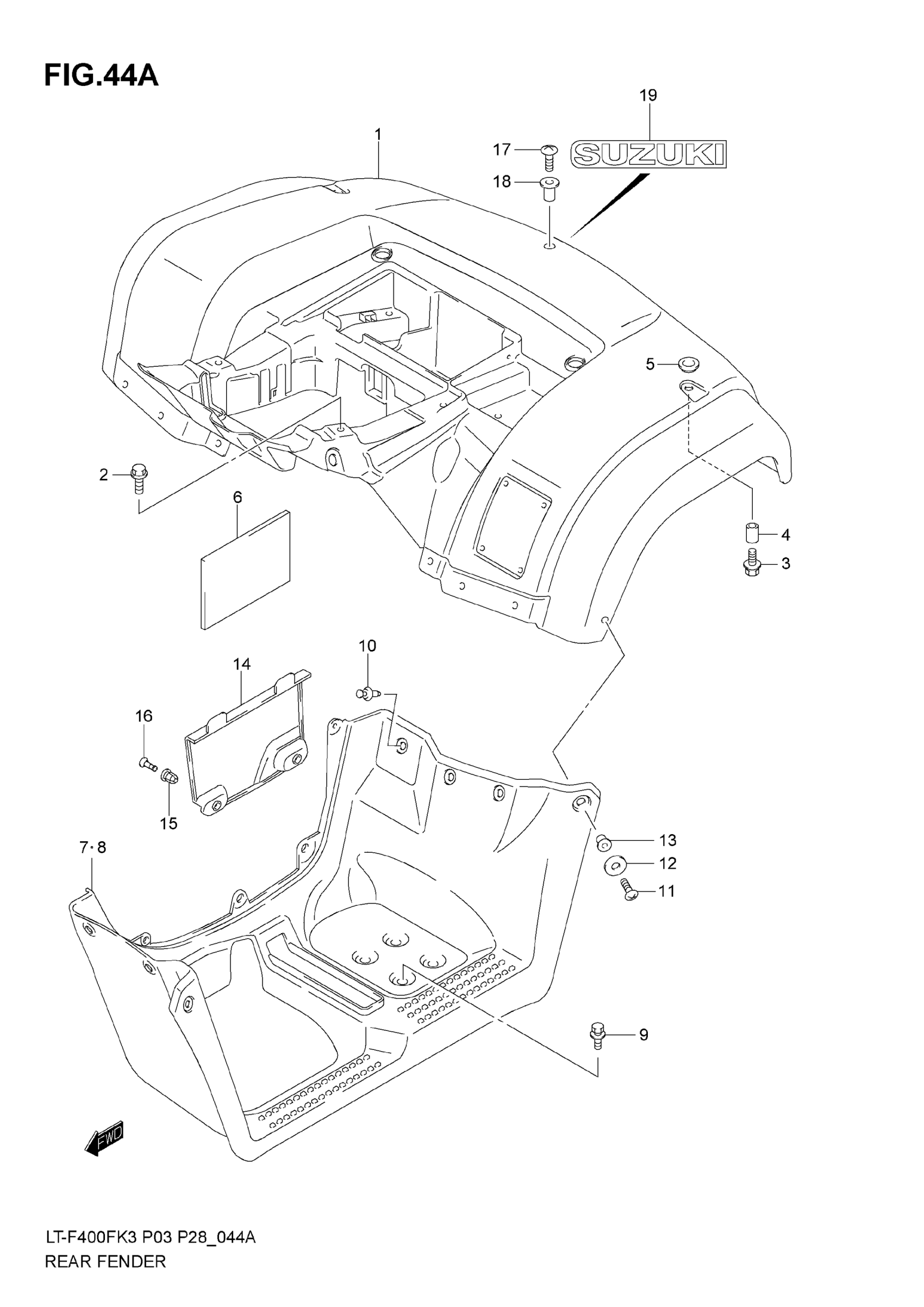

Suzuki LT-F400F (2007) REAR FENDER (MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

FENDER, REAR | MODEL K4/K5 This part replaces 63111-38F40-YT8.

63111-38F21-YT8

Unavailable

1

FENDER, REAR This part replaces 63111-38F40-YT9.

63111-38F41-YT9

Unavailable

1

FENDER, REAR YE | MODEL K4/K5 This part replaces 63111-38F40-YU1.

63111-38F41-YU1

$620.78

1

NO DESCRIPTION AVAILABLE | MODEL K4/K5/K6 P28 This part replaces 63111-38FC0-YDH.

63111-38FC1-YDH

Unavailable

1

FENDER,REAR | MODEL K6 This part replaces 63111-38F40-019.

63111-38F41-YLZ

Unavailable

1

FENDER, REAR (G | MODEL K6/K7 This part replaces 63111-38F40-YLG.

63111-38F41-YLG

$404.17

1

FENDER,REAR | MODEL K7 This part replaces 63111-38F40-YLZ.

63111-38F41-YLZ

Unavailable

1

REAR FENDER (CA | P33 F.NO.5SAAK46K571015% This part replaces 63111-38FC0-YKL.

63111-38FC1-YKL

Unavailable

1

NO DESCRIPTION AVAILABLE | P33 %F.NO.5SAAK46K571014 This part replaces 63111-38FC0-YDH.

63111-38FC1-YDH

Unavailable

1

REAR FENDER (CA | MODEL K7 This part replaces 63111-38FC0-YKL.

63111-38FC1-YKL

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K7 This part replaces 63111-38FC0-YDH.

63111-38FC1-YDH

Unavailable

2

BOLT, FRONT | MODEL K4/K5/K6

09116-06168

$2.50

2

BOLT, FRONT | MODEL K7

09116-06213

$3.42

3

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

4

SPACER

09169-06074

$7.49

5

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$3.77

6

SHIELD

63268-09F00

$29.67

7

MUDGUARD,FOOTRE | MODEL K4/K5/K6 This part replaces 63331-38F11-291.

63331-38F13-291

Unavailable

7

MUDGUARD,FOOTRE | MODEL K7 This part replaces 63331-38F12-291.

63331-38F13-291

Unavailable

8

MUDGUARD,FOOTRE This part replaces 63341-38F11-291.

63341-38F12-291

Unavailable

9

BOLT (6X16.5) | MODEL K4/K5/K6 This part replaces 09111-06061.

09111-06094

$2.06

9

BOLT, GUARD | MODEL K7

09111-06095

$2.13

10

CLIP

09409-08335

$2.44

11

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.77

12

WASHER

09160-05046

$1.90

13

NUT

09159-05019

$6.44

14

LID

63332-38F10

$24.46

15

GROMMET

09409-08329

$2.54

16

PLUNGER

09409-08330

$2.56

17

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.77

18

NUT

09159-05019

$6.44

19

EMBLEM, REAR (SILVER) | MODEL K4/K5/K6 FOR YT8,YT9,YU1,019

68171-38F00-20H

$14.71

19

EMBLEM, REAR (SILVER) | MODEL K4/K5/K6 FOR YDH,YKL

68171-38FA0-20H

Unavailable

19

EMBLEM, REAR (SILVER) | MODEL K7 FOR YT9,YLG,YLZ

68171-38F00-YD8

Unavailable

19

EMBLEM, REAR (SILVER) | MODEL K7 FOR YDH,YKL

68171-38FA0-YD8

Unavailable
