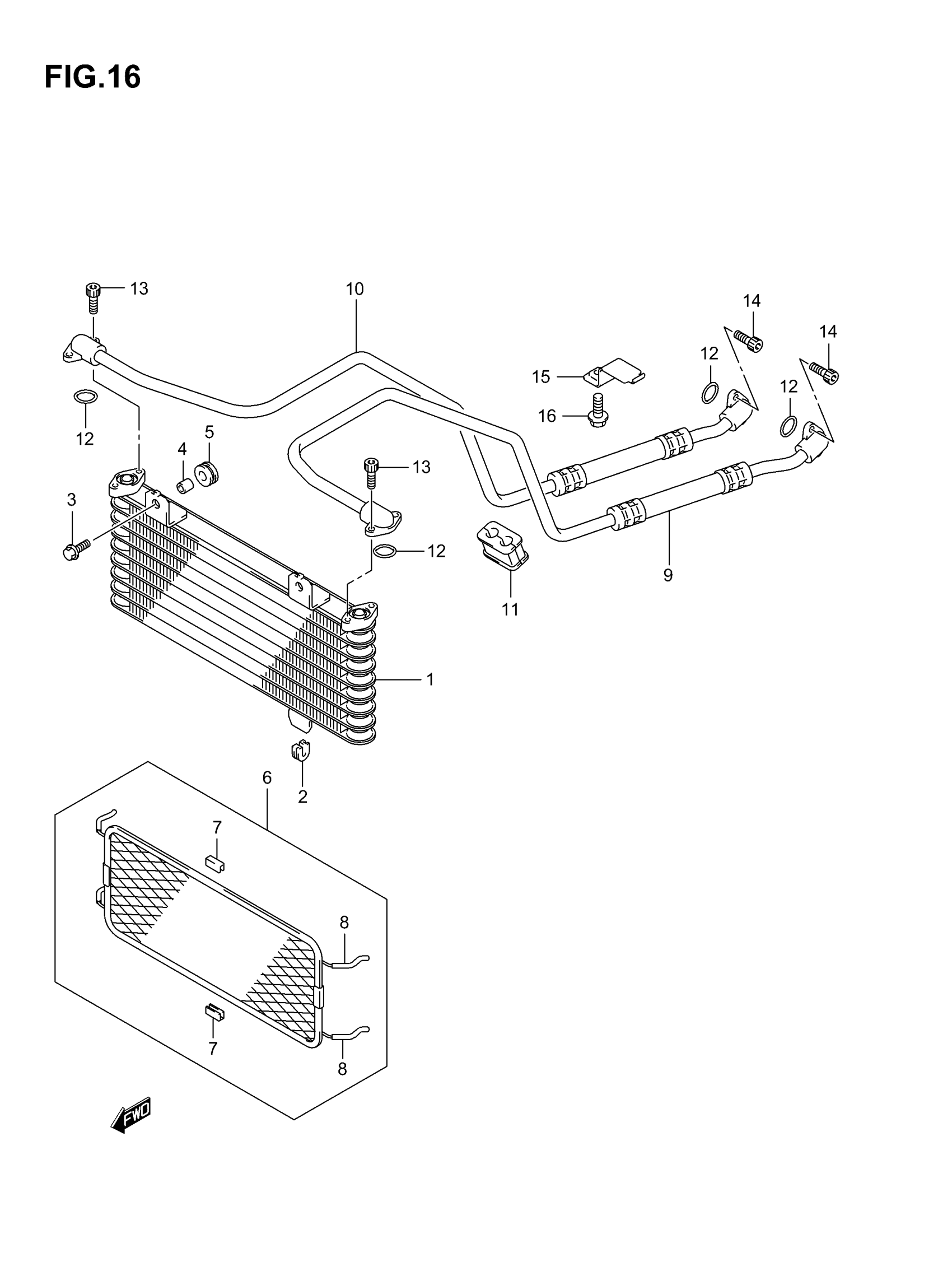

Suzuki LT-F400F (2007) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY,OIL | %F.NO.5SAAK46A3X102000 This part replaces 16600-38F00.

16600-38F22

$172.62

1

COOLER ASSY,OIL | F.NO.5SAAK46A3X102001% This part replaces 16600-38F10.

16600-38F22

$172.62

1

COOLER ASSY,OIL | MODEL K4/K5/K7 This part replaces 16600-38F20.

16600-38F22

$172.62

2

CUSHION, OIL COOLER

16628-27A00

$2.92

3

BOLT (6X25) This part replaces 09116-06146.

09116-06150

$2.59

4

SPACER (6.5X10X10)

09180-06310

$1.91

5

CUSHION

09320-10015

$2.54

6

GUARD, OIL COOLER | Includes Item(s) 7 - 8

16650-38F00

Unavailable

7

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

8

.HOSE (3X5X600) | L:600!40 This part replaces 09352-30503-600.

09352-30504-600

$4.91

9

HOSE,OIL COOLER INLET | %F.NO.5SAAK46A3X102000 This part replaces 16460-38F00.

16460-38F10

$59.93

9

HOSE,OIL COOLER INLET | F.NO.5SAAK46A3X102001%

16460-38F10

$59.93

10

HOSE,OIL COOLER OUTLET | %F.NO.5SAAK46A3X102000 This part replaces 16470-38F00.

16470-38F10

$60.37

10

HOSE,OIL COOLER OUTLET | F.NO.5SAAK46A3X102001%

16470-38F10

$60.37

11

GROMMET,OIL HOSE This part replaces 16468-38F00.

16468-38F01

$7.48

12

O RING (D:2.4,ID:12.3)

09280-12008

$2.76

13

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

14

BOLT, LOWER

09106-06073

$2.39

15

CLAMP,OIL HOSE

16490-38F00

Unavailable

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
