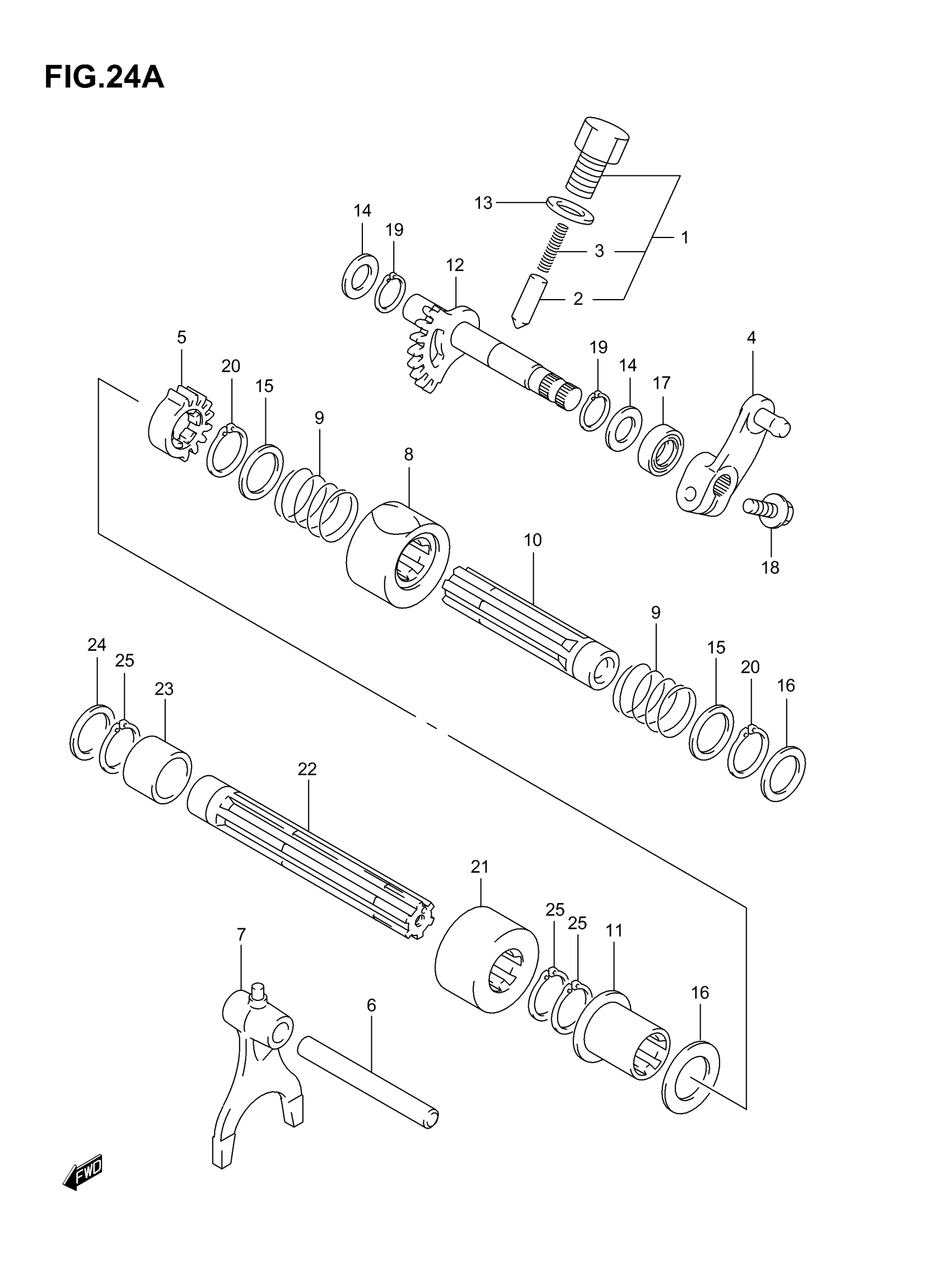

Suzuki LT-F400F (2007) GEAR SHIFTING (2)(MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

STOPPER, SUB T/M SHIFT CAM | Includes Item(s) 2 - 3

25350-38F50

$27.85

2

STOPPER

25351-38F50

$12.58

3

SPRING

29613-38F50

$3.95

4

ARM, SUB T/M GEAR SHIFT

25360-38F60

Unavailable

5

PLATE, SUB T/M GEAR

25381-38F50

$39.97

6

SHAFT, SUB T/M GEAR

25411-13A01

Unavailable

7

FORK,SUB T/M GEAR SHIFT

29511-38F50

Unavailable

8

CAM, SUB T/M GEAR

29611-38F50

Unavailable

9

SPRING, SUB T/M SHIFT

29612-38F50

$4.52

10

SHAFT,SUB T/M GEAR SHIFT

29620-38F50

Unavailable

11

JOINT,SHIFT CAM SHAFT

29625-38F50

Unavailable

12

SHAFT, SUB T/M NO.2

29640-38F50

$81.32

13

GASKET, SUB T/M SHIFT | 13.8X18.8X0.4

09168-14002

$2.26

14

WASHER SUB T/M NO.2 | 12X20X1.0

09181-12167

$2.26

15

WASHER, SHIFT CAM | 20X26X1.0

09181-20139

$2.62

16

WASHER, SUB T/M SHIFT | 20X34X1.0

09181-20251

$2.79

17

OIL SEAL (12X22X9)

09285-12006

$6.32

18

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

19

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

20

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-31206.

08331-3120A

$2.03

21

CAM, REVERSE SHIFT

25321-38F60

Unavailable

22

SHAFT, REVERSE SHIFT

25531-38F50

Unavailable

23

SPACER, REVERSE SHIFT

25532-38F60

Unavailable

24

WASHER, REVERSE SHAFT | 20X28X1.0

09181-20167

$2.62

25

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-31206.

08331-3120A

$2.03
