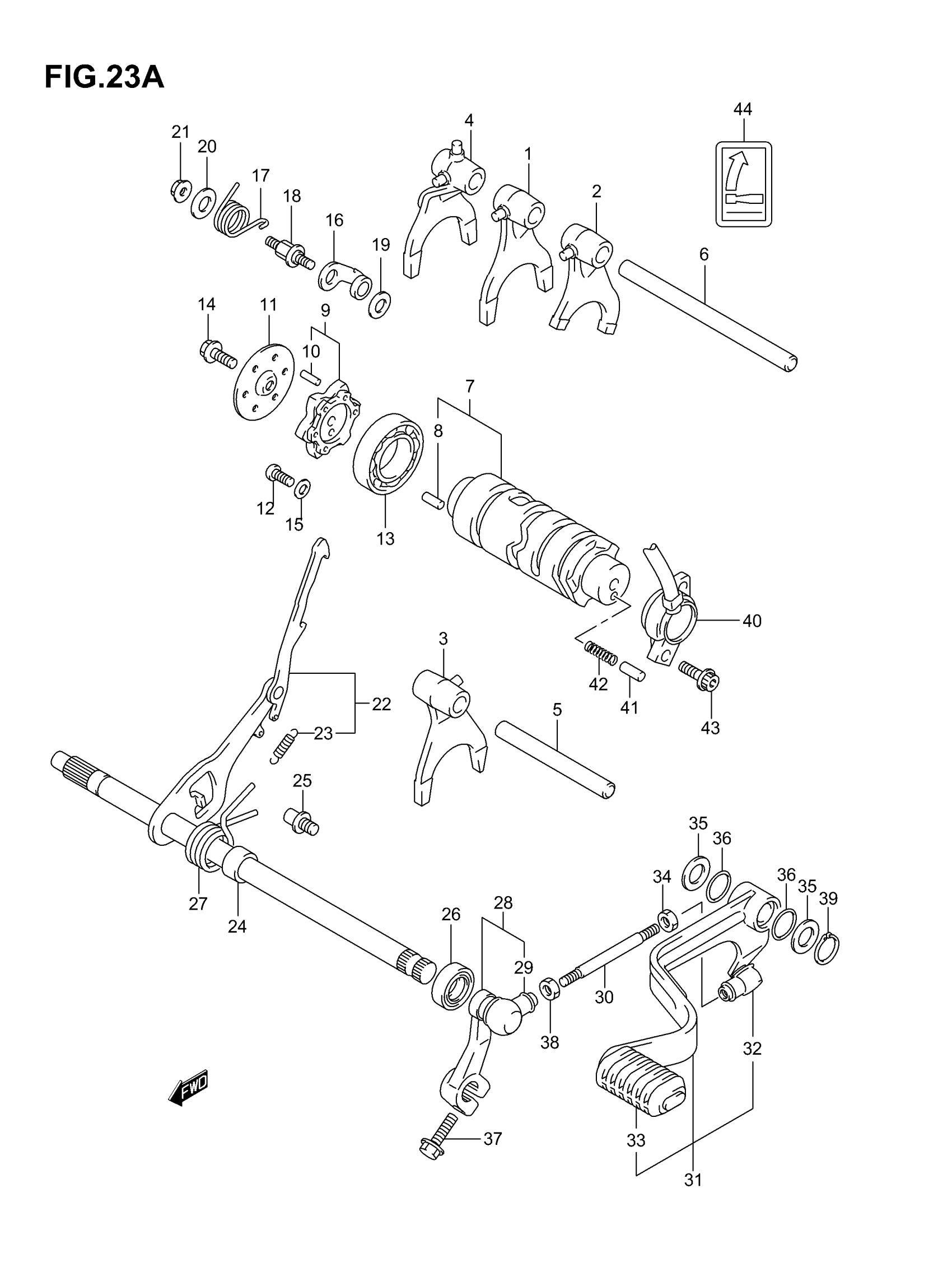

Suzuki LT-F400F (2007) GEAR SHIFTING (1)(MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

FORK, GEAR SHIFT, NO.1

25211-19B00

$98.98

2

FORK, GEAR SHIFT, NO.2

25221-19B00

$54.44

3

FORK, GEAR SHIFT, NO.3

25231-19B00

$98.98

4

FORK, GEAR SHIFT, REVERSE

25240-38F60

$120.15

5

SHAFT, GEAR SHIFT FORK NO.2

25411-14311

$26.03

6

SHAFT, GEAR SHIFT FORK NO.1

25411-18900

$26.03

7

CAM,GEAR SHIFT | Includes Item(s) 8

25310-38F50

Unavailable

8

PIN (4X13.8)

04221-04089

$1.10

9

PLATE,GEAR SHIFT CAM | Includes Item(s) 10

25380-44D00

$35.73

10

ROLLER (4X13.8)

09261-04002

$1.87

11

GUIDE, GEAR SHIFT

25382-44D00

$8.13

12

SCREW (6X12)

09125-06110

$2.13

13

BEARING, GEAR SHIFT CAM | 25X47X8.0

09262-25006

$23.05

14

BOLT

01500-0620A

$1.77

15

RETAINER, GR

08211-06165

Unavailable

16

STOPPER, GEAR SHIFT CAM

25350-24B00

$16.77

17

SPRING.GEAR SHIFT

25355-38F60

Unavailable

18

SUPPORT, GEAR SHIFT

25356-12C00

$19.60

19

WASHER

08211-06141

$1.61

20

WASHER

08211-06181

$1.79

21

NUT

08316-1006A

$2.19

22

SHAFT,GEAR SHIFT | Includes Item(s) 23

25510-38F60

$139.65

23

SPRING

25518-38F50

$5.83

24

SPACER, GEAR SHIFT

25516-44D00

Unavailable

25

STOPPER, GEAR SHIFT

25671-36A00

$6.10

26

OIL SEAL (14X22X6)

09283-14006

$6.04

27

SPRING

09444-26025

$5.80

28

ARM,GEAR SHIFT LINK | Includes Item(s) 29 This part replaces 25520-38F60.

25520-38F61

$83.83

29

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

30

ROD,GEAR SHIFT LINK

25525-26B10

$10.15

31

LEVER ASSY,GEAR | Includes Item(s) 32 - 33 This part replaces 25600-38F60.

25600-38F61

$113.20

32

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

33

RUBBER

25652-24401

$4.63

34

NUT

09140-06025

$1.84

35

WASHER (12X20X1.0)

09181-12167

$2.24

36

O RING (D:2.20,ID:11.8)

09280-12006

$1.50

37

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

38

.NUT

08310-00067

$1.83

39

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77

40

BASE ASSY, NEUT SW TERMINAL

37720-38F10

$139.25

41

CONTACT

09209-05011

$2.02

42

SPRING

09440-04010

$1.52

43

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.62

44

LABEL, GEAR SHIFT PATTERN

68392-24210

$2.80

44

LABEL, GEAR SHIFT PATTERN | P28

68392-24220

$3.67
