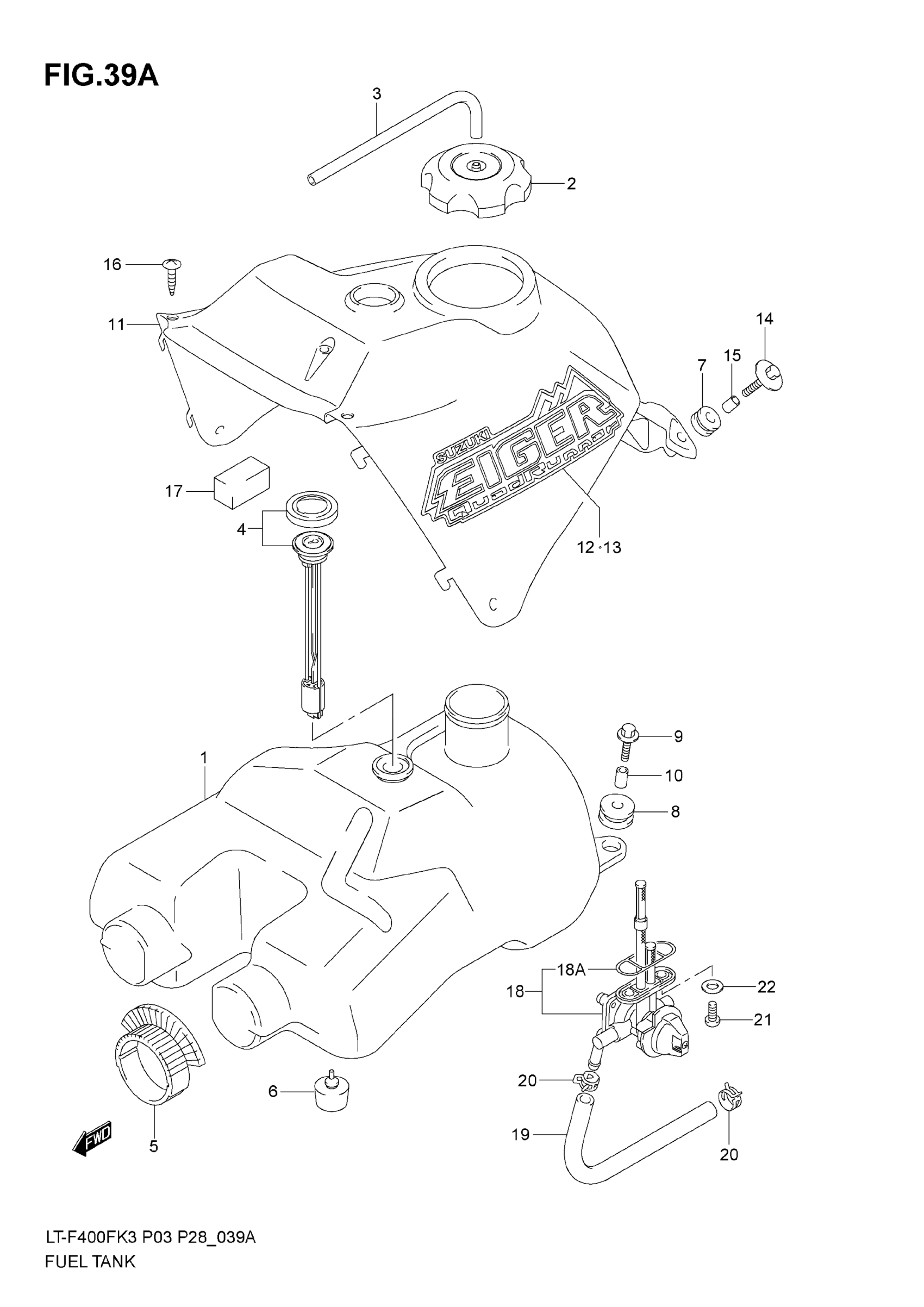

Suzuki LT-F400F (2007) FUEL TANK (MODEL K4) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-38F00

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

GAS GAUGE, FUEL This part replaces 44580-38F01.

44580-38F02

$63.44

5

CUSHION,FUEL TANK FR This part replaces 44511-38F00.

44511-38F01

$19.57

6

CUSHION,FUEL TANK LWR This part replaces 44543-38F00.

44543-38F01

$6.99

7

CUSHION, SEAT MOUNT

45141-09F00

$4.99

8

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

9

BOLT

09116-06050

$2.26

10

SPACER

44544-38F00

$8.77

11

COVER, TANK (GREEN)

44271-38F10-YT8

$62.20

11

COVER, TANK (RED)

44271-38F10-YT9

$66.67

11

COVER, TANK (YELLOW)

44271-38F10-YU1

$58.55

11

COVER, TANK (CAMOUFLAGE)

44271-38FC0-YDH

Unavailable

12

EMBLEM,FUEL TAN This part replaces 68111-38F10-MV6.

68111-38F11-MV6

$46.63

12

EMBLEM, COVER RH | FOR YDH

68111-38FA0-AWT

Unavailable

13

EMBLEM,FUEL TAN This part replaces 68121-38F10-MV6.

68121-38F11-MV6

$47.18

13

EMBLEM, COVER LH | FOR YDH

68121-38FA0-AWT

Unavailable

14

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

15

SPACER

09180-06267

$4.10

16

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

17

CUSHION, FRONT This part replaces 47161-04A00.

47191-22D00

$5.02

18

COCK ASSY,FUEL | Includes Item(s) 18A This part replaces 44300-38F20.

44300-38F21

$131.53

18A

O RING

44348-38F00

$5.05

19

HOSE, FUEL

44421-38F20

$19.01

20

CLIP This part replaces 09401-11407.

09401-11415

$2.23

21

BOLT

09103-06277

$2.28

22

GASKET

09168-06026

$3.10
