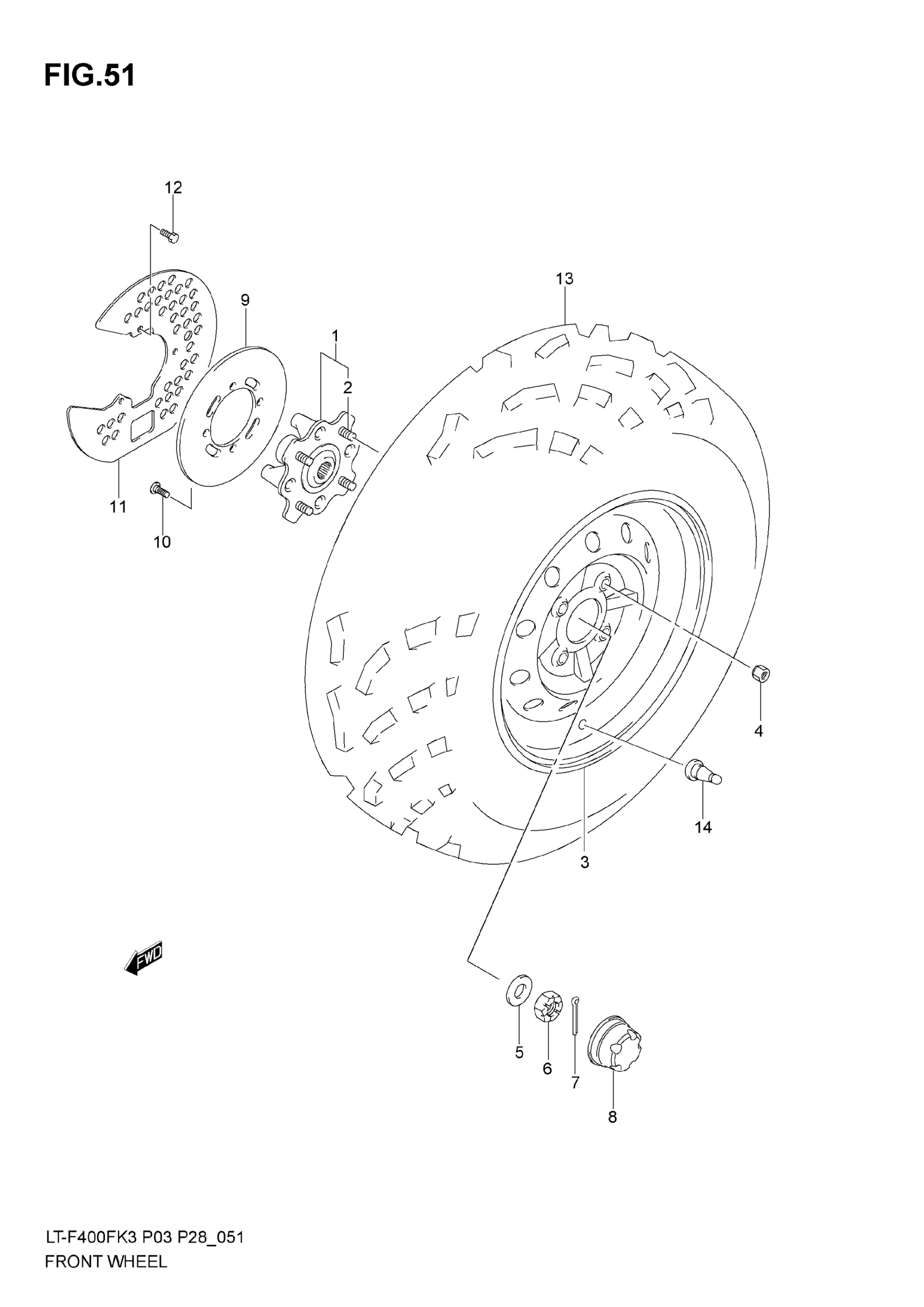

Suzuki LT-F400F (2007) FRONT WHEEL Diagram

#

Description
Price

1

HUB CMPL,FR WHE | %F.NO.5SAAK46A3X102000 This part replaces 54110-38F00.

54110-38F20

$106.97

1

HUB CMPL,FR WHE | F.NO.5SAAK46A3X102001%; Includes Item(s) 2 This part replaces 54110-38F11.

54110-38F20

$106.97

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.26

3

RIM, FRONT WHEEL (12X6.0AT) (BLACK) | MODEL K3/K4/K5 This part replaces 55310-38F00-YL8.

55310-38F30-291

$181.39

3

RIM, FRONT WHEEL (12X6.0AT) (BLACK) | MODEL K6/K7 This part replaces 55310-38F20-YL8.

55310-38F30-291

$181.39

4

NUT

09140-10021

$2.03

5

WASHER

09164-18004

$3.76

6

NUT, HUB | %F.NO.5SAAK46A3X102000

09141-18008

$8.37

6

NUT, HUB | F.NO.5SAAK46A3X102001%

09141-18010

$10.11

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

DISC,FRONT BRAKE | %F.NO.5SAAK46A3X102000 This part replaces 59211-38F00.

59211-38F20

$46.75

9

DISC,FRONT BRAKE | F.NO.5SAAK46A3X102001% This part replaces 59211-38F10.

59211-38F20

$46.75

9

DISC,FRONT BRAKE | MODEL K4/K5/K6/K7

59211-38F20

$46.75

10

BOLT, BRAKE DISC

09106-08155

$3.76

11

COVER, FRONT DISC | MODEL K3 This part replaces 59231-38F00.

59231-38F01

$14.07

11

COVER, FRONT DISC | MODEL K4/K5/K6/K7

59231-38F01

$14.07

12

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

13

TIRE COMP,FRONT | MODEL K3 This part replaces 55110-38F00.

55110-03G20

$541.40

13

TIRE COMP,FRONT | MODEL K4/K5 This part replaces 55110-38F20.

55110-03G20

$541.40

13

TIRE COMP,FRONT | MODEL K6/K7 This part replaces 55110-38F21.

55110-03G20

$541.40

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85
