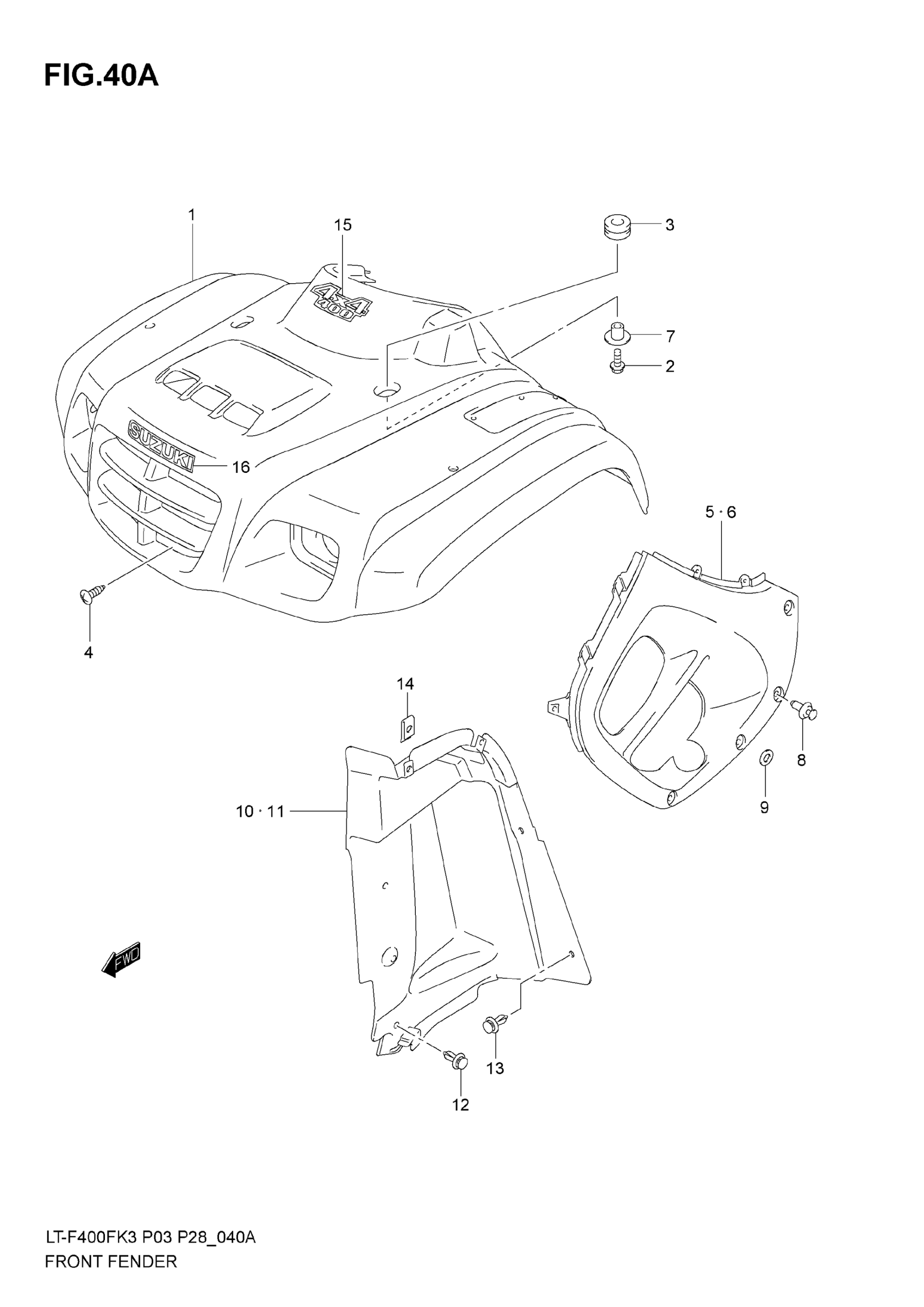

Suzuki LT-F400F (2007) FRONT FENDER (MODEL K4) Diagram

#

Description
Price

1

FENDER,FRONT This part replaces 53111-38F20-YT8.

53111-38F32-YT8

Unavailable

1

FENDER,FRONT This part replaces 53111-38F20-YT9.

53111-38F32-YT9

Unavailable

1

FENDER, FRONT Y This part replaces 53111-38F20-YU1.

53111-38F21-YU1

Unavailable

1

FENDER, FRONT (CAMOUFLAGE)

53111-38FC0-YDH

Unavailable

2

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

3

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$3.77

4

SCREW, FRONT LOWER

09139-06083

$2.24

5

COVER, SIDE RH (BLACK)

53112-38F10-291

$58.19

6

COVER, SIDE LH (BLACK)

53122-38F10-291

$30.61

7

SPACER

09169-06074

$7.49

8

CLIP, INNER

09409-07333

$2.29

9

WASHER, FOOTREST SIDE This part replaces 53341-38F00.

53341-38F01

$2.63

10

MUD FLAP,FENDER This part replaces 53411-38F01.

53411-38F02

$51.30

11

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

Unavailable

12

CLIP, FRONT

09409-08335

$2.44

13

CLIP, SIDE

09409-07333

$2.29

14

NUT, INNER

09148-05038

$1.97

15

EMBLEM, FRONT

68151-38F10-MV9

Unavailable

15

EMBLEM, FRONT | FOR YDH

68151-38FB0-AWV

Unavailable

16

EMBLEM, FRONT LOWER (SILVER)

68171-38F00-20H

$14.71

16

EMBLEM, FRONT LOWER (SILVER) | FOR YDH

68171-38FA0-20H

Unavailable
