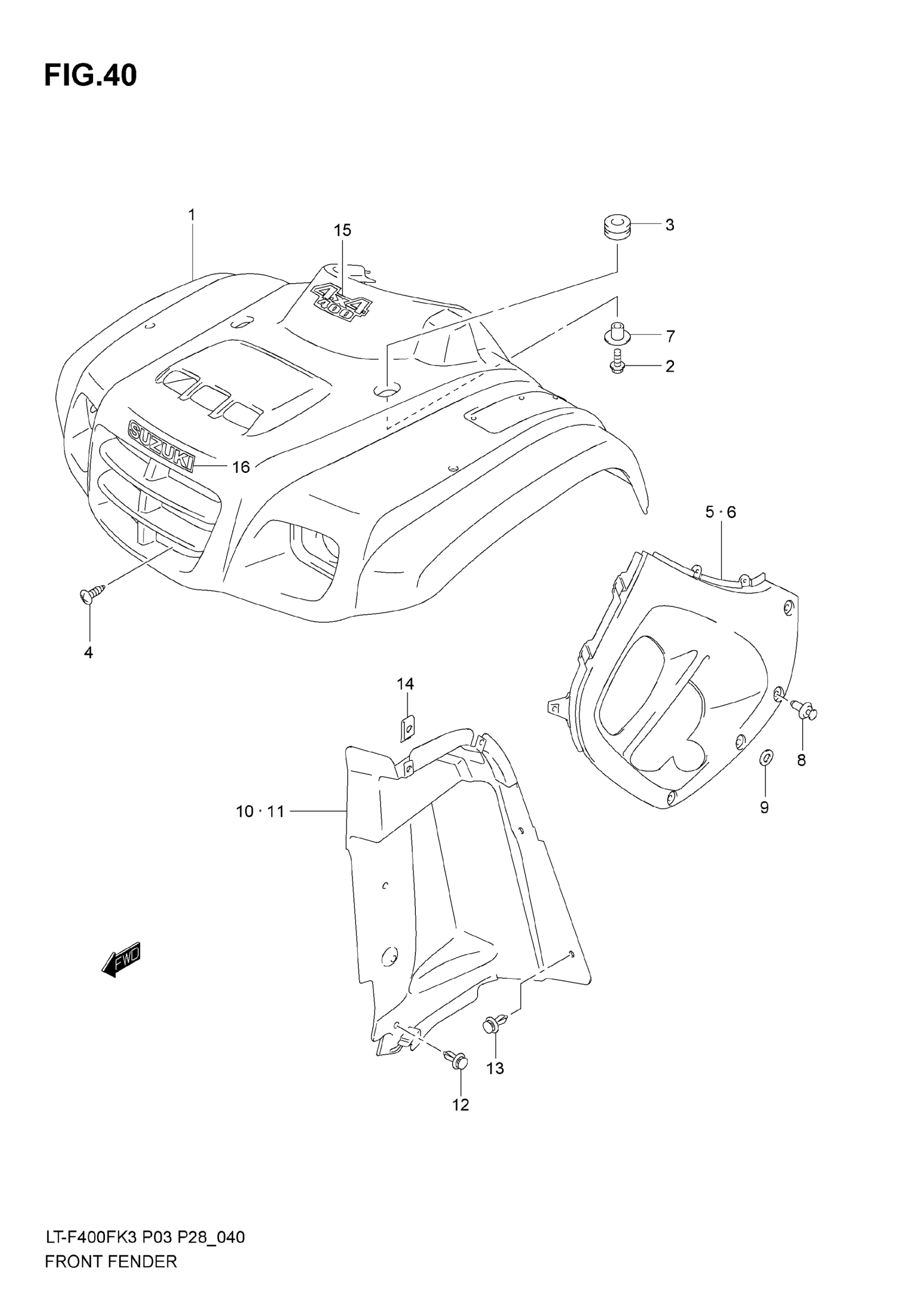

Suzuki LT-F400F (2007) FRONT FENDER (MODEL K3) Diagram

#

Description
Price

1

FENDER,FRONT | %F.NO.5SAAK46A3X102000 This part replaces 53111-38F00-YT8.

53111-38F32-YT8

Unavailable

1

FENDER,FRONT | F.NO.5SAAK46A3X102001% This part replaces 53111-38F20-YT8.

53111-38F32-YT8

Unavailable

1

FENDER,FRONT | %F.NO.5SAAK46A3X102000 This part replaces 53111-38F00-YT9.

53111-38F32-YT9

Unavailable

1

FENDER,FRONT | F.NO.5SAAK46A3X102001% This part replaces 53111-38F20-YT9.

53111-38F32-YT9

Unavailable

2

BOLT | %F.NO.5SAAK46A3X102000 This part replaces 01550-06303.

01550-0630A

$2.31

2

BOLT | F.NO.5SAAK46A3X102001% This part replaces 01550-06253.

01550-0625A

$1.97

3

CUSHION | %F.NO.5SAAK46A3X102000

53145-38F00

$7.12

3

CUSHION (11.5X32X12.2) | F.NO.5SAAK46A3X102001% This part replaces 09320-11019.

09320-11021

$3.77

4

SCREW, FRONT LOWER

09139-06083

$2.24

5

COVER, SIDE RH (BLACK)

53112-38F10-291

$58.19

6

COVER, SIDE LH (BLACK)

53122-38F10-291

$30.61

7

SPACER | %F.NO.5SAAK46A3X102000 This part replaces 53275-38F00.

53275-38F0V

$14.47

7

SPACER | F.NO.5SAAK46A3X102001%

09169-06074

$7.49

8

CLIP, INNER

09409-07333

$2.29

9

WASHER, FOOTREST SIDE This part replaces 53341-38F00.

53341-38F01

$2.63

10

MUD FLAP,FENDER This part replaces 53411-38F00.

53411-38F02

$51.30

11

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

Unavailable

12

CLIP, FRONT

09409-08335

$2.44

13

CLIP, SIDE

09409-07333

$2.29

14

NUT, INNER

09148-05038

$1.97

15

EMBLEM, FRONT

68151-38F10-JY5

Unavailable

16

EMBLEM, FRONT LOWER | FOR YT8

68174-35B00-HV6

$14.63

16

EMBLEM, FRONT LOWER | FOR YT9

68174-35B00-HV5

Unavailable
