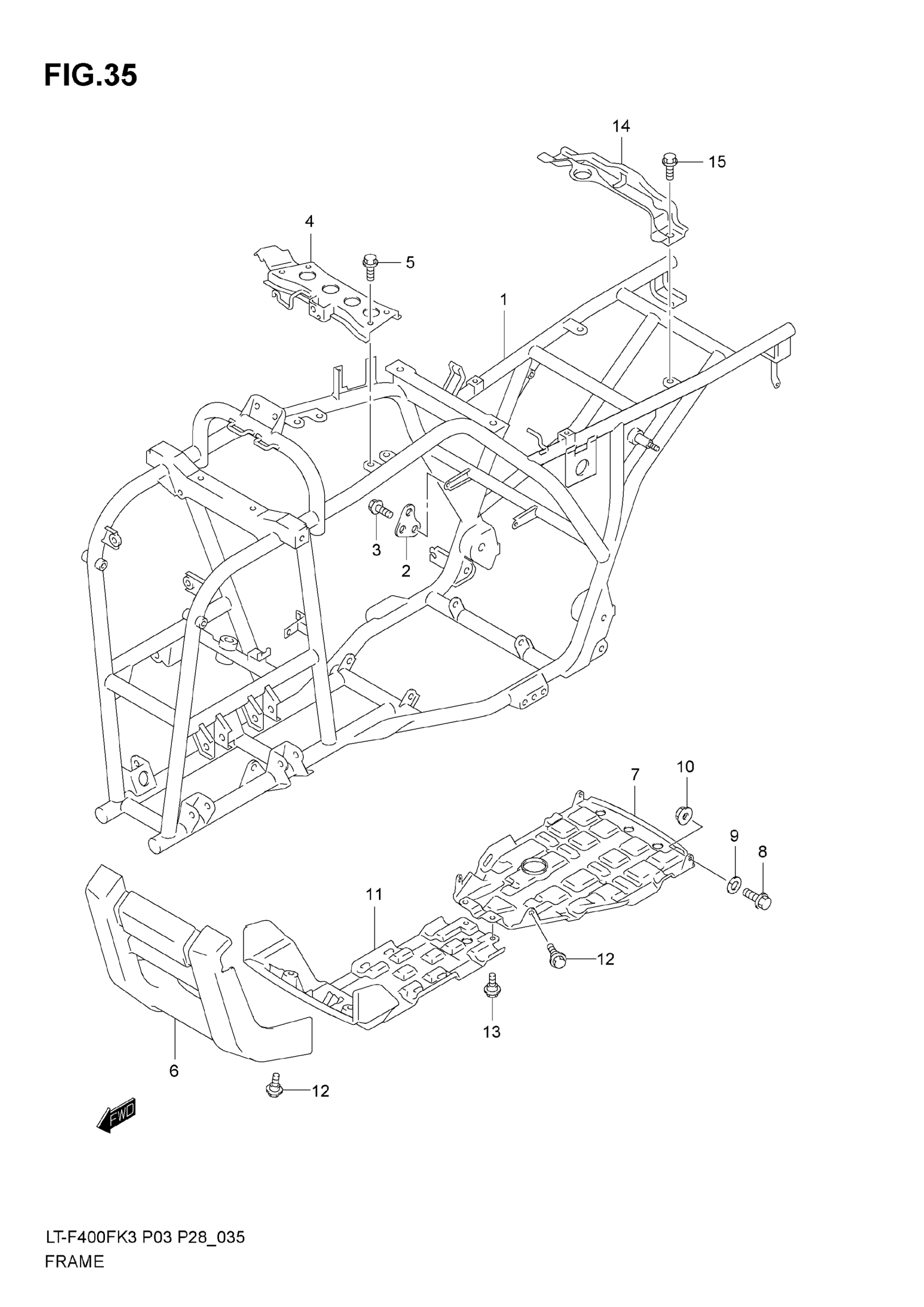

Suzuki LT-F400F (2007) FRAME Diagram

#

Description
Price

1

FRAME COMP, MT | %F.NO.5SAAK46A3X102000 This part replaces 41100-38F30-019.

41100-38FF1-019

Unavailable

1

FRAME COMP, MT | F.NO.5SAAK46A3X102001% This part replaces 41100-38FB0-019.

41100-38FF1-019

Unavailable

1

FRAME COMP, MT | MODEL K5 This part replaces 41100-38FB1-019.

41100-38FF1-019

Unavailable

1

FRAME COMP, MT | MODEL K6/K7 This part replaces 41100-38FF0-019.

41100-38FF1-019

Unavailable

2

PLATE, ENG MTG REAR RH | %F.NO.5SAAK46A3X102000 This part replaces 41981-38F00.

41981-38FA0

$3.93

2

PLATE, ENGINE MOUNT REAR RH | F.NO.5SAAK46A3X102001%

41981-38FA0

$3.93

3

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

4

BRACKET, ENGINE MOUNT UPPER | %F.NO.5SAAK46A3X102000

41990-38F00

Unavailable

4

BRACKET, ENGINE MOUNT UPPER | F.NO.5SAAK46A3X102001%

41990-38F10

$28.72

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

PROTECTOR, FRONT | MODEL K3/K4 This part replaces 42521-38F00.

42521-38F10

Unavailable

6

PROTECTOR, FRONT | MODEL K5/K6/K7

42521-38F10

Unavailable

7

PROTECTOR,ENGINE | MODEL K3/K4/K5/K6 This part replaces 42511-38F00.

42511-38F04

$28.32

7

PROTECTOR,ENGINE | MODEL K7 This part replaces 42511-38F01.

42511-38F04

$28.32

8

BOLT (6X12) | MODEL K3/K4/K5 This part replaces 09111-06063.

09111-06085

$4.54

8

BOLT, ENGINE PROTECTOR | MODEL K6/K7

09111-06085

$4.54

9

WASHER | MODEL K3/K4/K5/K6

09160-06109

$1.49

9

WASHER | MODEL K7

09160-06156

$2.25

10

NUT This part replaces 08319-31063.

08319-3106A

$2.03

11

PROTECTOR, MIDDLE

42561-38F00

$35.07

12

BOLT (6X12) | MODEL K3/K4/K5 This part replaces 09111-06063.

09111-06085

$4.54

12

SCREW, PROTECTOR | MODEL K6/K7

09111-06085

$4.54

13

BOLT, PROTECTOR

09111-06072

$2.03

14

PLATE, BATTERY | %F.NO.5SAAK46A3X102000 This part replaces 41560-38F10.

41560-38FA0

$9.94

14

PLATE, BATTERY | F.NO.5SAAK46A3X102001%

41560-38FA0

$9.94

15

BOLT This part replaces 01550-08203.

01550-0820A

$2.23
