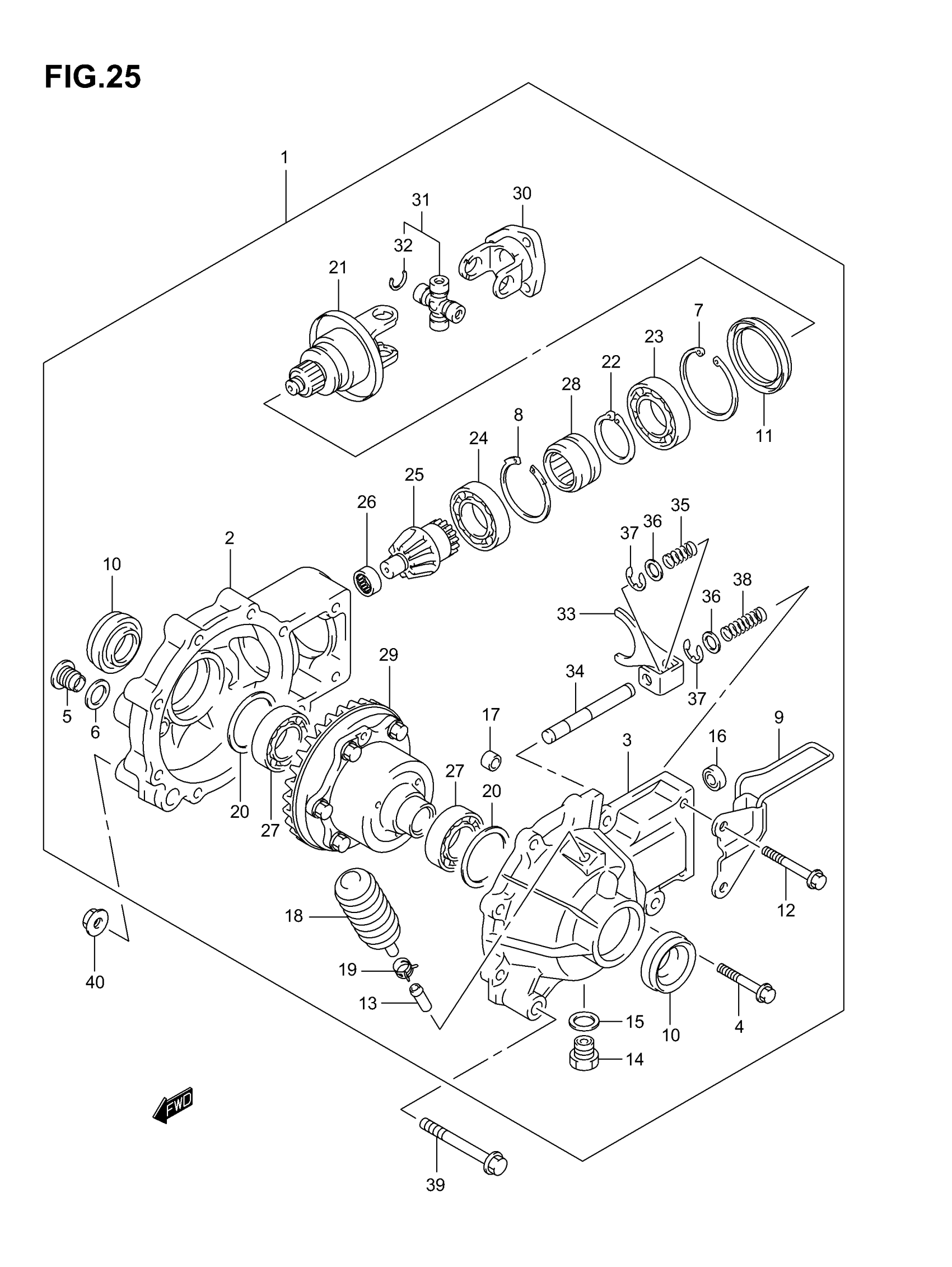

Suzuki LT-F400F (2007) FINAL BEVEL GEAR (FRONT)(MODEL K3/K4,%F.NO.5SAAK46A3X102000) Diagram

CASE ASSY, FR DIFFERENTIAL | Includes Item(s) 2 - 38

27400-38F10

Unavailable

HOUSING, FINAL DRIVE FR

27451-38FA0

Unavailable

COVER, FINAL DRIVE FR This part replaces 27461-38FA0.

27461-38FA1

Unavailable

BOLT (8X25) This part replaces 27401-38FA0.

27401-38FA1

Unavailable

PLUG

27409-38FA0

$3.40

.WASHER This part replaces 27407-38FA0.

27407-31GA0

$9.15

RING SNAP

27403-38FA0

$4.82

RING SNAP

27403-38FB0

$4.82

BRACKET ASSY, SHIFT

27951-38FA0

$16.95

OIL SEAL

27406-38FA0

$15.61

OIL SEAL

27406-38FB0

$9.81

BOLT (8X50)

27401-38FB0

$3.17

PIPE, BRTHR

09364-08003

$3.15

PLUG

27409-38FB0

Unavailable

WASHER

27407-38FB0

$2.78

OIL SEAL

27406-38FC0

Unavailable

COLLAR

27404-38FA0

Unavailable

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

CLIP

09401-08411

$1.78

SHIM SET | T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45

27445-38FA0

$114.32

YOKE ASSY This part replaces 27130-38FA0.

27130-03GA0

$113.25

SNAP RING

27403-38FC0

$3.27

BEARING

27405-38FA0

$28.97

BEARING

27405-38FB0

$30.47

PINION, DRIVE

27311-38FA0

Unavailable

BEARING

27405-38FC0

$8.53

BEARING

27405-38FD0

$15.88

SLEEVE This part replaces 27371-38FA0.

27371-31GA0

$76.35

GEAR ASSY

27320-38FA0

Unavailable

YOKE, PROP SHAFT JOINT RR This part replaces 27161-38F20.

27161-38F11

$167.68

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

$59.54

CIRCLIP

09380-20016

$2.32

FORK, SHIFT

27941-38FA0

$15.10

ROD, SHIFT

27921-38FA0

Unavailable

SPRING, SHIFT

27402-38FA0

$2.80

WASHER

27407-38FC0

$3.18

E RING

27403-38FD0

$2.57

SPRING, RETURN

27402-38FB0

$3.18

BOLT, FR DIFFERENTIAL

09103-10148

$6.94

NUT, FR DIFFERENTIAL

08319-31107

$2.73
