2007 Suzuki LT-F400F Crankcase Cover Diagram

← All diagrams

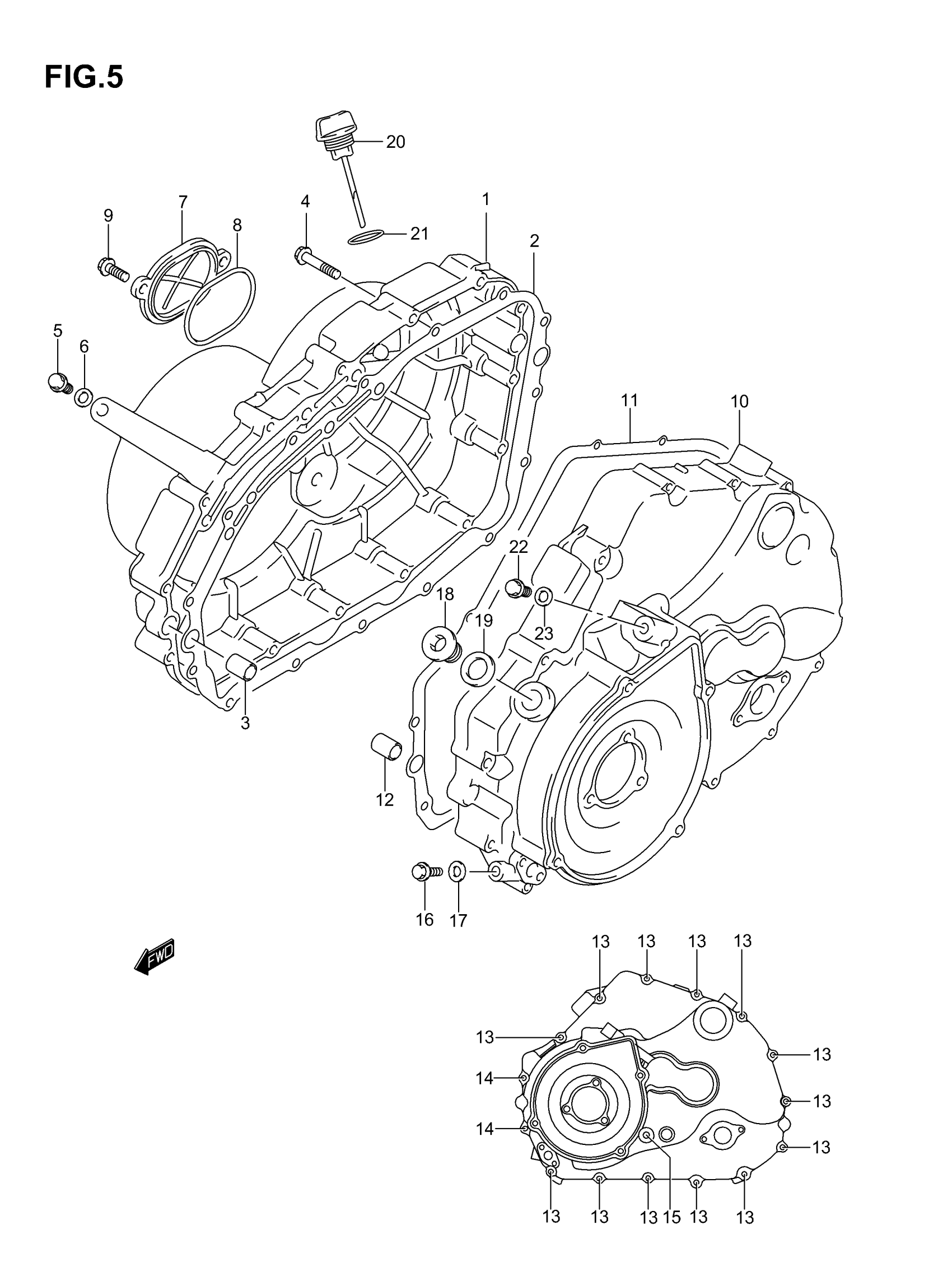

Find the part on the Crankcase Cover diagram for your 2007 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F400F Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-38F11

1
Out of stock

2

GASKET

11482-38F10

1
Out of stock

3

PIN

04211-13189

2
Out of stock

4

BOLT This part replaces 01547-06403.

01547-0640B

15
Out of stock

5

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

6

GASKET, OIL GALLERY PLUG

09168-06023

1
Out of stock

7

CAP,INSPECTION

11175-47D00

1
Out of stock

8

.O RING,INSPECTION CAP

11177-14D01

1
Out of stock

9

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

10

COVER, MAGNETO

11351-38F10

1
Out of stock

11

GASKET

11483-38F10

1
Out of stock

12

PIN

04211-13189

2
Out of stock

13

BOLT This part replaces 01547-06403.

01547-0640B

13
Out of stock

14

BOLT This part replaces 01547-06553.

01547-0655B

2
Out of stock

15

BOLT, (L:140)

09103-08040

1
Out of stock

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

17

GASKET

09168-08029

1
Out of stock

18

PLUG, T.D.C CHECK

09248-16012

1
Out of stock

19

GASKET, T.D.C CHECK

09168-16002

1
Out of stock

20

GAUGE,OIL LEVEL

11971-38F00

1
Out of stock

21

O RING, OIL LEVEL GAUGE

09280-17003

1
Out of stock

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

23

GASKET, OIL GALLEY PLUG

09168-06023

1
Out of stock
