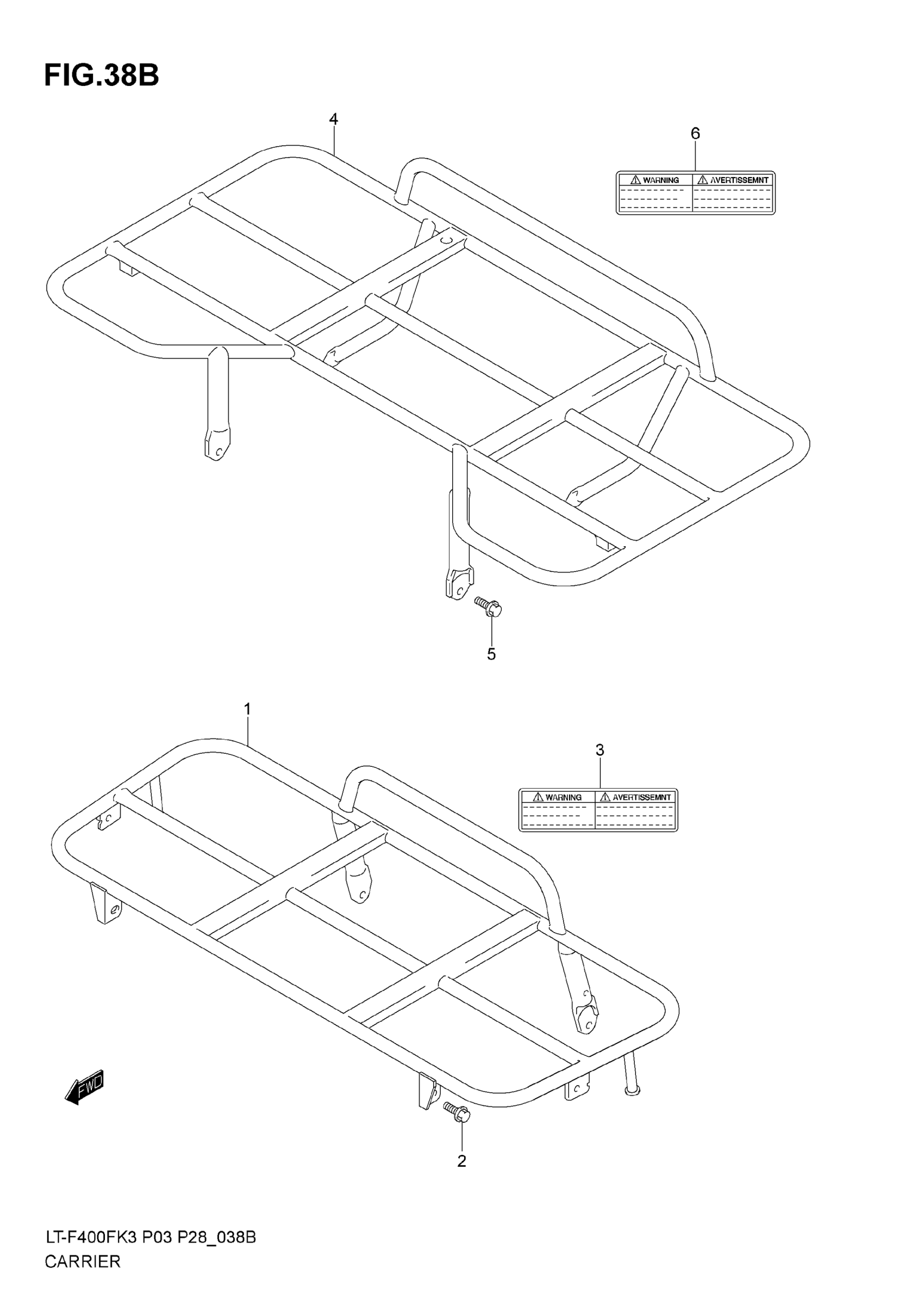

Suzuki LT-F400F (2007) CARRIER (MODEL K4/K5/K6/K7) Diagram

#

Description
Price

1

CARRIER, FRONT (BLACK) | MODEL K4 P33 This part replaces 46410-38FA0-019.

46400-38FA0-019

Unavailable

1

CARRIER, FRONT (BLACK) | MODEL K5/K6 P33

46400-38FA0-019

Unavailable

1

CARRIER, FRONT (BLACK) | MODEL K4 P28 This part replaces 46410-38FB0-019.

46400-38FB0-019

$343.93

1

CARRIER, FRONT (BLACK) | MODEL K5/K6 P28

46400-38FB0-019

$343.93

1

CARRIER, FRONT (BLACK) | MODEL K7

46400-38FD0-019

$374.62

2

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

3

LABEL,FRONT CAR | P33 This part replaces 68381-19B00.

68381-19B01

$5.42

3

LABEL,WARNING F | P28 This part replaces 68381-19B20.

68381-19B21

$8.03

4

CARRIER, REAR (BLACK) | MODEL K4 P33 This part replaces 46310-38FA0-019.

46300-38FA0-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL K5/K6 P33

46300-38FA0-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL K4 P28 This part replaces 46310-38FB0-019.

46300-38FB0-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL K5/K6 P28

46300-38FB0-019

Unavailable

4

CARRIER, REAR (BLACK) | MODEL K7

46300-38FD0-019

Unavailable

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

LABEL,REAR CARR | P33 This part replaces 68391-19B00.

68391-19B01

$5.60

6

LABEL, REAR | P28

68391-19B20

Unavailable
