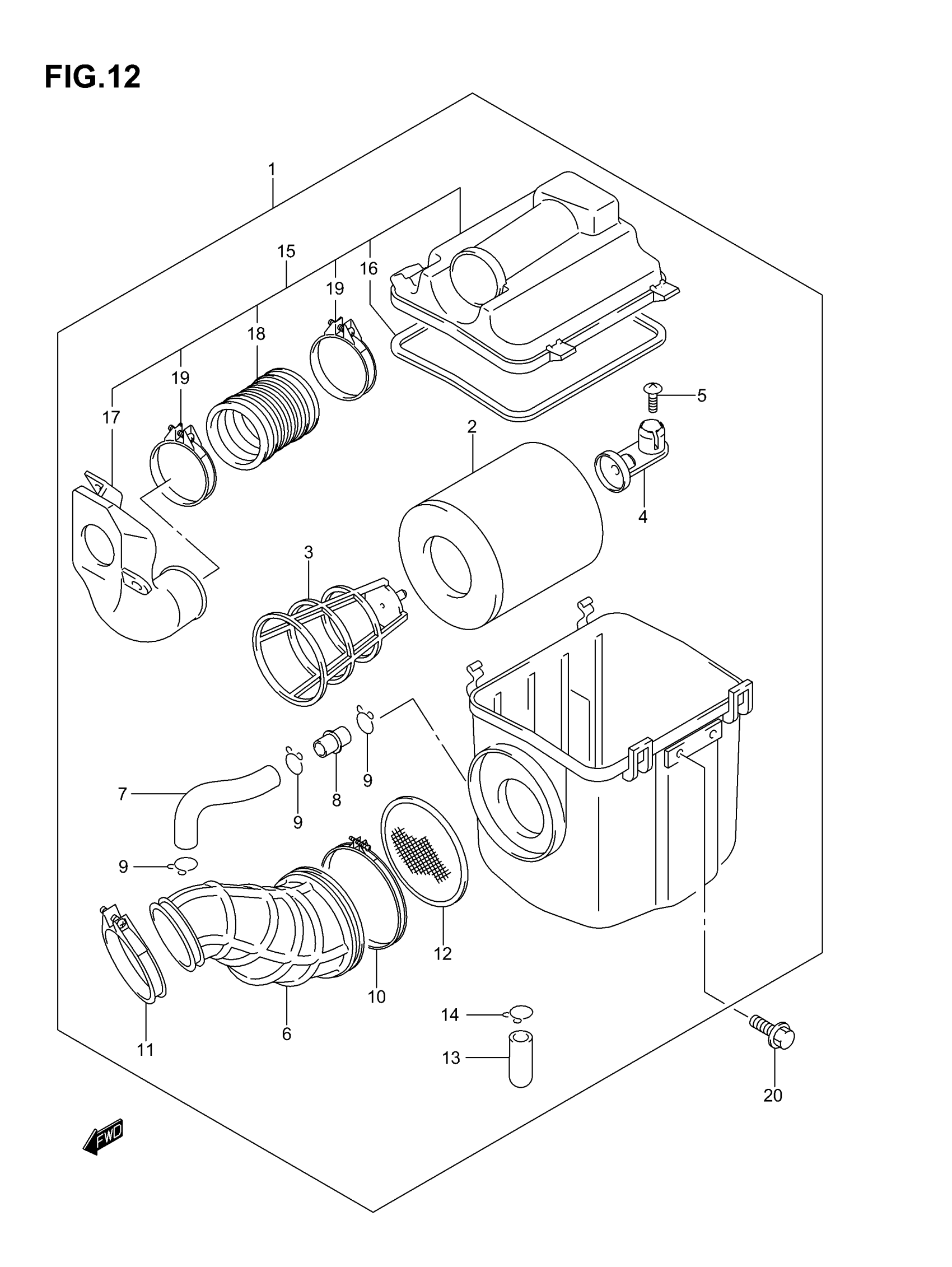

Suzuki LT-F400F (2007) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | %F.NO.5SAAK46A3X102000 This part replaces 13700-38F00.

13700-38F10

$154.95

1

CLEANER ASSY, AIR | F.NO.5SAAK46A3X102001%

13700-38F10

$154.95

1

CLEANER ASSY, AIR | MODEL K4/K5/K6/K7; Includes Item(s) 2 - 19

13700-38F20

$157.85

2

FILTER | MODEL K3

13780-03G00

$27.51

2

FILTER | MODEL K4/K5/K6/K7

13780-07G00

$32.07

3

HOLDER

13791-03G00

$8.73

4

STOPPER, HOLDER

13792-03G00

$7.19

5

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

6

TUBE,OUTLET This part replaces 13881-38F00.

13881-38F01

$50.50

7

TUBE,BREATHER | %F.NO.5SAAK46A3 102000 This part replaces 13853-38F00.

13853-38F01

Unavailable

7

TUBE, BREATHER | F.NO.5SAAK46A3X102001%

13853-38F10

$11.38

8

JOINT 2ND AIR CLEANER HOSE | %F.NO.5SAAK46A3 102000

13888-19B00

$8.28

9

CLIP | %F.NO.5SAAK46A3 102000

09401-14301

$2.35

9

CLIP | F.NO.5SAAK46A3X102001%

09401-14301

$2.35

10

.CLAMP, OUTLET TUBE | %F.NO.5SAAK46A3X102000

13826-14D01

$9.32

10

CLAMP (CLEANER SIDE) | F.NO.5SAAK46A3X102001%

13826-38F10

$14.17

11

CLAMP | %F.NO.5SAAK46A3X102000 This part replaces 09402-56208.

09402-56901

$5.36

11

CLAMP (CARBURETOR SIDE) | F.NO.5SAAK46A3X102001%

13826-38F00

$9.53

12

.TRAP, FLAME

13810-03G00

$11.87

13

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

14

CLIP

09401-14301

$2.35

15

INLET,AIR CLEAN | %F.NO.5SAAK46A3X102000 This part replaces 13890-38F01.

13890-38F02

Unavailable

15

INLET, AIR CLEANER | F.NO.5SAAK46A3X102001%

13890-38F10

Unavailable

16

GASKET

13746-03G00

$4.72

17

DUCT, INLET

13896-38F00

$43.33

18

..JOINT,INLET This part replaces 13891-03G00.

13891-03G01

$13.43

19

..CLAMP | %F.NO.5SAAK46A3X102000

09402-60208

$5.11

19

CLAMP, DUCT SIDE | F.NO.5SAAK46A3X102001%

13826-38F20

$9.46

19

..CLAMP | F.NO.5SAAK46A3X102001%

09402-60208

$5.11

20

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97
