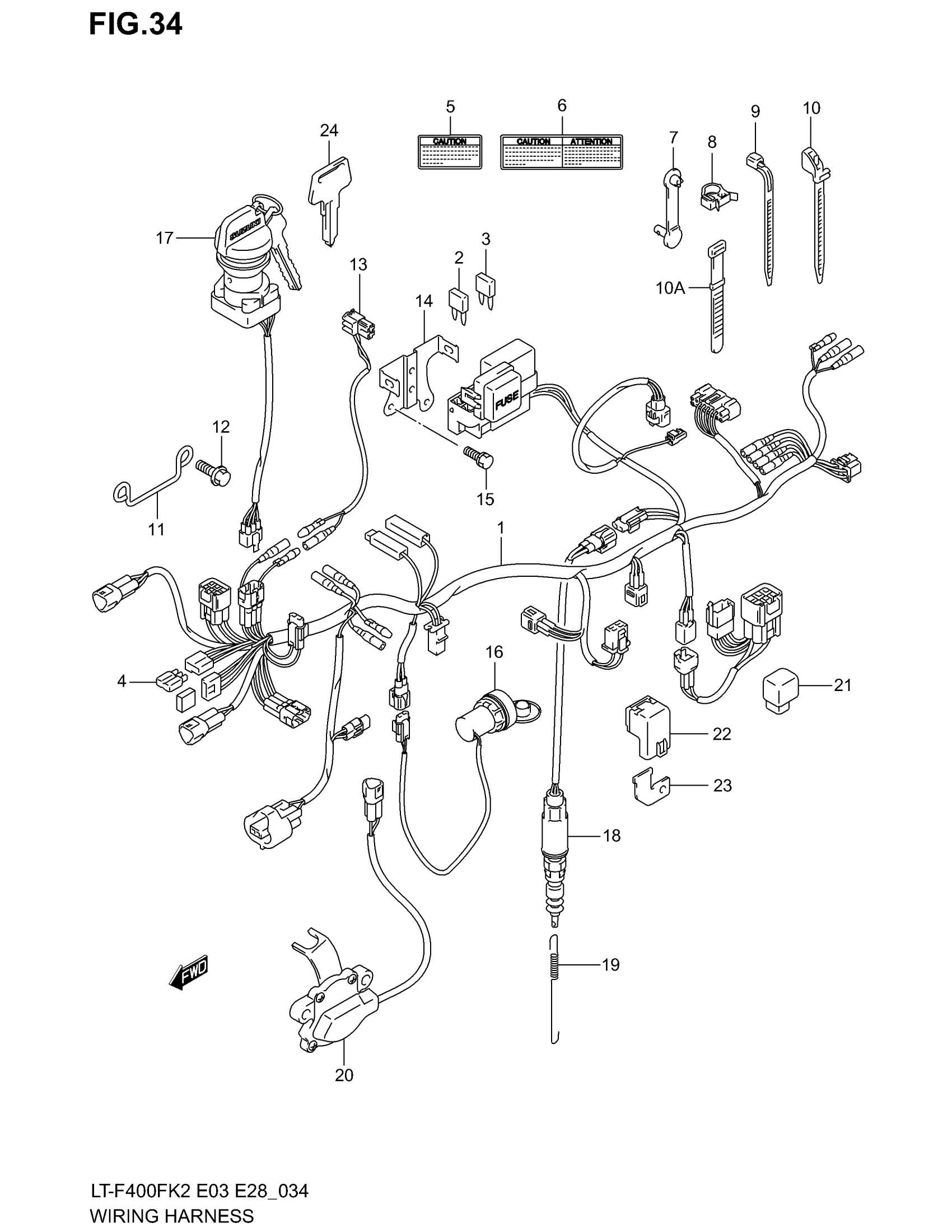

Suzuki LT-F400F (2002) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS WIRING | Includes Item(s) 2 - 4

36610-38F20

Unavailable

2

.FUSE (5A)

09481-05501

Unavailable

3

FUSE (10A)

09481-10501

$2.06

4

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

5

LABEL, CAUTION MAX AMP

38852-09F21

$7.53

6

LABEL, CAUTSON MAX AMP | E28

38852-09FB1

Unavailable

7

CLAMP, WIRING HARNESS

36651-48E00

$3.25

8

CLAMP

09403-20403

$3.58

8

CLAMP

09403-25401

Unavailable

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP

09407-12407

Unavailable

10A

CLAMP

09407-12402

$3.04

11

GUIDE, WIRING HARNESS

36619-38F00

Unavailable

12

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

13

WIRE,BRAKE SW L This part replaces 36856-35B00.

36856-35B01

$8.60

14

BRACKET,FUSE BOX

36744-38F00

$11.37

15

BOLT (5X10)

09117-05001

Unavailable

16

TERMINAL, POWER SOURCE

38850-09F00

Unavailable

17

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$82.20

18

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

$115.27

19

SPRING, STOP LAMP

09443-06016

$3.30

20

SWITCH ASSY, REVERSE

37600-38F00

$109.85

21

RELAY,NEUTRAL START

38730-09F00

$46.55

22

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

23

BRACKET, GEAR IN START

38741-09F00

Unavailable

24

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

24

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

24

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

24

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
