Description

Price

1

TIE ROD, STEERING

51281-38F00

$32.00

2

KNUCKLE, STEERING RH

51231-03G10

Unavailable

3

KNUCKLE, STEERING LH

51241-03G10

$81.57

4

END,KNUCKLE STEERING

51210-38F00

$65.76

5

ROD, END RH This part replaces 51260-41B01.

51260-38F10

$81.22

6

ROD, END LH This part replaces 51270-41B01.

51270-38F10

$81.22

7

NUT, TIE ROD RH

09140-10043

$2.68

8

NUT This part replaces 08319-31103.

08319-3110A

$2.73

9

NUT, TIE ROD LH

09140-10027

$1.49

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

BOLT, KNUCKLE (10X30)

51233-09F00

$5.62

12

DUST SEAL, INNER (38X55X8)

09283-38012

$14.74

13

DUST SEAL, OUTER (38X55X7.5)

09283-38022

$13.01

14

BEARING

08123-60067

$29.13

15

SPACER,HUB BEARING

54731-03G00

$11.64

16

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.57

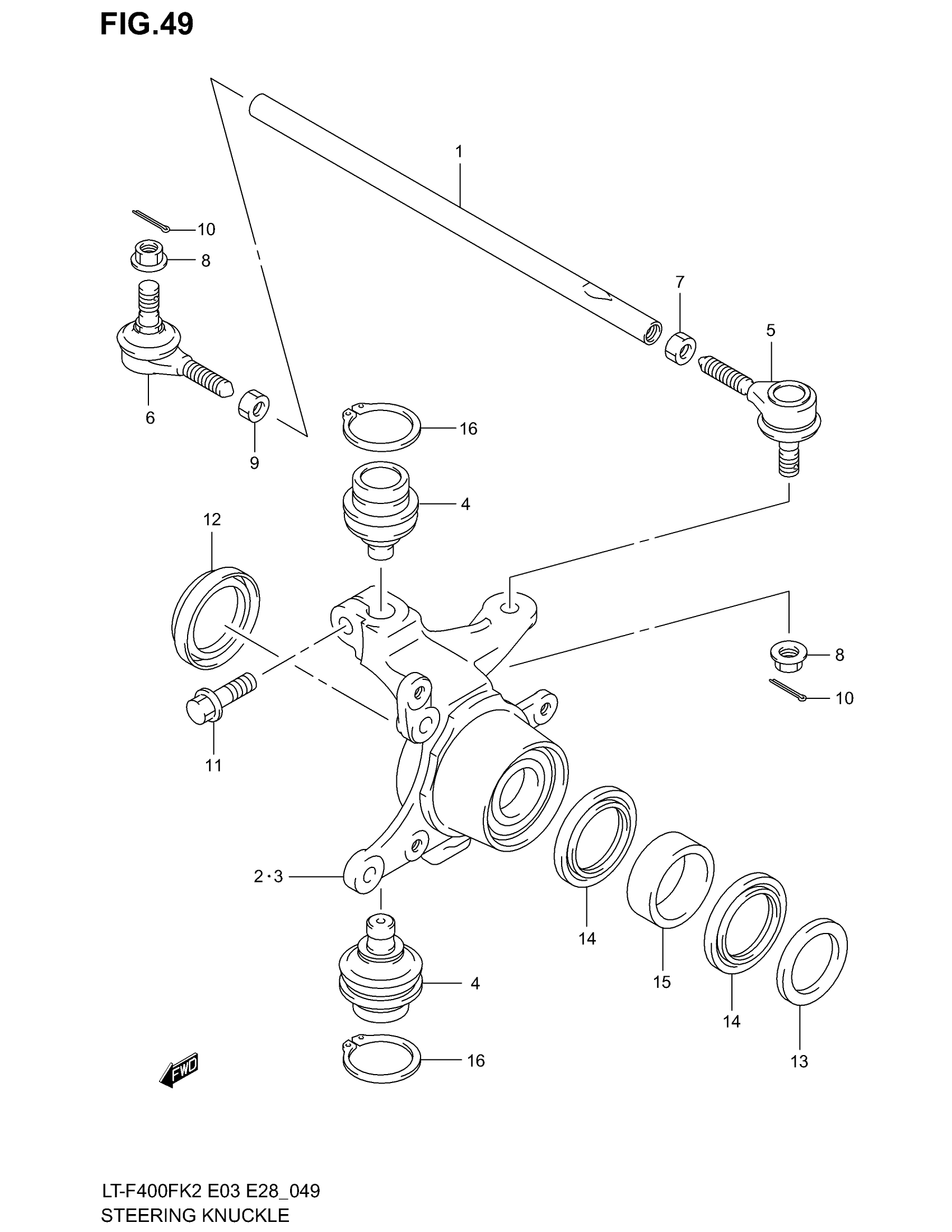

Suzuki LT-F400F (2002) STEERING KNUCKLE Diagram
