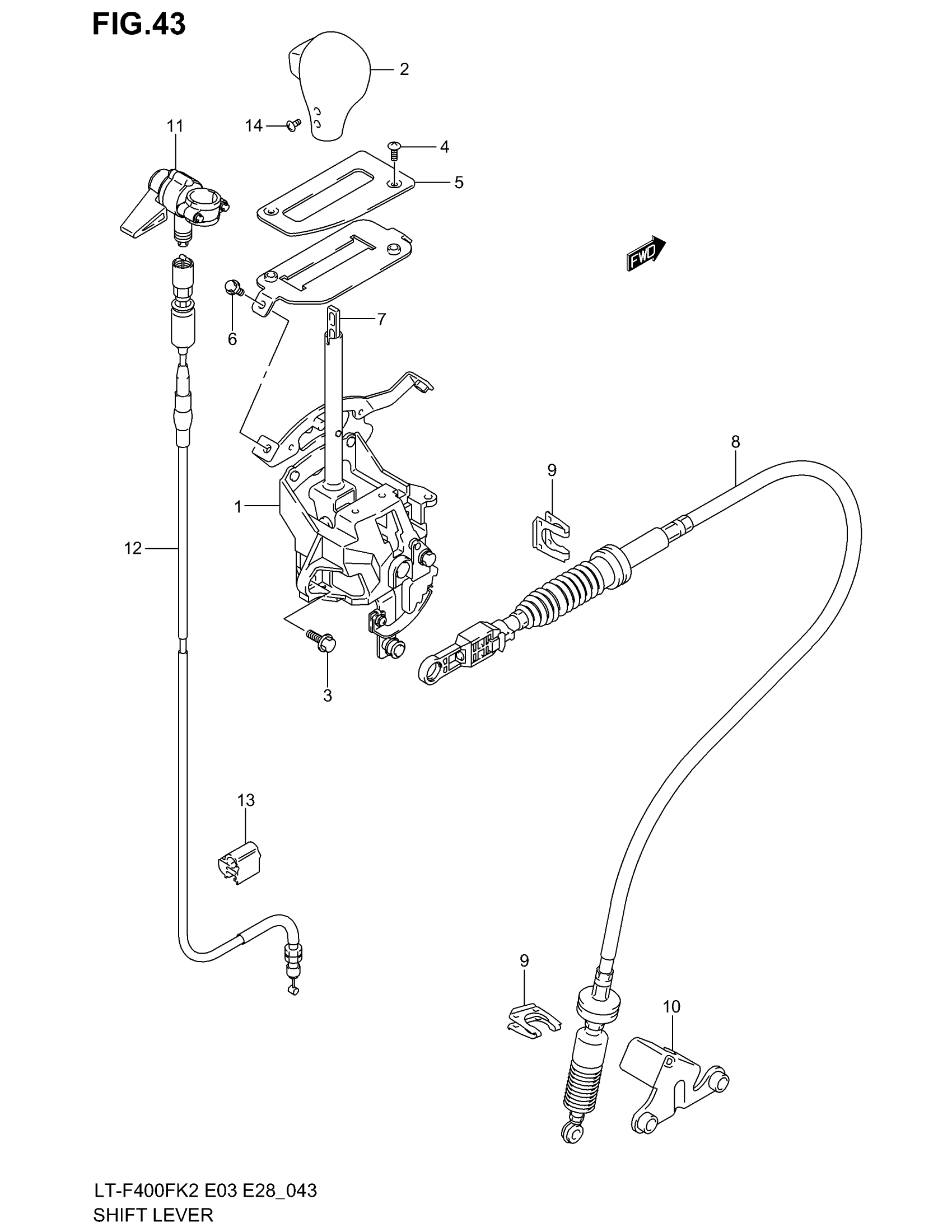

Suzuki LT-F400F (2002) SHIFT LEVER Diagram

#

Description
Price

1

LEVER ASSY, TRANSMISSION

57800-38F10

Unavailable

2

KNOB, T/M LEVER This part replaces 57830-38F10.

57830-38F11

$47.20

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

5

PLATE, T/M INDICATOR

57961-38F10

Unavailable

6

SCREW

09139-05032

$1.89

7

ROD, DETENT

57863-38F00

$8.65

8

CABLE,T/M GEAR This part replaces 58680-38F10.

58680-38F11

$87.82

9

CLIP

28375-78A00

$5.17

10

PLATE,T/M CABLE This part replaces 58620-38F10.

58620-38F1V

Unavailable

11

LEVER, TRANSFER This part replaces 57920-38F00.

57920-38F11

$222.47

12

CABLE, TRANSFER SHIFT

58690-38F00

$70.49

13

CLAMP

09403-05406

$2.53
