2002 Suzuki LT-F400F Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2002 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

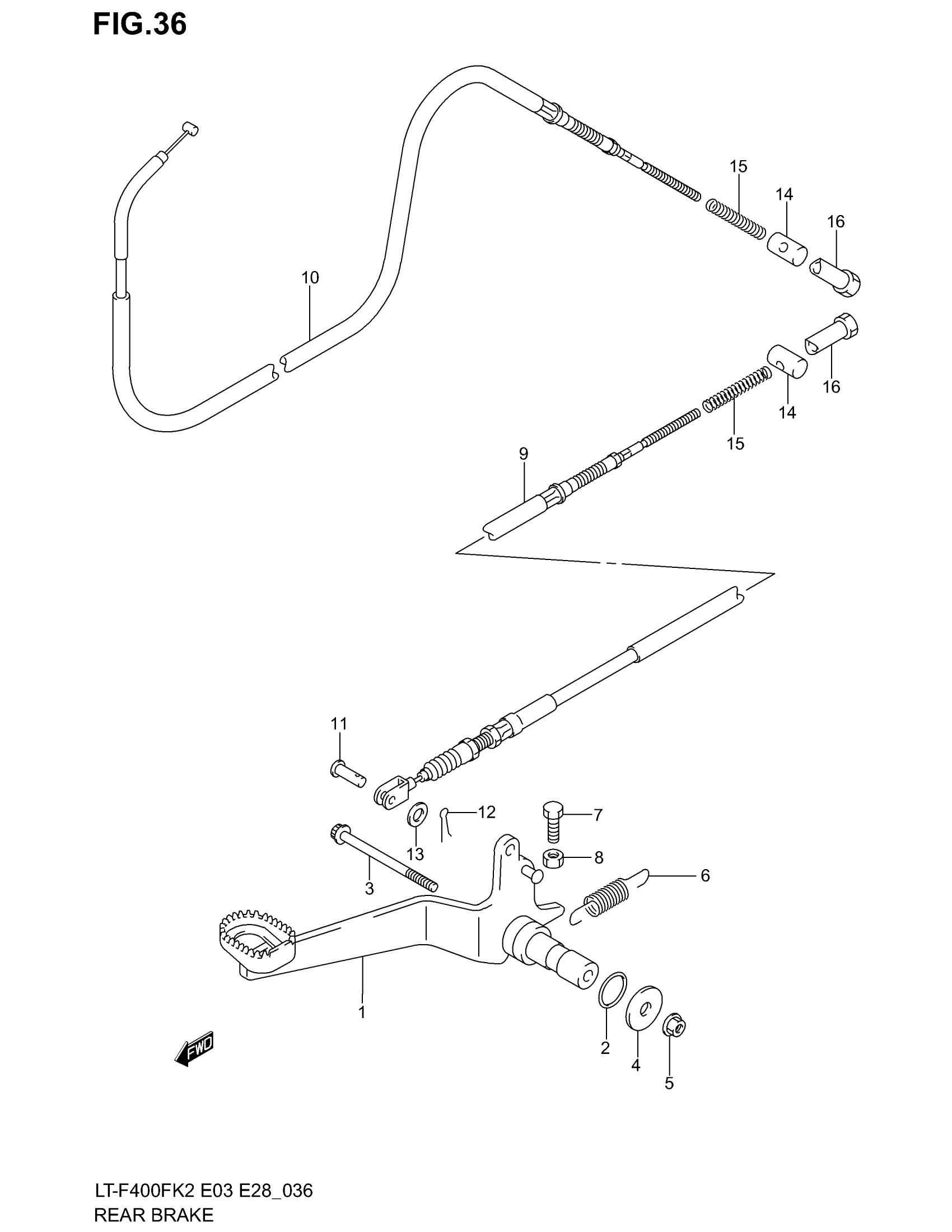

2002 Suzuki LT-F400F Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-38F20

1
Out of stock

2

O RING

09280-17002

2
Out of stock

3

BOLT This part replaces 07120-06653.

07120-0665B

1
Out of stock

4

WASHER

09160-06136

1
Out of stock

5

NUT This part replaces 08319-31063.

08319-3106A

1
Out of stock

6

SPRING, RETURN

09443-12019

1
Out of stock

7

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

8

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

9

1

$77.90

In stock

10

CABLE, REAR BRAKE

58810-38F00

1

$67.09

In stock

11

PIN

09200-05001

2
Out of stock

12

COTTER PIN

09385-06012

2
Out of stock

13

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

14

PIN, ADJUSTER

09209-13006

2
Out of stock

15

2

$2.92

In stock

16

NUT

09150-06012

2

$3.33

In stock
