2002 Suzuki LT-F400F Left Rear Wheel Diagram

← All diagrams

Find the part on the Left Rear Wheel diagram for your 2002 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

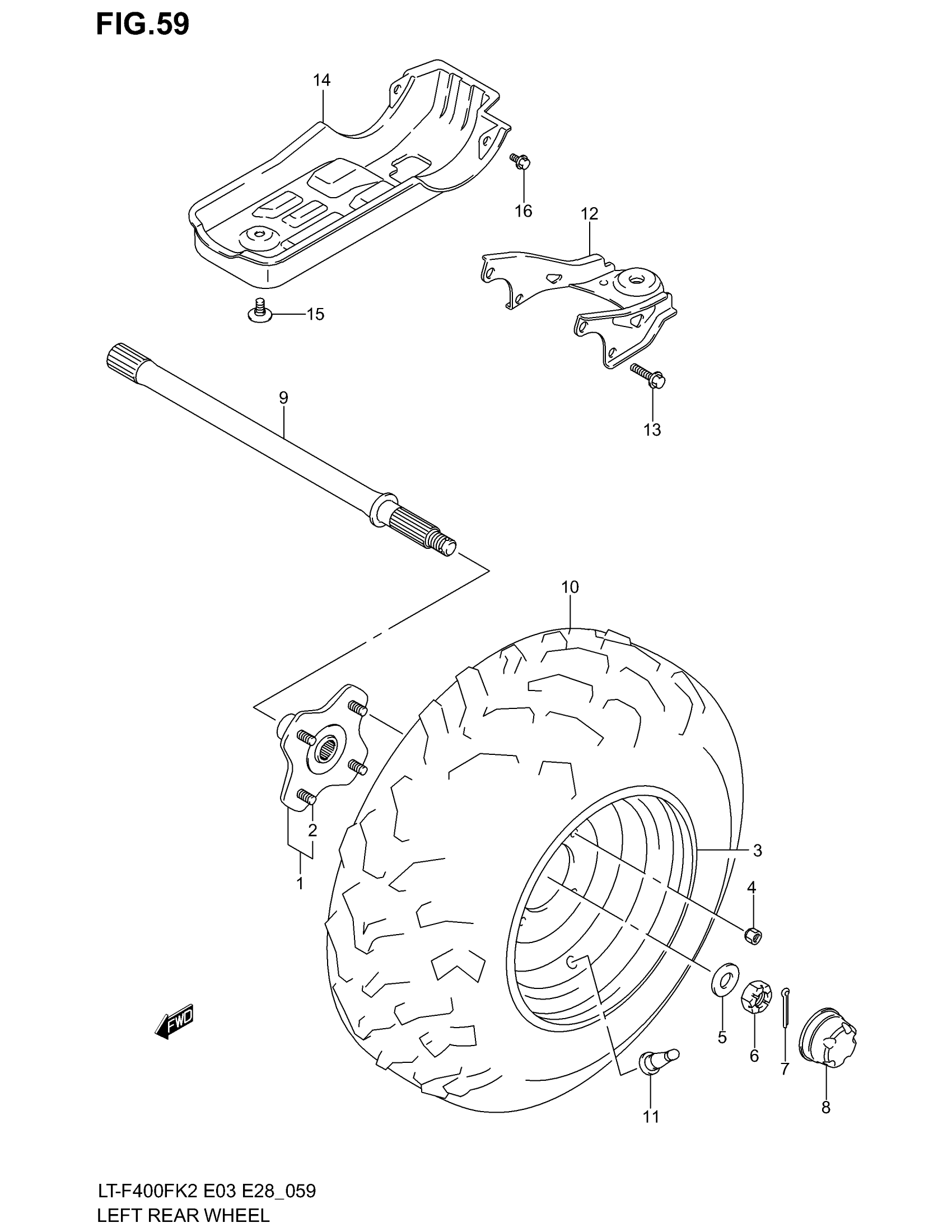

2002 Suzuki LT-F400F Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,REAR,L | Includes Item(s) 2 This part replaces 64110-38F00.

64110-38F30

1
Out of stock

2

4

$2.42

In stock

3

RIM, REAR WHEEL (12X7.5AT) (BLACK) This part replaces 65310-38F00-YL8.

65310-38F40-291

1
Out of stock

4

NUT

09140-10021

4
Out of stock

5

WASHER

09164-18004

1
Out of stock

6

NUT, HUB

09141-18008

1

$8.27

In stock

7

1

$1.47

In stock

8

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

9

AXLE,REAR,L This part replaces 64712-38F10.

64712-38F20

1
Out of stock

10

TIRE,REAR This part replaces 65110-38F00.

65110-03G30

1
Out of stock

11

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

1
Out of stock

12

PLATE,TRAILER TOW This part replaces 95210-38F00.

95210-38F10

1
Out of stock

13

4

$4.53

In stock

14

PROTECTOR,FINAL CASE This part replaces 61391-38F00.

61391-38F11

1
Out of stock

15

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

1
Out of stock

16

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

2
Out of stock
