Description

Price

1

HUB CMPL,FR WHE | Includes Item(s) 2 This part replaces 54110-38F00.

54110-38F20

$119.03

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.32

3

RIM, FRONT WHEEL (12X6.0AT) (BLACK) This part replaces 55310-38F00-YL8.

55310-38F30-291

$175.97

4

NUT

09140-10021

$2.09

5

WASHER

09164-18004

$3.49

6

NUT, HUB

09141-18008

$7.93

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.41

8

CAP,WHEEL CENTER

54725-09F01

$9.53

9

DISC,FRONT BRAKE This part replaces 59211-38F00.

59211-38F20

$44.72

10

BOLT, BRAKE DISC

09106-08155

$3.54

11

COVER, FRONT DISC This part replaces 59231-38F00.

59231-38F01

$11.78

12

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$2.02

13

TIRE COMP,FRONT This part replaces 55110-38F00.

55110-03G20

$689.62

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

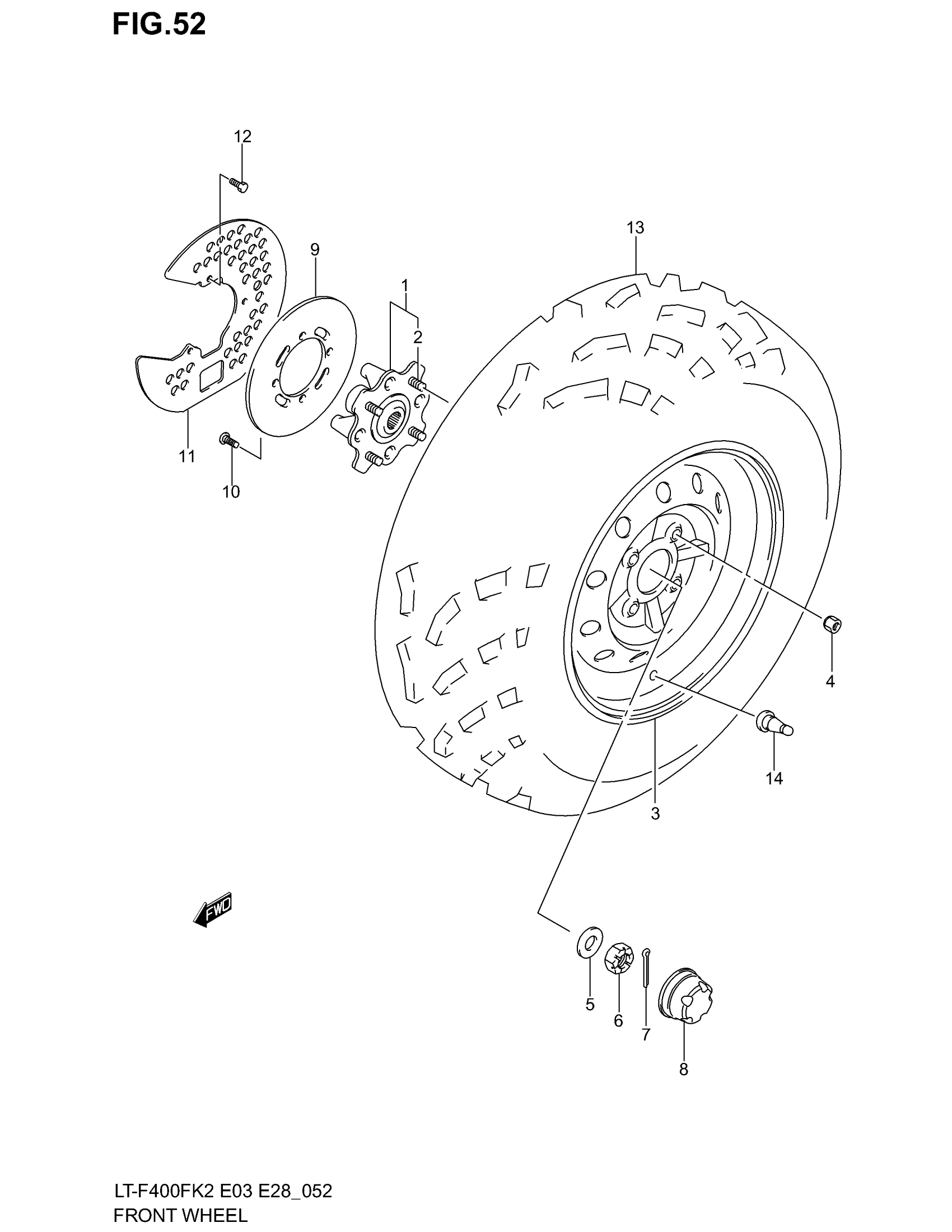

Suzuki LT-F400F (2002) FRONT WHEEL Diagram
