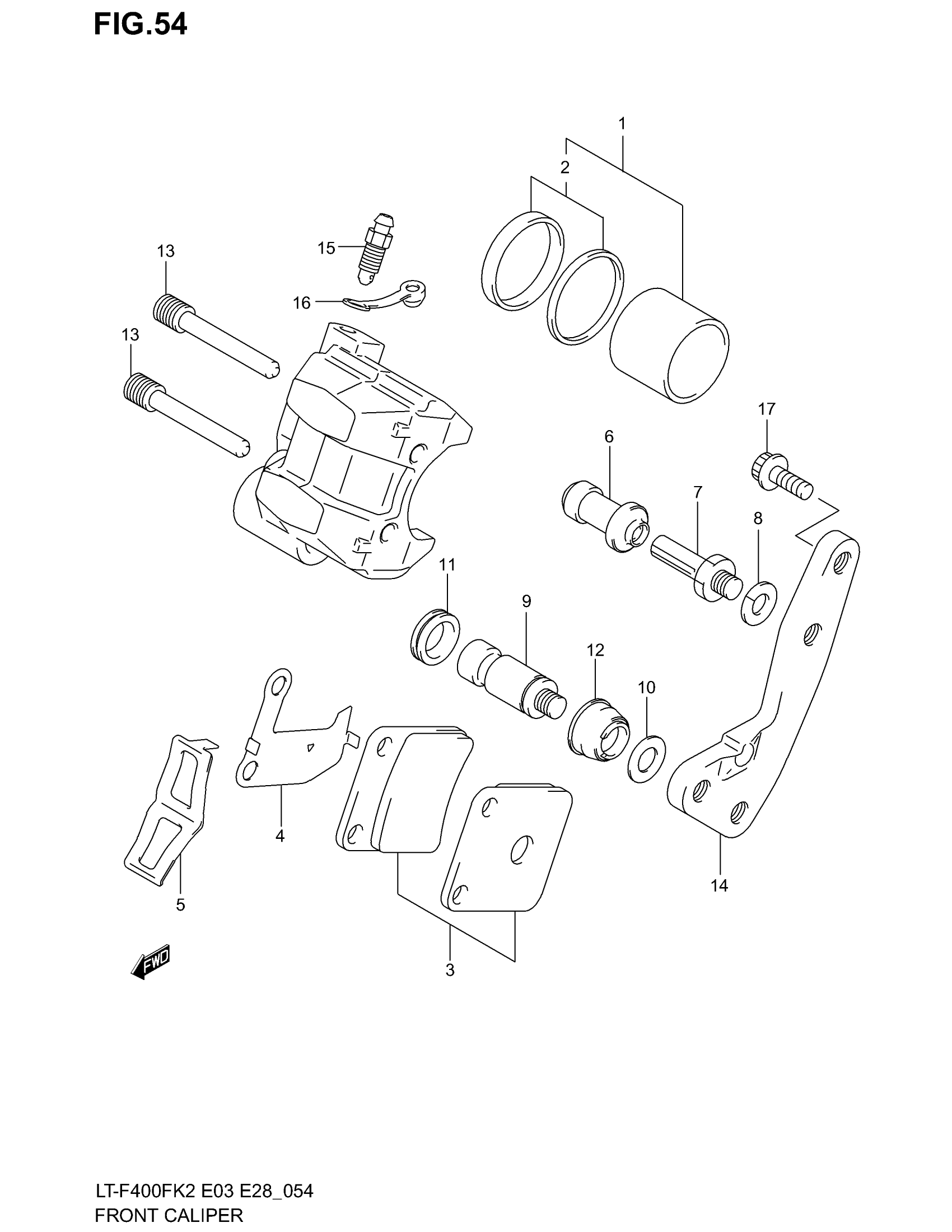

Suzuki LT-F400F (2002) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT RH This part replaces 59100-38F00.

59100-38F30-999

$236.90

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 16 This part replaces 59300-38F00.

59300-38F30-999

$236.90

1

PISTON SET

59100-38850

$30.52

2

SEAL SET, PISTON

59100-38860

$13.77

3

PAD SET

59100-38870

$48.64

4

SHIM, RH

59371-13A00

$9.37

4

SHIM, LH

69372-00B20

$11.02

5

SPRING, PAD

59315-13A00

$11.02

6

BOOT

59386-13A00

$7.95

7

PIN

59382-13A00

$7.69

8

WASHER

59314-13A00

$2.02

9

PIN, SLIDE

59105-38F00

$19.78

10

SPRING

59306-13A00

$3.15

11

SEAL, DUST

59384-13A00

$5.24

12

BOOT

59303-13A00

$5.80

13

PIN

59345-00B20

$14.20

14

BRACKET, RH

59151-38F00

$53.50

14

BRACKET, LH

59351-38F00

$53.50

15

BLEEDER

59121-01A00

$8.73

16

CAP

59122-01A00

$4.34

17

BOLT This part replaces 07120-08163.

07120-0816A

$3.05
